Product Overview
Vertiv | Liebert CRD10 | User Manual 4

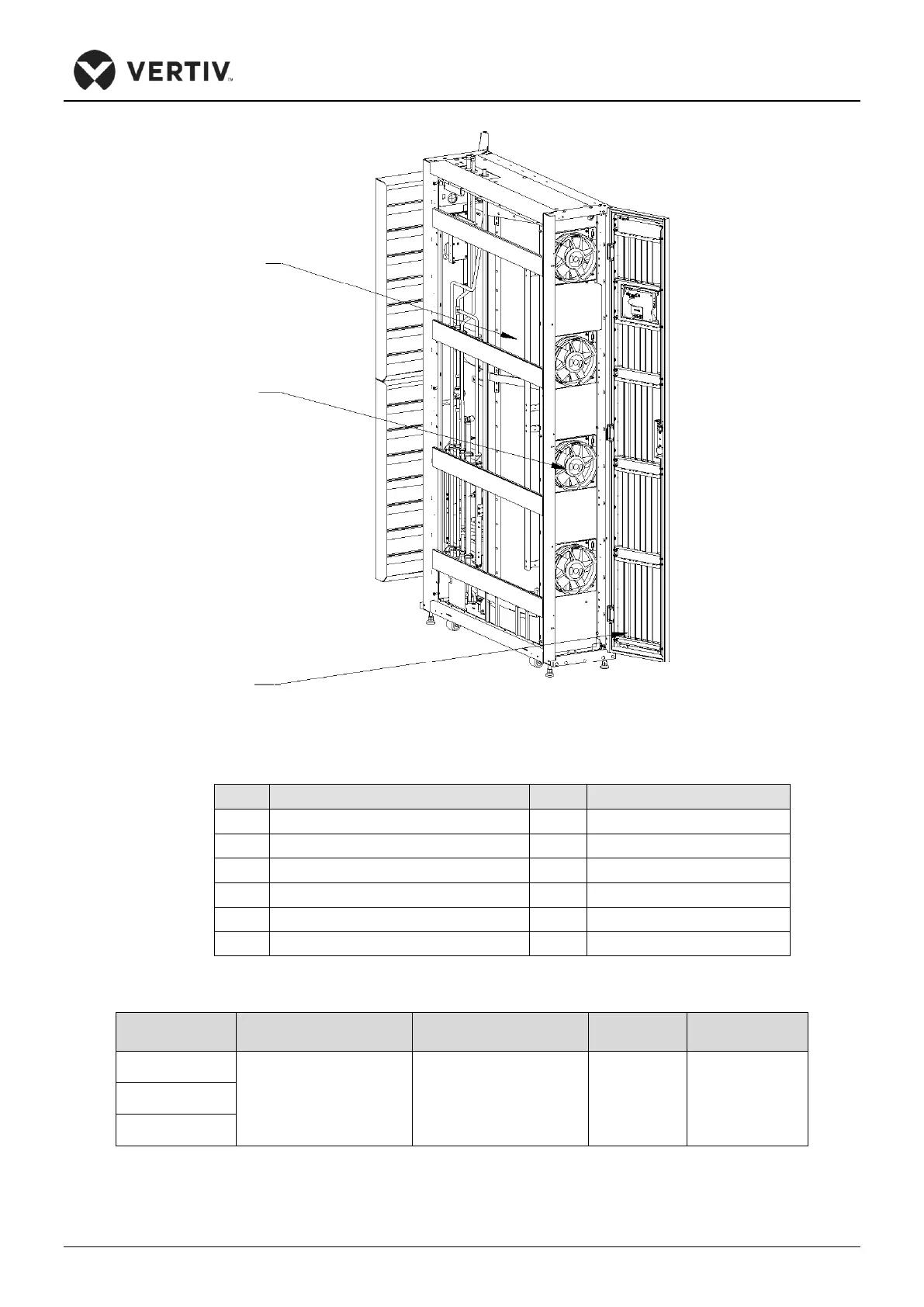

Figure 1-4 Components and their Locations at Front
Item
Description
Item
Description
1
Drainage pipe of pump
7
Condensate pump
2
Supply and Return refrigerant pipe
8
Electric heaters (optional)
3
Top electrical entrance
9
Evaporative Coil
4
Electric box
10
EC plug fans
5
Compressor Driver
11
Baffles
6
Compressor
Table 1-1 CRD10 Dimensions
Model
Unit Dimensions
(W x D x H) mm(inch)
Package Dimensions
(W x D x H) mm(inch)
Net weight
(kg/lb)
Gross weight
(kg/lb)
CRD100-0D00A
300x1132x2000
(11.8x44.6x78.7)
776x1276x2228
(30.6x50.2x87.7)
231/509
313/690
CRD101-0D00A
CRD102-1D00A
