6.2 Appearance

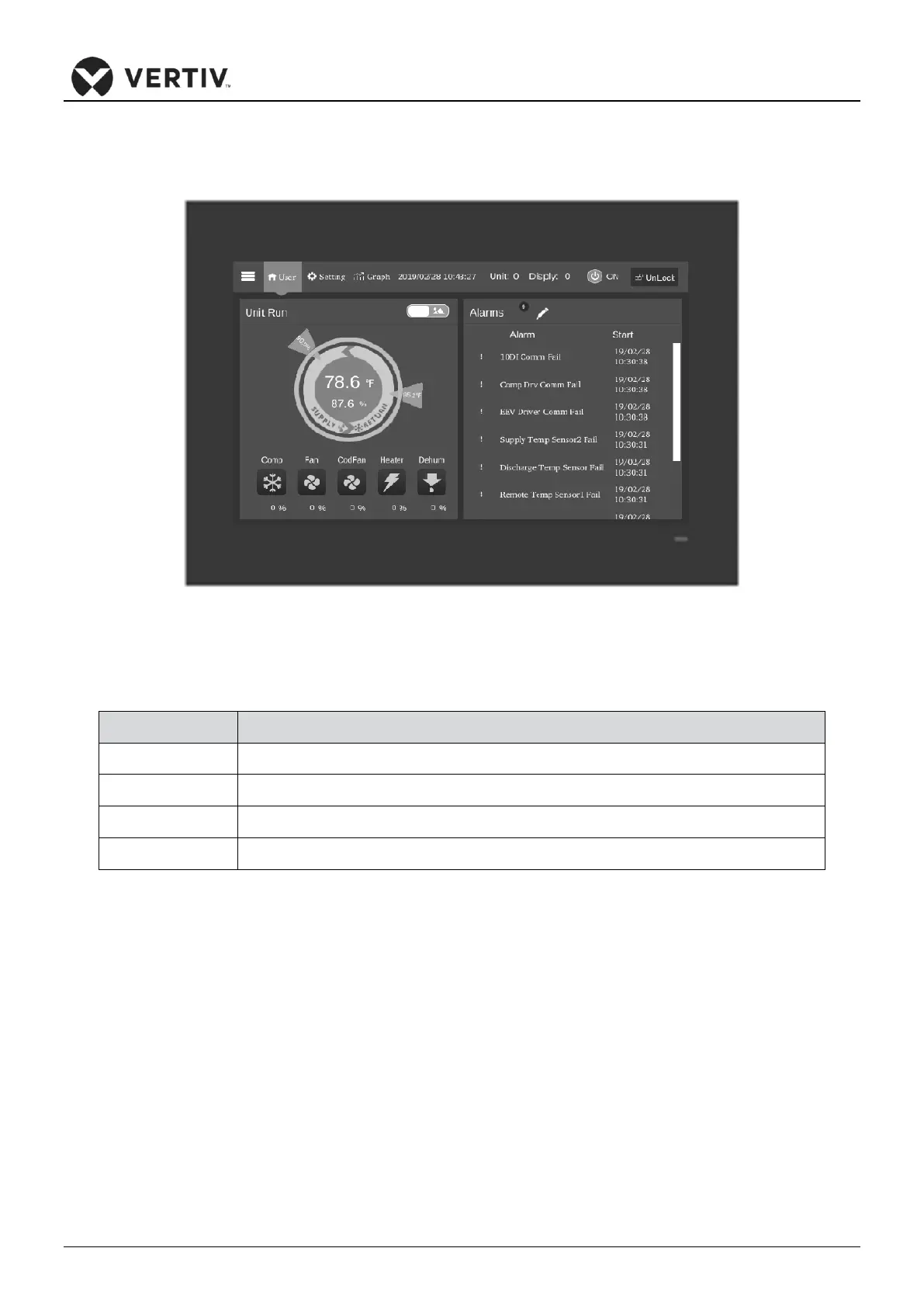

Appearance of 7- inch HMI display color screen is shown in Figure 6-1.
Figure 6-1 Color Screen
The display indicator lamp has 4 colors. The corresponding color and function are described in the Table 6-1.
Table 6-1 Function Description
Indicator Color
Description
Blue
Starting display
Yellow
Display system shutdown or failure in the control panel communications.
Green
System operating normally
Red
Alarm in system and buzzer
