Installation
Vertiv | Liebert CRD10 | User Manual 21
Take care of the center of the gravity.

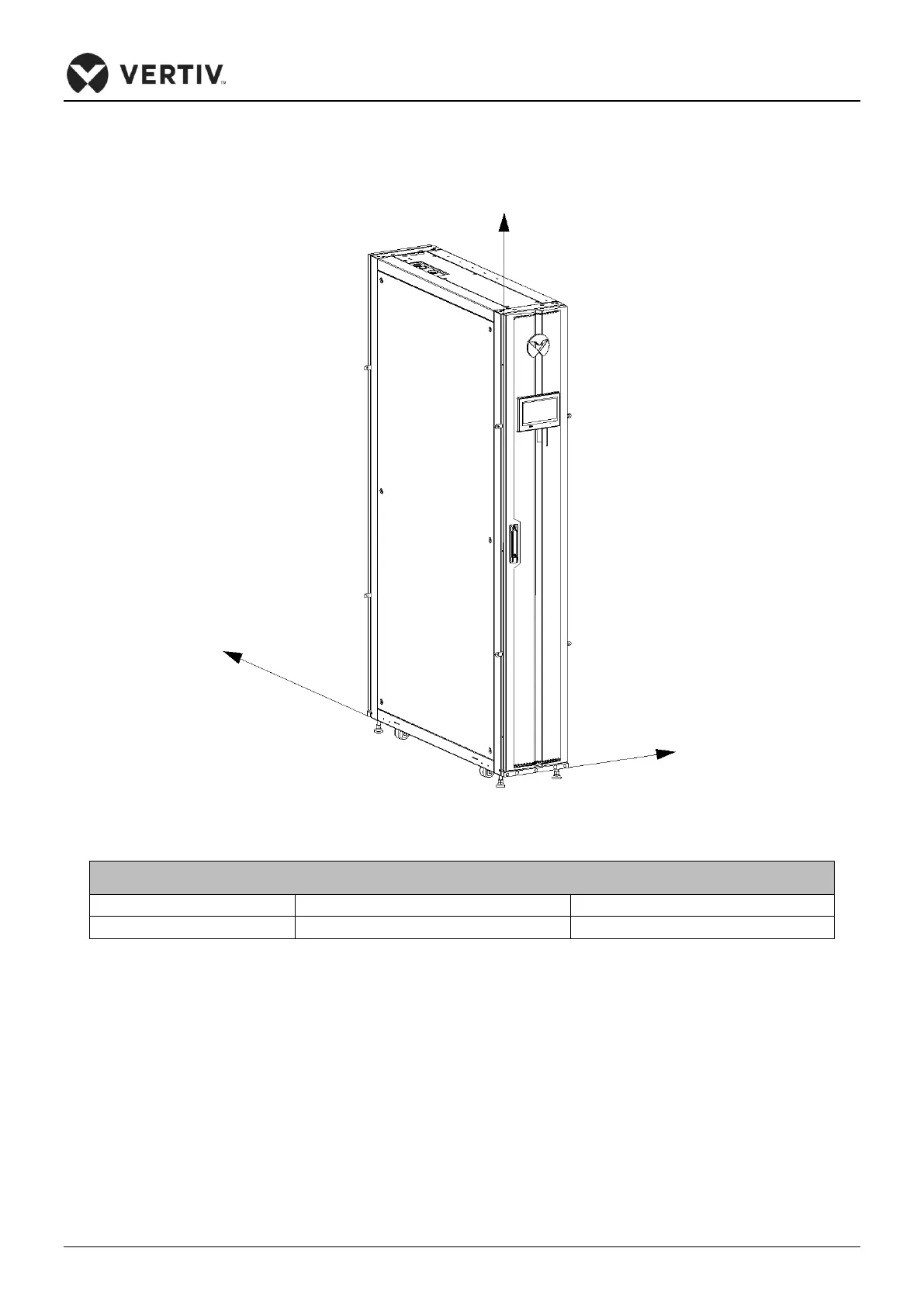

Figure 2-5 Axis of Coordinates
• Inspection
Moving forward, check the system fittings and its components against the packing list to ensure that
everything is in place and the assembly is intact. If any parts or components are missing or damaged,
immediately report the issue to the carrier and the local office of Vertiv at the earliest.
CENTER OF GRAVITY ±10mm (0.4in.)
X
Y
Z
150mm (5.9in.)
550mm (21.7in.)
970mm (38.2in.)
X
Y
Z
