Vertiv Liebert CRV CRD101-0D00A - System Arrangement during Installation

Mechanical Installation
Vertiv | Liebert CRD10 | User Manual 27
Pos.
Description
Pos.
Description
1
Compressor
9
Air Cooled Condenser
2
Crankcase Heater
10
Solenoid Valve (Connection on site)
3
Discharge Temperature Sensor
11
Filter Drier
4
High Pressure Switch
12
Sight Glass
5
High Pressure Transducer
13
Electronic Expansion Valve
6
Schrader Valve
14
Evaporating Coil
7
Ball Valve
15
Suction Temperature Sensor
8
Check Valve
16
Low Pressure Transducer

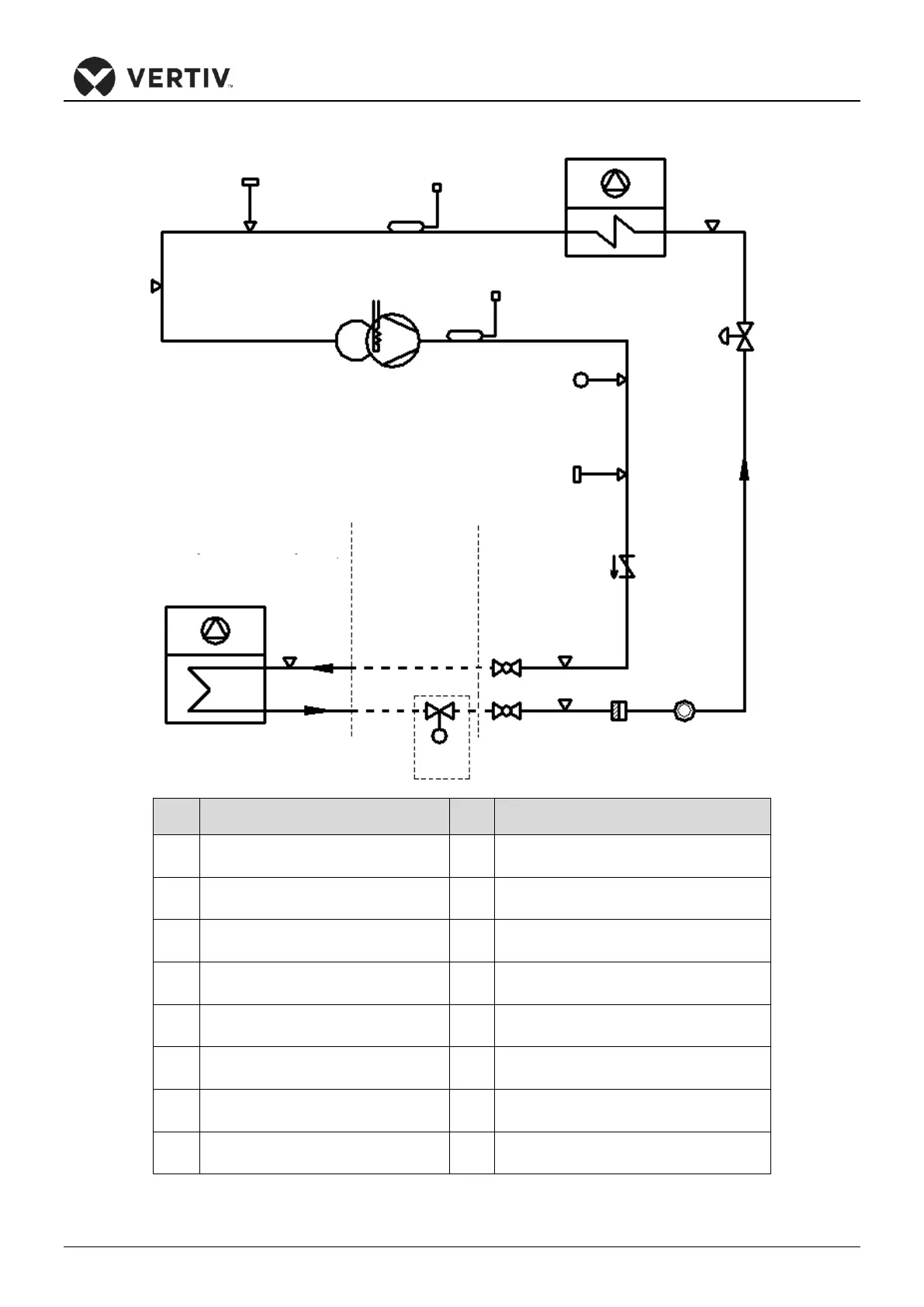

Figure 3-1 System Arrangement of the Unit System
CRD10 Indoor unit
External to CCD Condenser
Connection pipe
○
16
○
15
○
14
○
6
○
6
○
2
○
1
MC
○
3
○
4
○
5
○
8
○
6
○
7
○
9
○
6
○
10
○
7
○
6
○
11
○
12
○
13
