Vertiv I Liebert Air Cooled Condenser I User Manual 4
1.4.2 Mounting Base Dimensions
Mounting base dimensions for horizontal installation
The mounting base figure for horizontal installation is shown in Figure 1-5, and the specific
mounting base dimensions of each model are listed in Table 1-3.
D
D
L'
D
H'
D
Amplified part figure
D
D
Installation holes
(8 holes in total )

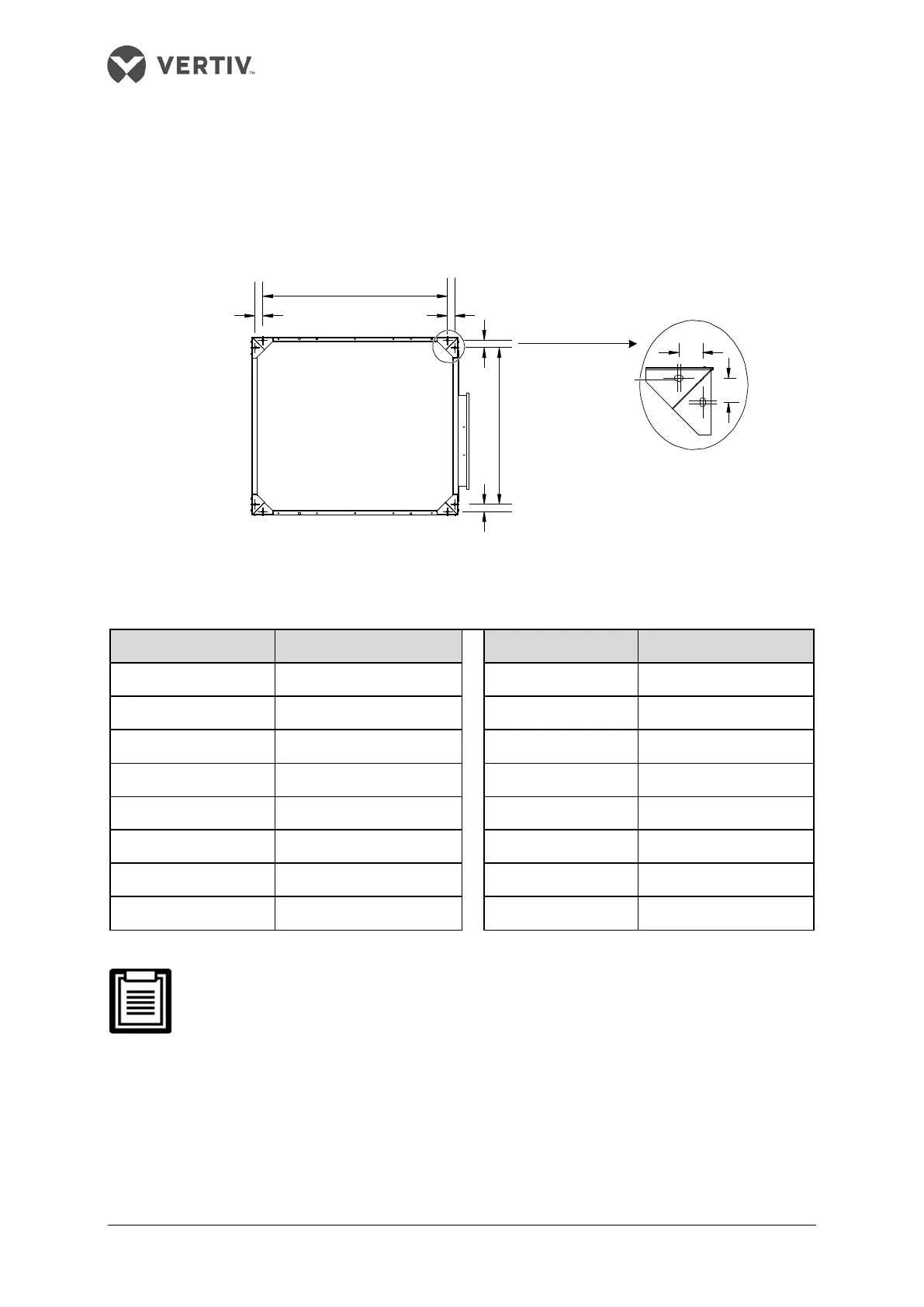

Figure 1-5 Mounting base figure for horizontal installation (unit: mm)
Table 1-3 Mounting base dimensions for horizontal installation (unit: mm)
Model Dimension (L' × H' × D) Model Dimension (L' × H' × D)
LSF24 1126 × 837 × 53 LSF85 2126 × 1120 × 53
LSF32 1126 × 837 × 53 LDF42 1326 × 1120 × 53
LSF38 1126 × 837 × 53 LDF52 1326 × 1120 × 53
LSF42 1326 × 1120 × 53 LDF62 1826 × 1120 × 53
LSF52 1326 × 1120 × 53 LDF70 1826 × 1120 × 53
LSF62 1626 × 1120 × 53 LDF76 2126 × 1120 × 53
LSF70 1626 × 1120 × 53 LDF85 2126 × 1120 × 53
LSF76 2126 x 1120 x 53
The installation holes are long and flat holes. It is recommended to use M10 × 20
bolts to fix the mounting base.
