Vertiv I Liebert Air Cooled Condenser I User Manual 5
Mounting base dimensions for vertical installation
The mounting base figure for vertical installation is shown in Figure 1-6, and the specific
mounting base dimensions of each model are listed in Table 1-4.

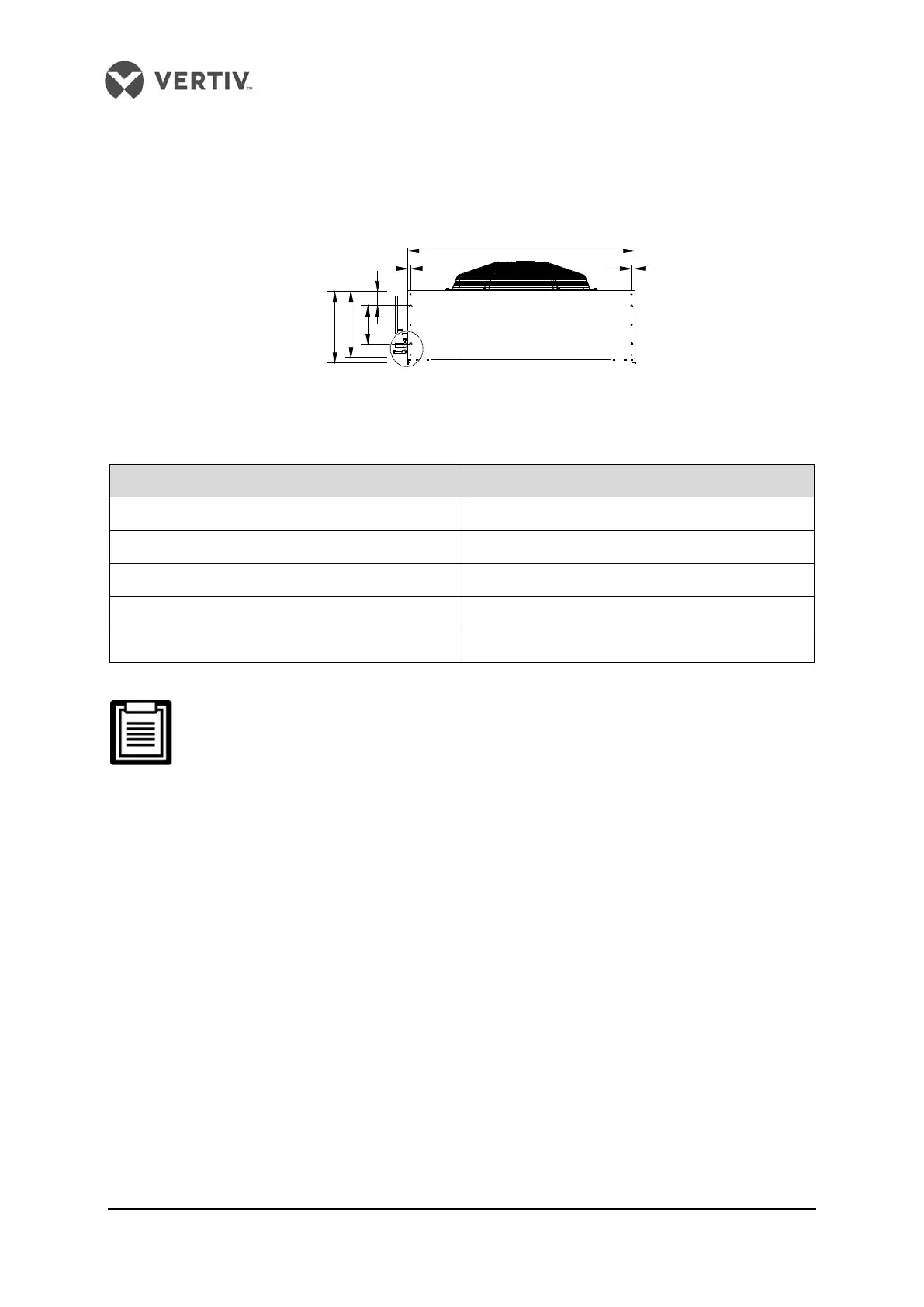

Figure 1-6 Mounting base figure for vertical installation (top view) (unit: mm)
Table 1-4 Mounting base dimensions for vertical installation (unit: mm)
Model Dimension ‘a’
LSF24, LDF32, LSF38 1280
LSF42, LDF42, LSF52, LDF52 1480
LSF62, LSF70 1780
LDF62, LDF70 1980
LSF76, LDF76, LSF85, LDF85 2280
1
.
T
he installation holes are long and flat holes. It is recommended to use M10 × 20
bolts to fix the mounting base.
2.
T
he upper condenser must be installed on a rack during vertical installation, an
d
t
he cushion pads should be installed between the condenser and the rack for
reducing vibration. It is prohibited to stack two condensers through bolt
connection.
