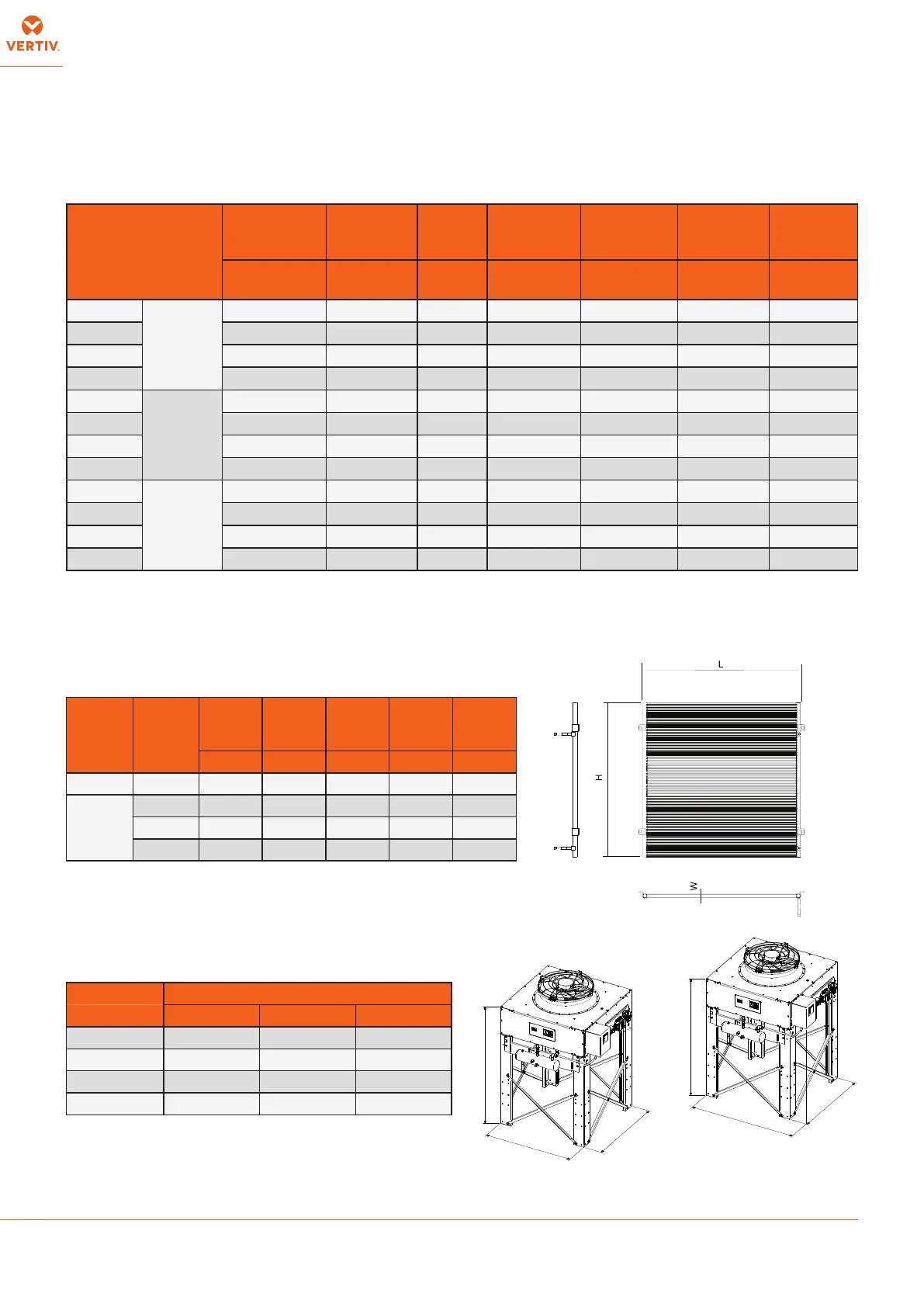

6. Technical Data and Performance
6.1 Technical Data and Performances
Model
Power supply
Total Heat
Rejection
* R410A
Air
Volume
Noise Level
**
Power Input
Current
Absorption
FLA
[V/Ph/Hz] [kW] [m3/h]
[dB(A)]
@5m
[kW] [A] [A]
MCM080
Controlled
by Indoor
Unit
400/3/50 86,2 23700 59 1,45 2,39 2,7
MCL055 400/3/50 65,9 18860 61,1 1,78 2,75 3,5
MCL110 400/3/50 131,9 37720 64,1 3,53 5,45 7,0
MCL165 400/3/50 197,7 56580 65,9 5,31 8,37 10,5
MCM080
Controlled
by Indoor
Unit
380/3/60 86,2 23700 59 1,48 2,46 2,8
MCL055 380/3/60 65,9 18860 61,1 1,77 2,86 3,5
MCL110 380/3/60 131,9 37720 64,1 3,53 5,72 7,0
MCL165 380/3/60 197,7 56580 65,9 5,31 9,75 10,5
MCM080
Controlled
by Indoor
Unit
460/3/60 86,2 23700 59 1,48 2,46 2,8
MCL055 460/3/60 65,9 18860 61,1 1,77 2,73 2,8
MCL110 460/3/60 131,9 37720 64,1 3,53 4,74 5,6
MCL165 460/3/60 197,7 56580 65,9 5,31 7,95 8,4
6.2 Volumes and weights
Platform Model
Fan Circuits Coil
Volume
Liquid
receiver
volume
Weight
Nr. Nr [dm
3
] [dm
3
] (kg)
Medium MCM080 2 1 7 12,5 260
Large
MCL055 1 1 5 12,5 205
MCL110 2 1 11,6 12,5 335
MCL165 3 1 19,4 21 475
6.3 Installation Dimensions
Model Dimension (LxWxH)
L [mm] W [mm] H [mm]
MCM080 2606 1432 2108
MCL055 1678 1603 2262
MCL110 3104 1603 2262
MCL165 4529 1603 2262
