20
Liebert
®
MC - UM - 10019237MAN_ENG - 31.03.2022
Personal
Protective
Equipment
CAUTION
The microchannel condeser is made of plates and ns, which may have sharp edges and blurrs.
• Always wear cut resistant gloves when operating on the condenser.
CAUTION
Components at high temperature (condenser inlet piping at about 120°C).
• Always wear temperature resistant gloves when operating on the condenser.
10.2 Safety Labels
• Check regularly that the safety label are still on the unit and clearly visible. See Annex III – Safety Labels for safety label
mapping. Replace any missing or damaged label.
10.3 Refrigeration System
• Check that the refrigeration pipes are rmly xed. The refrigeration pipes shall not shake with the vibration of wall, earth or
equipment frame. Otherwise reinforce the refrigeration pipes with fasteners.
• Check that there is no oil on the accessories of all refrigeration pipes, and make sure that the pipes do not leak.
10.4 Heat Exchanger
• Check and clean the coil at least every three months.
NOTICE
Keeping the coil dirty means less performance
and risk of corrosion of pipes.
NOTICE
Avoid snow accumulation around the condenser
in winter.
10.4.1 Opening the Cleaning Windows
Denominazione - Denomination - Bezeichnung - Denomination
Disegno - Drawing - Zeichnung - Dessin N.
Scala - Scale
Maûstab-Echelle
REV.
Data - Date
Datum
REV.
Sostituisce il disegno - Replaced drawing
Ersetzt durch - Remplace le dessin
Destinazione - Destination
Bestimmung
Foglio
Sheet
Blatt
Feuille
N.
di
of
aus
de
Firma
Sign.
Data - Date
Checked and approved
Codice - Code
Disegnatore - Draftsman
Zeichner-Dessin.
UNI EN 22768-1
ISO2768-m
DRAWINGS FOR MANUAL MC PRE
DJ8000M58
A
1:1
MC
C. MALOSSO
L. MERLO
16/07/20
6
10
___
___
_
_
__
__
__
__
__/__/__
__/__/__
60023533
Sostituito dal disegno - Replaced by drawing
Ersatz fuer - Remplace' par le dessin
Vertiv S.r.l.
Via L. Da Vinci 16\18 | 35028
Piove di Sacco (Padova) - Italy
© 2016. VERTIV Srl
- CONFIDENTIAL AND PROPRIETARY - ALL RIGHTS RESERVED
.
THIS DOCUMENT (AND THE I NFORMATION IT CONTA INS) ARE THE PROPERTY OF VE RTIV Srl.
BY ACCEPTING IT INTO YOUR P OSSESSION, YOU AGREE THAT YOU WILL KEEP THIS DOCUMENT,
AND ALL INFORMATION CO NTAINED HEREIN, IN ST RICTEST CONFIDENCE, AND WILL NOT COPY,
RETRANSMIT, USE (EXC EPT SOLELY FOR THE BENEF IT OF VERTIV Srl ), SELL, LEND OR OT HERWISE
DISPOSE OF THE SAME, DIRECTL Y OR INDIRECTLY, WIT HOUT THE EXPRESS WRITTEN PERMISSION
OF VERTIV Srl, AND THIS DOCUMENT SHALL BE RETURNED TO VERTIV Srl
IMMEDIATELY UPON REQ UEST.
CAGE CODE 1EDC2
rev.0 20.12.2016

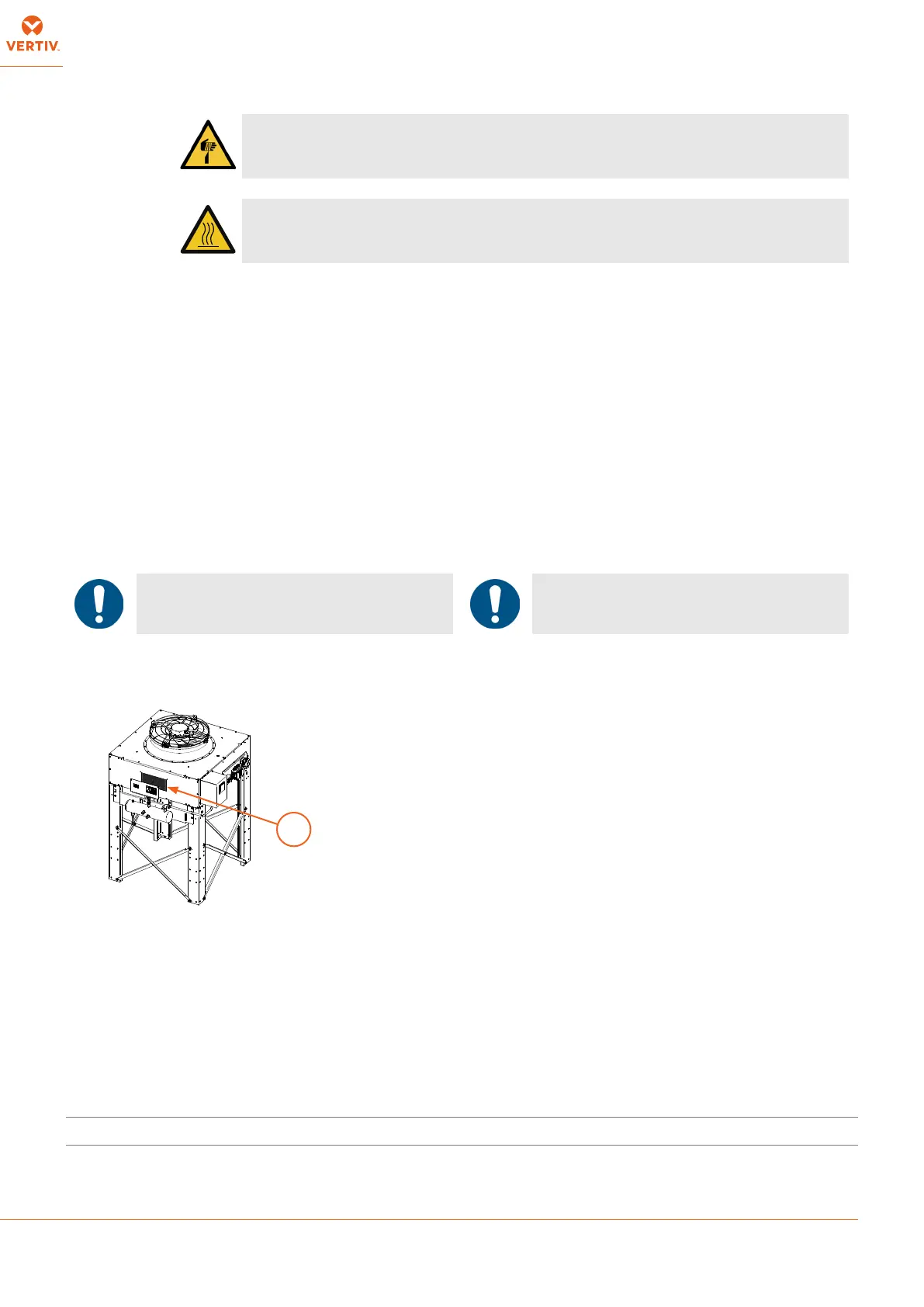

10.4.1 Opening the Cleaning Windows
The coil is accessible for cleaning through the innovative
cleaning window design (A), allowing you to clean the coil
without removing the fans from the unit.
1. Disconnect the power supply before working on the unit.
2. Remove the cover panels to free the cleaning windows.
3. Loose the mounting screws to open the cleaning windows.
10.4.2 Cleaning
What to use
Plain water Vertiv™ highly recommends to use plain water to clean the coils.
Water pressure from a garden hose and sprayer usually works well.
If the coil has been maintained and cleaned at regular intervals, water is sucient to remove dirt and debris
from the ns.
Brush You may use a brush to remove heavy build up on the exterior of the ns.
A
