8.4 Space Requirements
The condenser needs su󰀩cient installation and service space around the installation place. The detailed space requirements are
shown in Figures below
NOTICE
The unit does not operate correctly if placed too close to walls or other obstacles.
8.4.1 Placement Options and Piping Restrictions for the Liebert
®
EconoPhase and Air-Cooled Condenser
The Liebert
®
MC condenser and Liebert
®
EconoPhase must be installed next to each other (see Tables 8.1 and 8.2 for
guide-lines). The Liebert
®
EconoPhase is dependent on subcooled liquid leaving the condenser and entering the pumps. For
this reason there must be no large pressure drop between the two units because that could lead to ashing of the refrigerant
and pump cavitation. There must be no traps in the liquid line between the condenser and the Liebert
®
EconoPhase module
because these will allow vapor to enter the pump suction during startup.

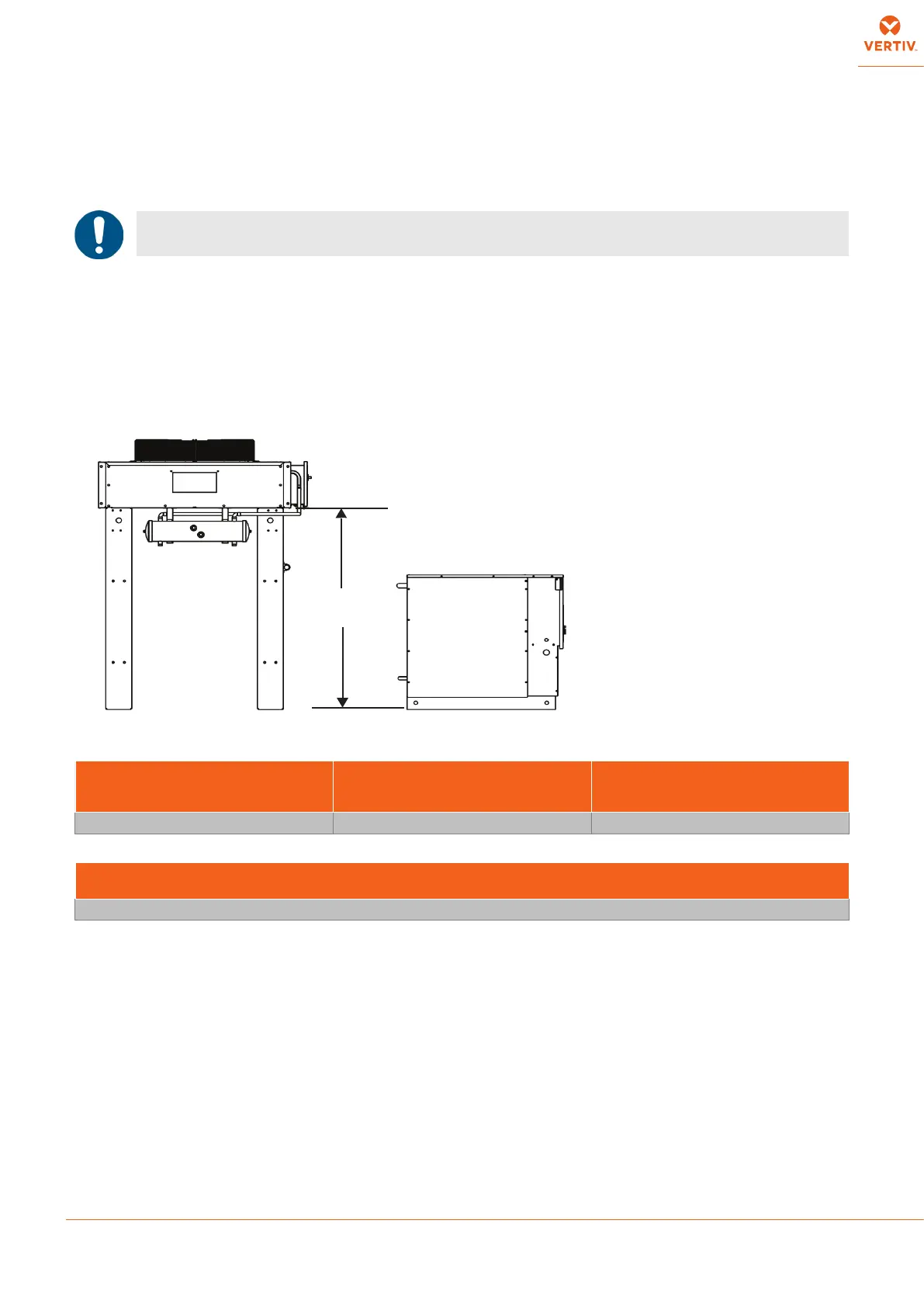

Fig. 8.1 - Relative heights of condenser and Liebert
®
EconoPhase
Tab. 8.1 - Field piping restrictions between air-cooled condenser and Liebert
®
EconoPhase
Line Size
Outdoor Diameter
mm
Maximum Equivalent Lenght
between Condenser and PRE
m
Minimum Height
Condenser to PRE module (see Figure 8.1)
m
35 7,6 1,5
Tab. 8.2 - Condenser height restrictions relative to Liebert
®
PDX
Maximum Height of Condenser above the Liebert
®
PDX (see NOTE below)
m
18,0
NOTE The condenser must not be installed below the level of the Liebert
®
PDX. The condenser may be installed on the same level as the
Liebert
®
PDX or as much as 18.0m above the Liebert
®
PDX.
MC Condenser
Liebert
®
EconoPhase
Minimum
1.5m
