Vertiv Liebert PPC - Figure 2 Typical Cabinet and Floor Planning Dimension Data

Vertiv | Liebert
®
PPC
™
User Manual | Rev. 6 | 03/18 | 4

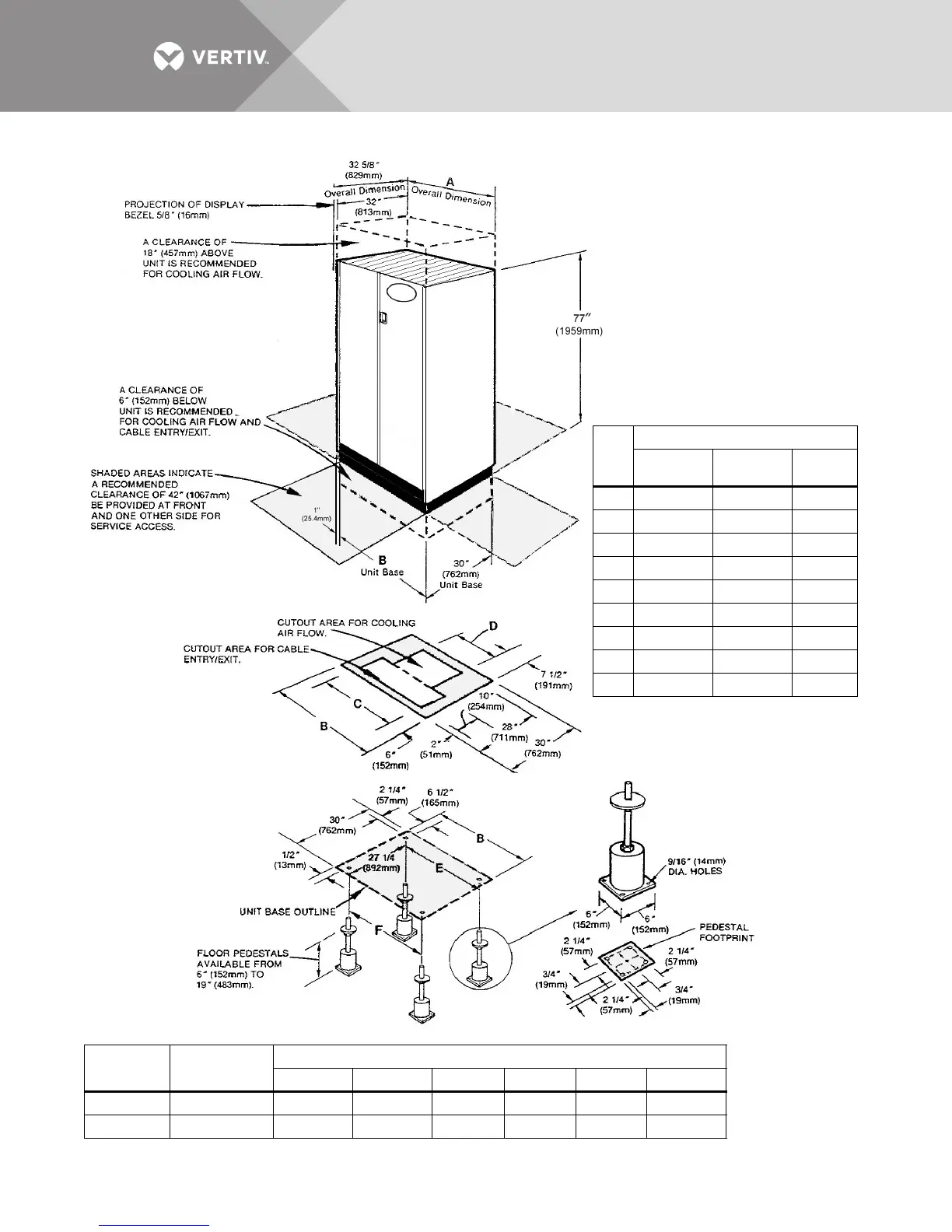

Figure 2 Typical cabinet and floor planning dimension data
Unit kVA
No. of
Panelboards
Dimensions, in. (mm)
ABCDEF
15 to 125 1 32 (813) 30 (762) 18 (457) 15 (381) 17 (432) 29 (737)
150 to 225 2 44 (1118) 42 (1067) 30 (762) 27 (686) 29 (737) 41 (1041)
Unit
kVA
Weight, lb. (kg)
60 Hz 50 Hz
Without
Xfmr
15 650 (295) 700 (318) 400 (182)
30 750 (340) 800 (363) 400 (182)
50 898 (408) 925 (420) 400 (182)
75 1115 (507) 1150 (522) 400 (182)
100 1275 (579) 1400 (635) 450 (204)
125 1450 (658) 1575 (715) 450 (204)
150 1789 (813) 1900 (862) 700 (318)
200 2110 (959) 2300 (1043) 700 (318)
225 2353 (1070) 2450 (1111) 700 (318)
Add 50 lb. (14kg) to 50 thru 125 kVA units in 44"
cabinet.
CABINET DIMENSIONS
Footprint and Floor
Cutout Dimensions
Optional Floor
Pedestals
