Vertiv Liebert PPC - Figure 3 Typical Cabinet and Floor Planning Dimension Data, Top Exit Unit

Vertiv | Liebert
®
PPC
™
User Manual | Rev. 6 | 03/18 | 5

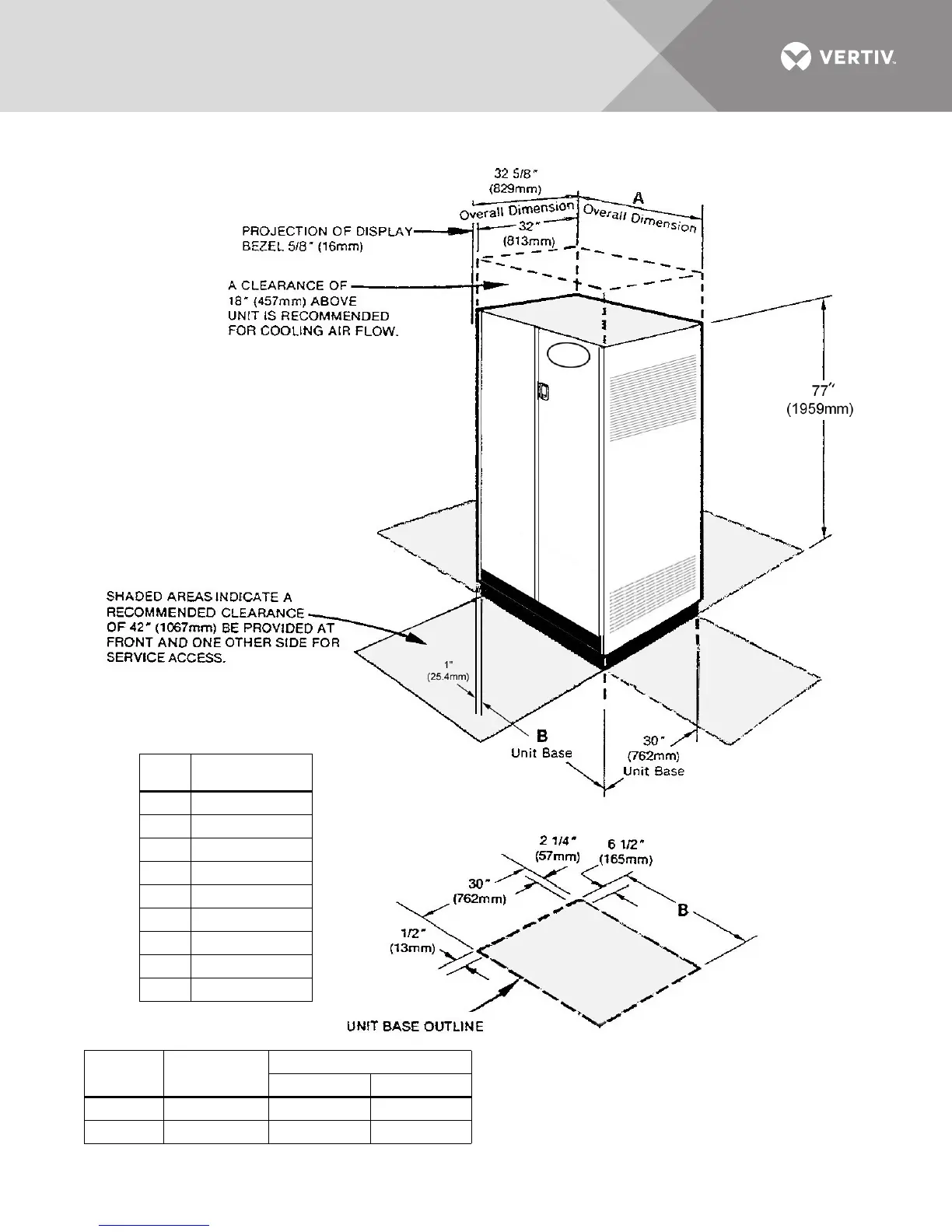

Figure 3 Typical cabinet and floor planning dimension data, top exit unit
Unit kVA
No. of
Panelboards
Dimensions, in. (mm)
AB
15-125 1 32 (813) 30 (762)
150-225 1 44 (1118) 42 (1067)
Footprint Dimensions
CABINET DIMENSIONS
Unit
kVA Weight, lb. (kg)
15 650 (295)
30 750 (340)
50 950 (432)
75 1165 (530)
100 1325 (601)
125 1500 (680)
150 1789 (813)
200 2110 (959)
225 2353 (1070)
