Vertiv | +24 VDC Power System User Manual (Section 6013) | Rev. G
199

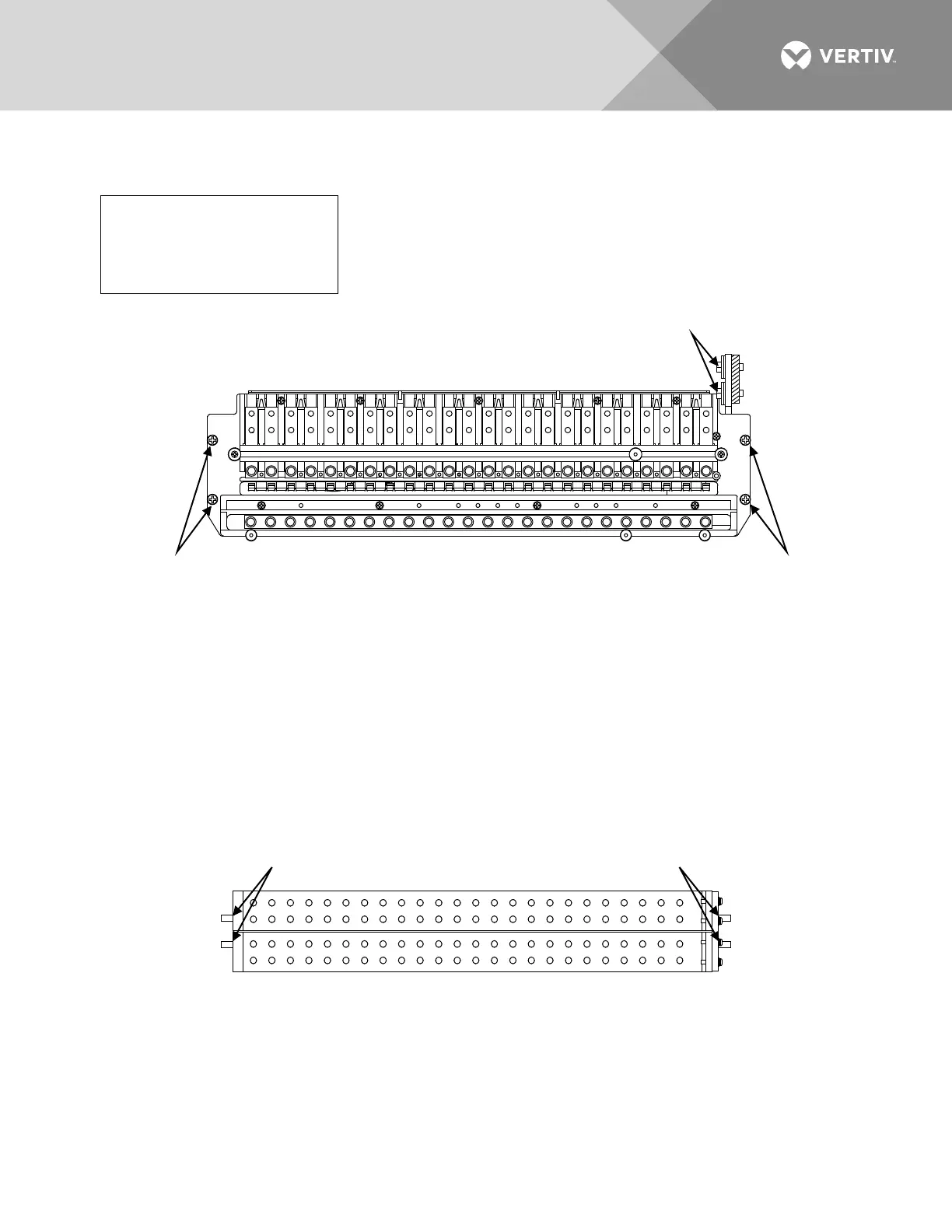

Figure 26: (Detail M) Replacing List AK
Figure 26 (Detail N) Replacing List AL
SYSTEM
BUSBAR CONNECTION
Remove / Install
1/4-20 X 7/8" Bolt
1/4" Belleville Washer
1/4" Flat Washer
(4) Places.
Torque to 60 In. Lbs.
Remove / Install
10-32 X 5/8" Screw
No. 10 Flat Washer
(2) Places.
Remove / Install
10-32 X 5/8" Screw
No. 10 Flat Washer
(2) Places
FRONT VIEW
NOTE
IF LIST AL GROUND BAR IS
MOUNTED ABOVE LIST AK,
REMOVE LIST AL PRIOR
TO REMOVING LIST AK.
Remove / Install
1/4-20 X 7/8" Bolt
1/4" Lock Washer
1/4" Flat Washer
(4) Places.
Torque to 60 In. Lbs.
FRONT VIEW
GROUND
BUSBAR CONNECTION
Remove / Install
1/4-20 X 7/8" Bolt
1/4" Belleville Washer
1/4" Flat Washer
(4) Places.
Torque to 60 In. Lbs.
