Vertiv | NetSure 7100 Series Quick Start Guide (QS582127000) | Rev. T
46
Direct AC Input Connections to 588705300 List 03 Module Mounting Assemblies
Refer to Figure 21.

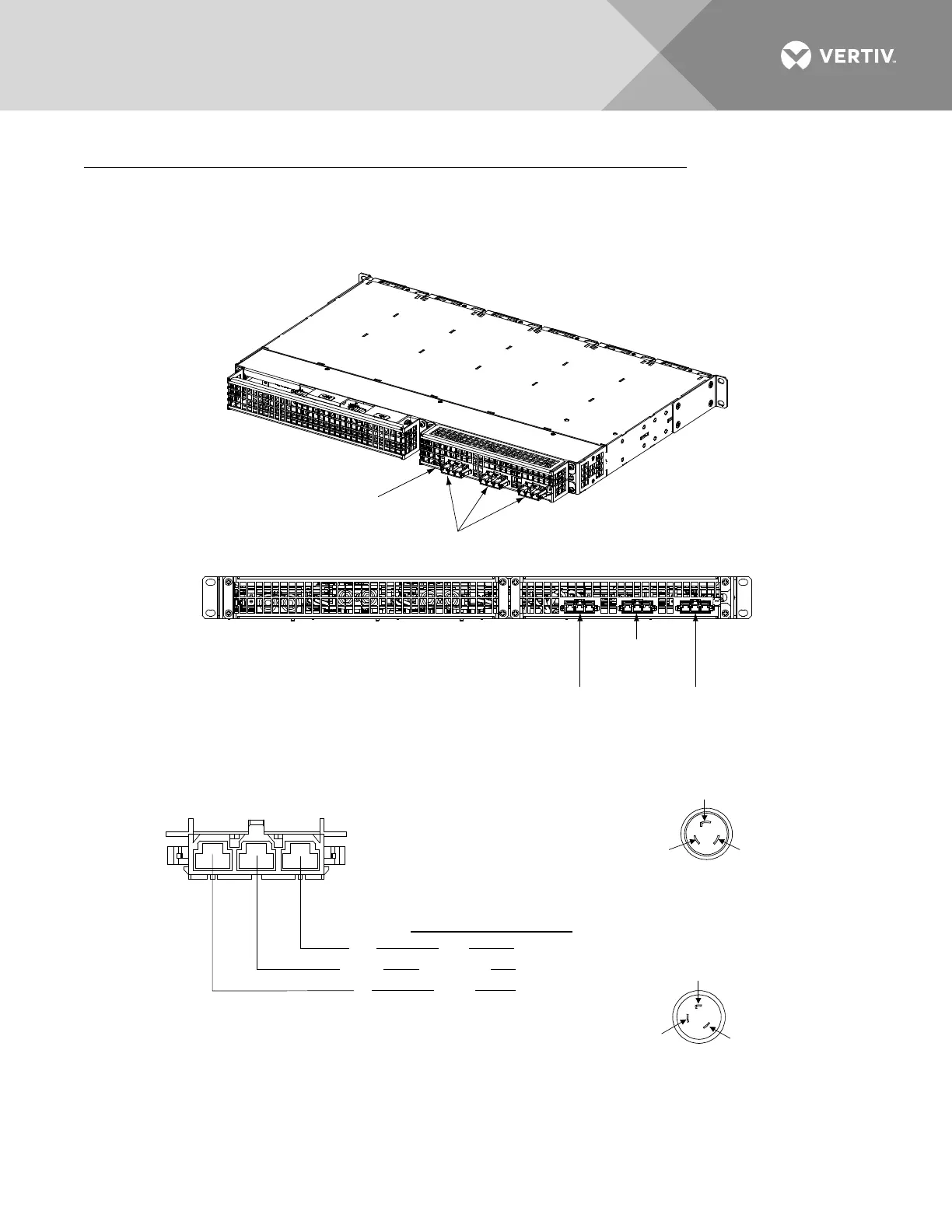

Figure 21: Nominal 120 VAC /208 VAC / 240 VAC Input and Equipment Grounding Connections to Module
Mounting Assembly 588705300 List 03 (Single Phase, Cable Assemblies or Line Cords)
Rectifier
AC input connections are made using the supplied
AC input cable assemblies or line cords connected here.
Rectifiers are numbered left to
right as viewed from the front.
AC Input for
Rectifier Positions
#5 and #6
AC Input for
Rectifier Positions
#1 and #2
AC Input for
Rectifier Positions
#3 and #4
Rear
Rear
M4 Frame Ground Studs
Located Behind Cover
Input Connections are Made
using the Ordered Input
Cable Assemblies / Line Cords
(Cabinet Rear View)
L2-N
Ground
L1
Blue*
Green/Yellow*
Brown*
White*
Green*
Black*
* Color of Input Cable
Assembly / Line Cord Lead
Rectifier AC Input
(120 VAC, 30 A)
Rectifier AC Input
(208 VAC / 240 VAC, 30 A)
Module Input Connector
Input
Cable Assembly
P/N 535232
P/N 547898
P/N 553202
AC Input
Line Cords
P/N 540946
P/N 545252
P/N 545616
Terminal G
(Green Wire)
Terminal Y
(Black Wire)
Terminal X
(White Wire)
P/N 540946
& 545616
Plug End
Terminal G
(Green Wire)
Terminal Y
(Black Wire)
Terminal X
(White Wire)
P/N 545252
Plug End
Rectifier AC Input
(120 VAC / 208 VAC / 240VAC, 30 A)
