Direct AC Input Connections to 588705000 List 22 and 588705500 List 02 Module Mounting Assemblies
Refer to Figure 20.

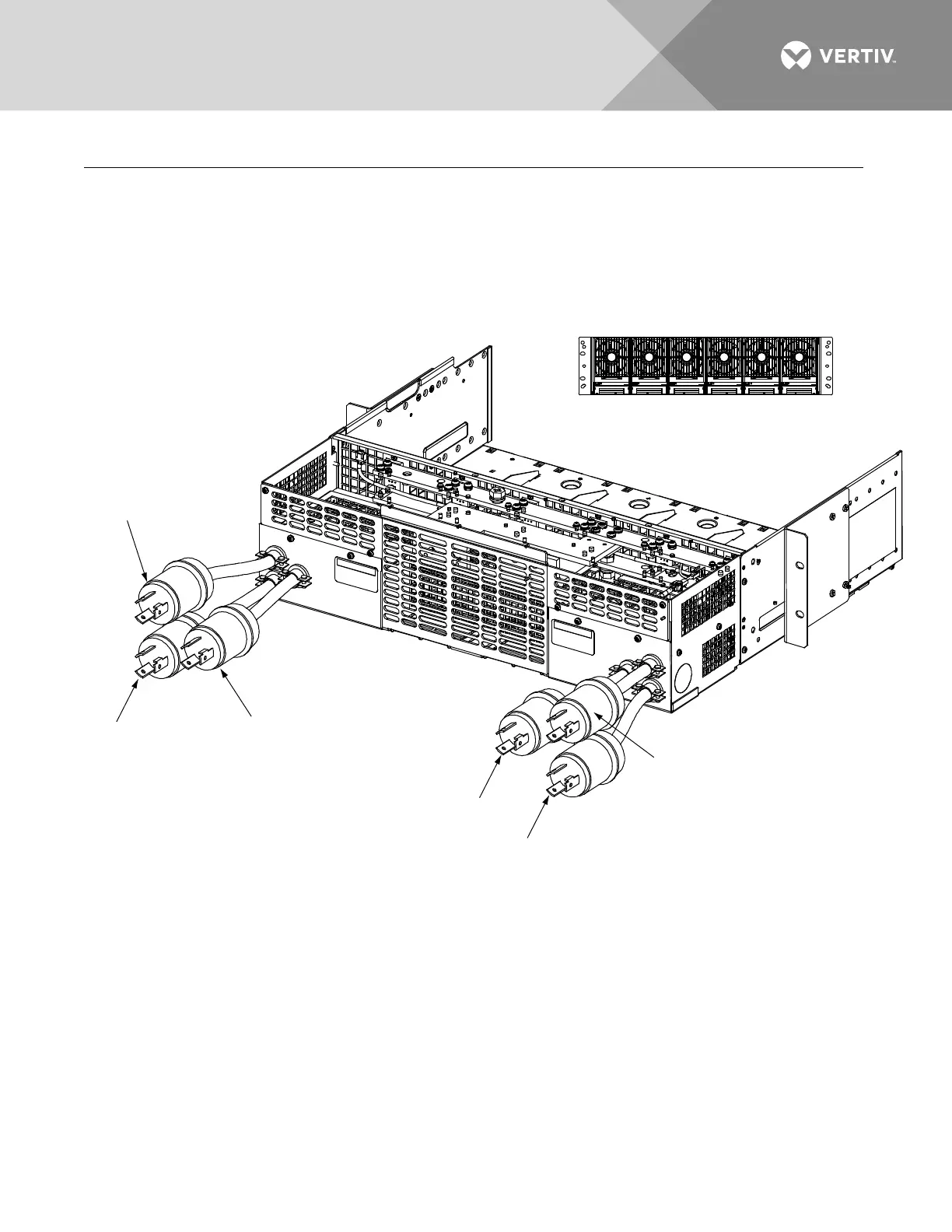

Figure 20: Nominal 208 VAC / 240 VAC Input and Equipment Grounding Connections to Module Mounting
Assembly 588705000 List 22 and 588705500 List 02
(Single Phase, Line Cords)
Rectifier
Module 4
Rectifier
Module 6
Rectifier
Module 5
Rectifier
Module 1
Rectifier
Module 3
Rectifier
Module 2
Rear View
Rectifier Module (PCU) Mounting Slots
(front view)
Rect.
(PCU)
1
Rect.
(PCU)
2
Rect.
(PCU)
3
Rect.
(PCU)
4
Rect.
(PCU)
5
Rect.
(PCU)
6
RECTIFIER (PCU) AC INPUT FEEDS
INDIVIDUAL RECTIFIER (PCU) FEED
208 VAC / 240 VAC, 50 Hz / 60 Hz, SINGLE PHASE
