Vertiv NetSure 7100 Series User Manual

Vertiv | NetSure 7100 Series Quick Start Guide (QS582127000) | Rev. T
49
Direct AC Input Connections to 588705400 List 04 Module Mounting Assemblies
Refer to Figure 24.

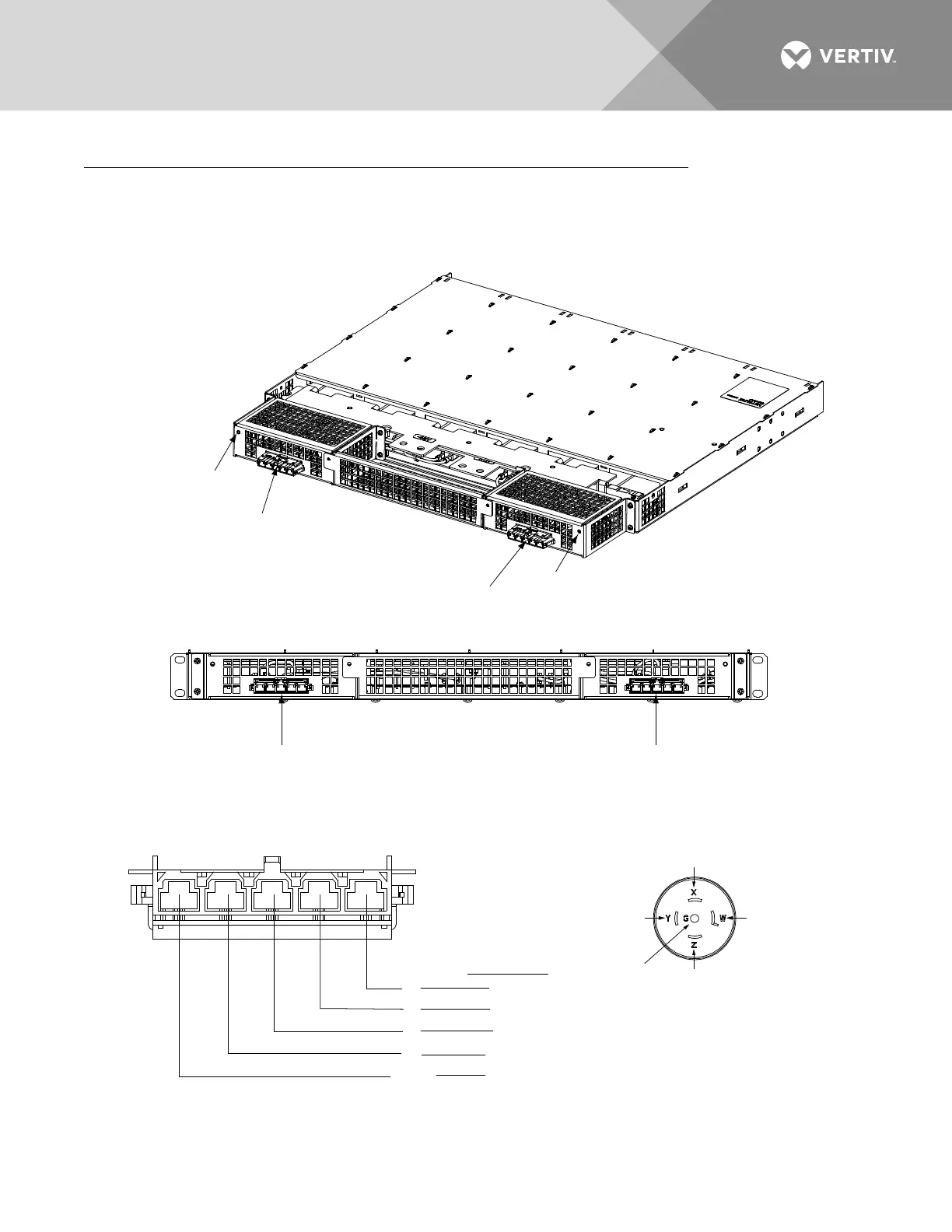

Figure 24: Nominal 277 VAC / 480 VAC Input Connections (Three-Phase) to a 588705400 List 04 Module
Mounting Assembly
Rectifier
AC input connections are made using
the supplied
AC input line cords connected here.
Rear
M4 Frame
Ground Screw
M4 Frame
Ground Screw
Rectifiers are numbered left to
right as viewed from the front.
AC Input for
Rectifier Positions
#1, #2, #3
Rear
AC Input for
Rectifier Positions
#4, #5, #6
White*
Black*
Red*
Orange*
Green*
N
L1
L2
L3
Ground
* Color of Input Line Cord Lead
Module Input Connector
(Cabinet Rear View)
AC Input
Line Cords
P/N 562045
P/N 562045
Plug End
Rectifier AC Input
(277 VAC / 480 VAC, Three Phase, 20 A)
Terminal G
(Green Wire)
Terminal Z
(Orange Wire)
Terminal Y
(Red Wire)
Terminal X
(Black Wire)
Terminal W
(White Wire)
Input Connections are
Made using the Ordered
Input Line Cords
