If a gravity drain is not possible, a condensate pump kit is provided as a part of the accessory shipped with
the unit and can be installed in the field.
3.4.1 Remove the power cable clamp from the VRC1 unit
The power cable clamp is used to secure the power cable during transportation. Before installing the
accessories, it needs to be removed.

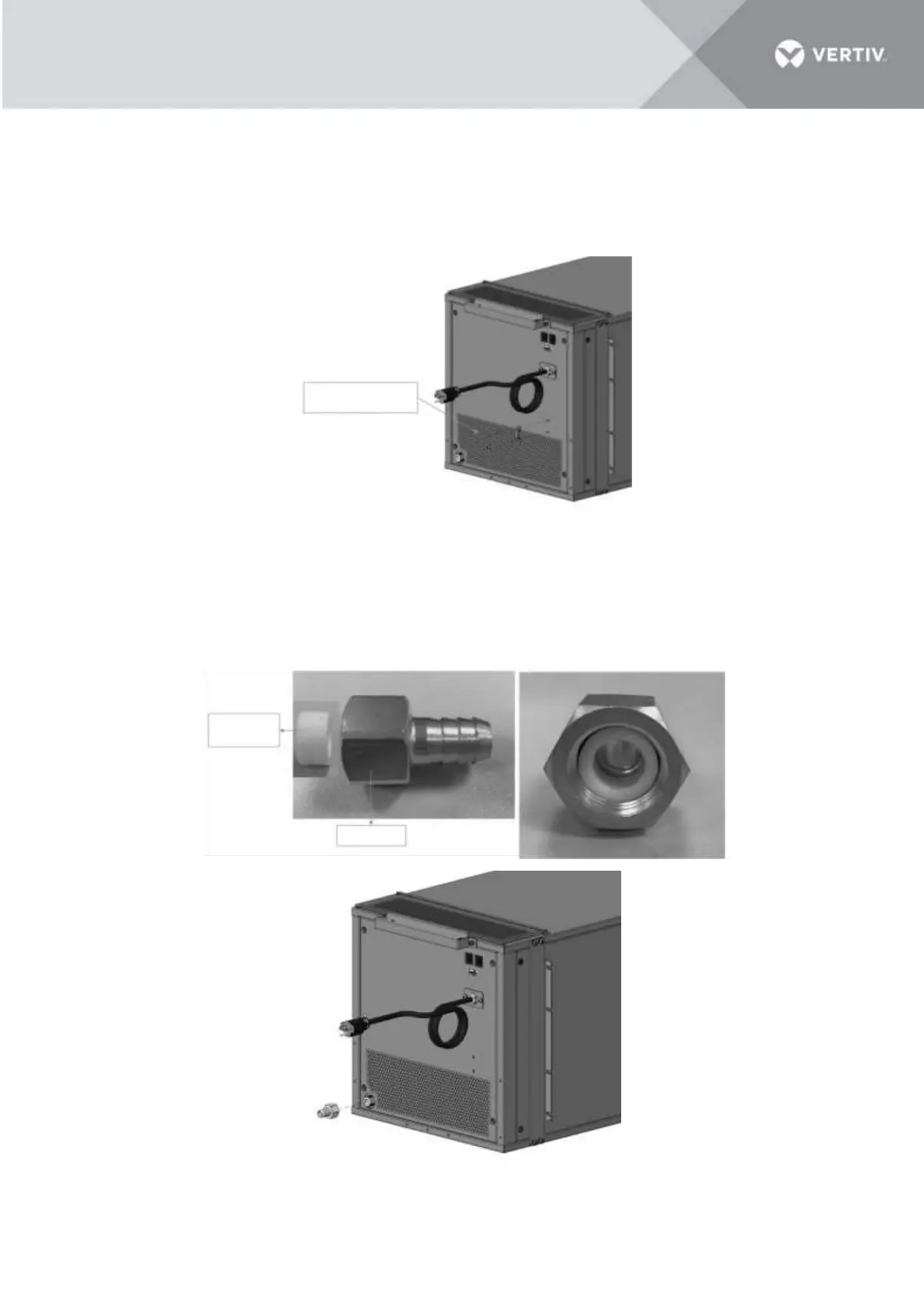

Figure 3-10 Remove the power cable bracket
3.4.2 Installing the drain fitting to the VRC1 unit
Fasten the drain fitting to the drain port of the VRC1 unit. The drain fitting contains a sealing block, which
is used for preventing the water leaking from the drain fitting port. Make sure the sealing block is installed
tightly.
Figure 3-11 Install the drain fitting
