VESDA VESDA-E VES-A00-P - Physical Dimensions

2.8 Dimensions
A
B C D E F G H
I
J
K
L
M
N
O
P Q R S
T
mm inch
A 28.5 1.12
B 35.0 1.38
C 45.0 1.77
D 134.0 5.28
E 34.0 1.34
F 34.0 1.34
G 34.0 1.34
H 34.0 1.34
I 26.5 1.04
J 350.05 13.78
K 224.0 8.82
L 230.2 9.06
M 135.48 5.3
N 132.28 5.21
O 28.5 1.12
P 35.0 1.38
Q 45.0 1.77
R 127.0 5.0
S 143.0 5.63
T 26.0 1.02

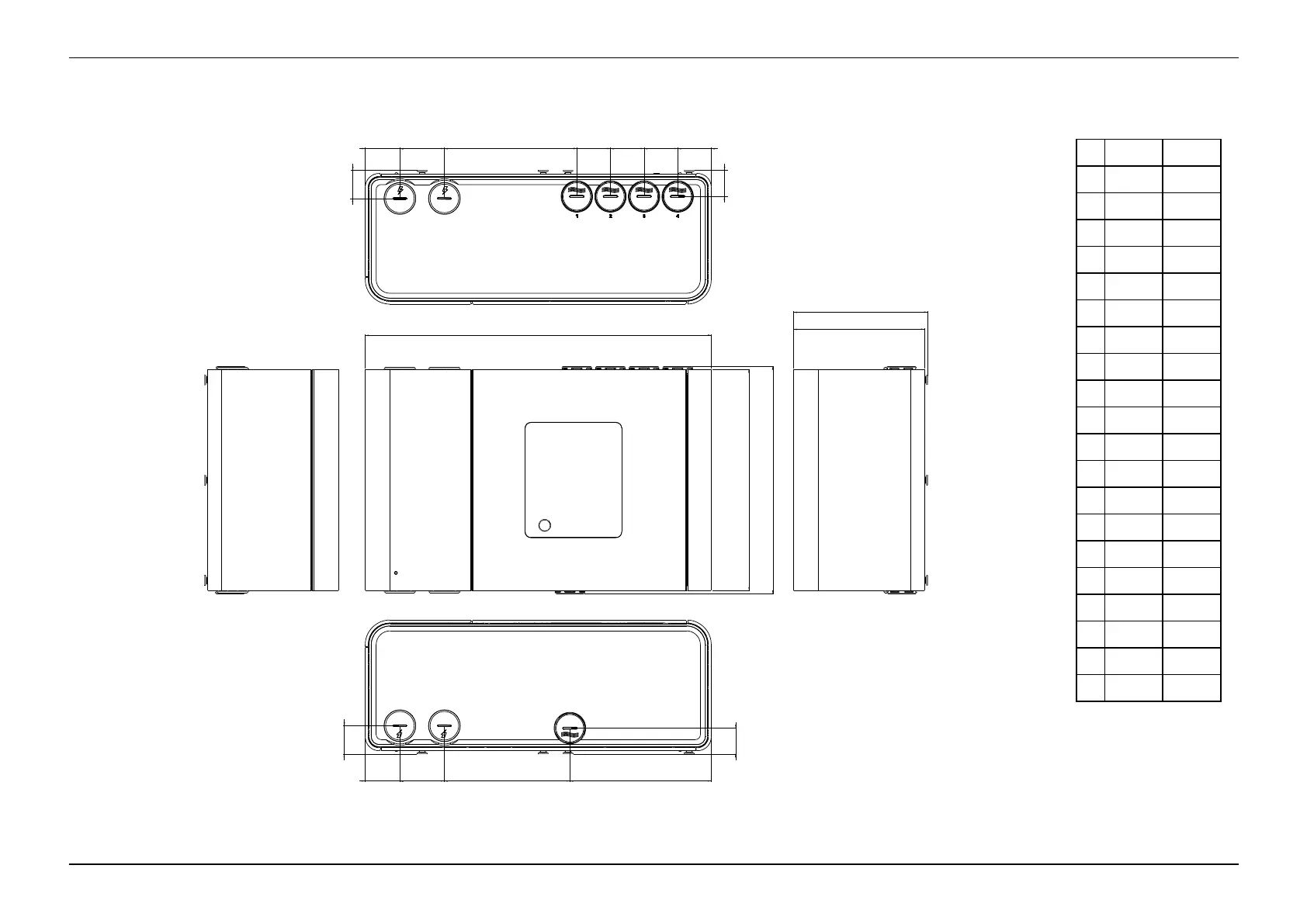

Figure2-4: Front, top, bottom and side dimensions
VESDA-EVES-A00-P Product Guide
