Vespa LX 125 3V ie User Manual

01_16

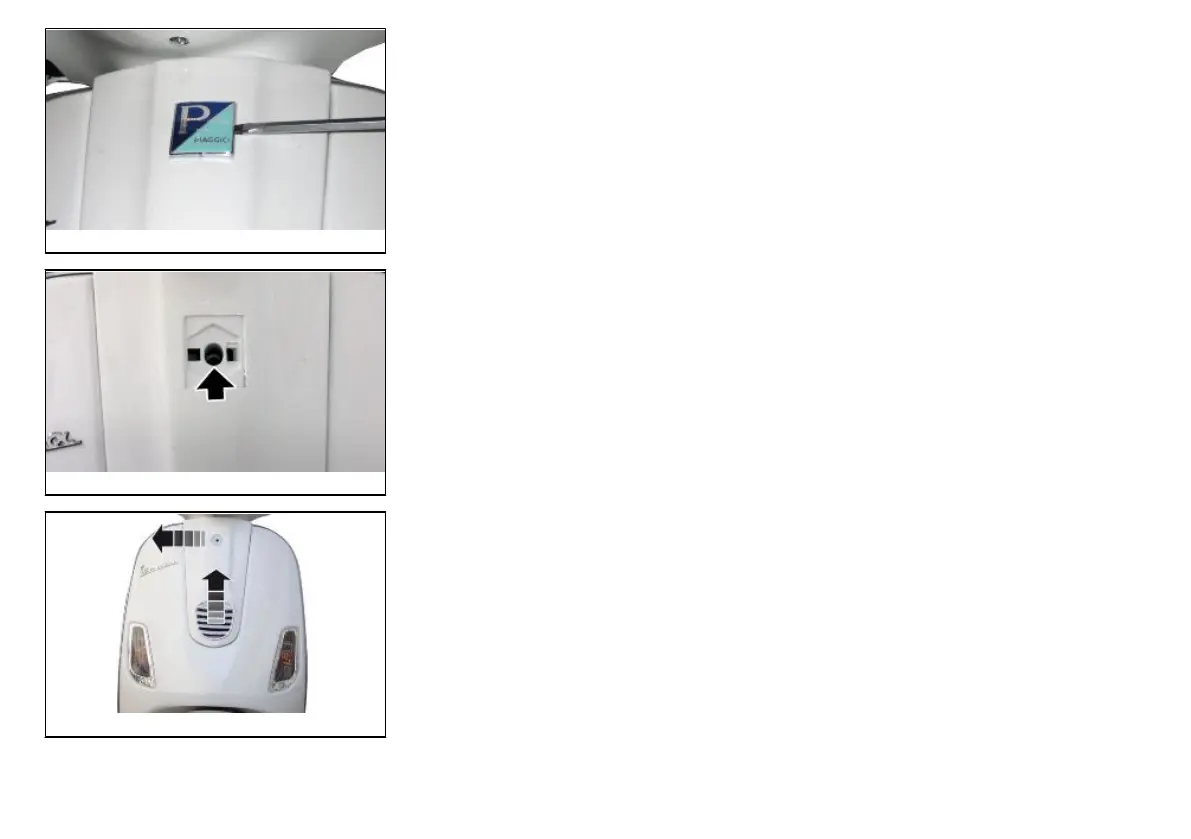

Opening the side panels (01_16, 01_17, 01_18)
To remove the front cover, proceed as follows:
- remove the clip-on badge, paying attention to the vehicle bodyworks.
01_17
01_18
- Undo the fixing screw.
- Turn the handlebar until the end of one side.
- Remove the front cover upwards and to the side, releasing the housing tongues.
21
1 Vehicle

Vespa LX 125 3V ie Specifications

General

Brand	Vespa
Model	LX 125 3V ie
Category	Scooter
Language	English
