Fuses (03_20, 03_21, 03_22, 03_23)
The electrical system is protected by main and secondary fuses, positioned as:

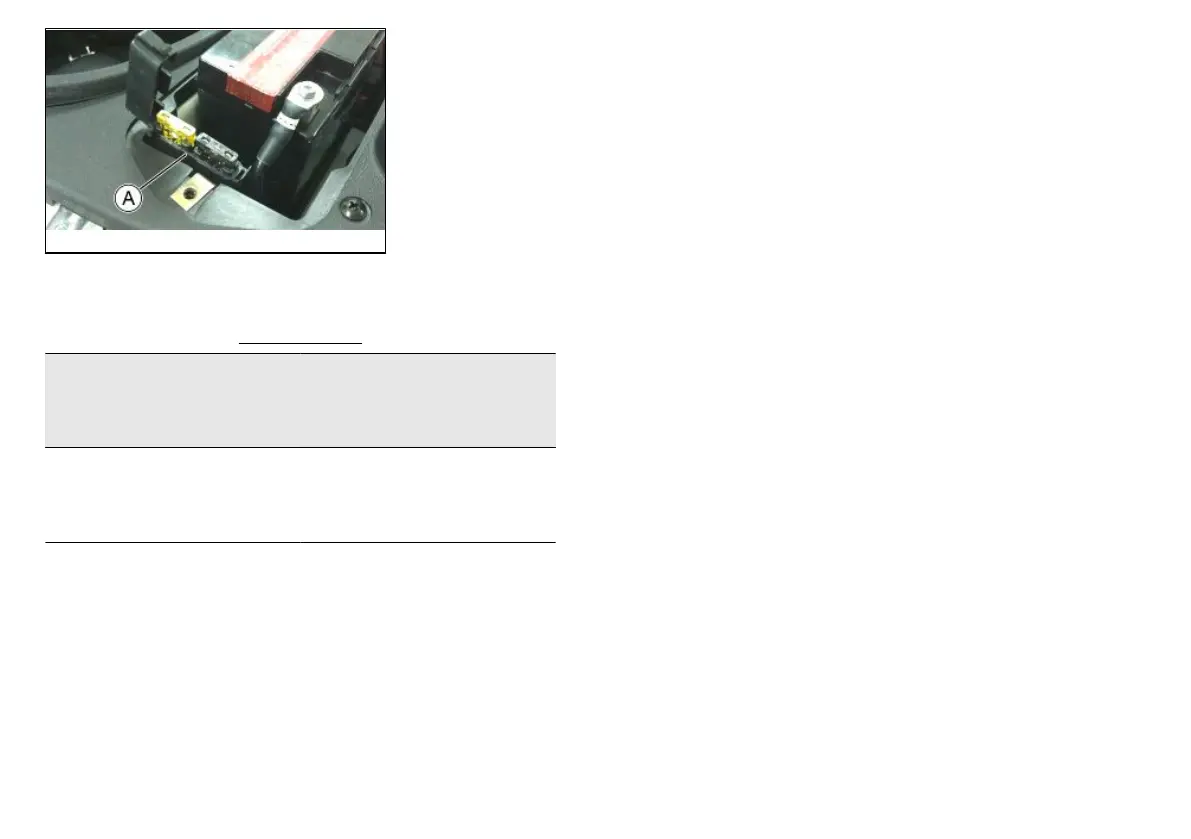

MAIN FUSE HOLDER «A» battery compartment under the saddle
Access to the main fuse holders «A»:
- Lift the saddle and open the fuse holders.
MAIN FUSES
Fuse No. 1 Capacity: 20 A
Protected circuits: General,
recharge circuit
Fuse No. 6 Capacity: 10 A
Protected circuits: Injection loads
relay, MIU ECU, instrument panel.
