Checking the brake oil level (03_13)
The tank of the brake fluid is placed on the right side of the handlebar, under the
handlebar cover.
To control the brake fluid level, proceed as follows:
- rest the vehicle on its centre stand and with the handlebars perfectly horizontal;

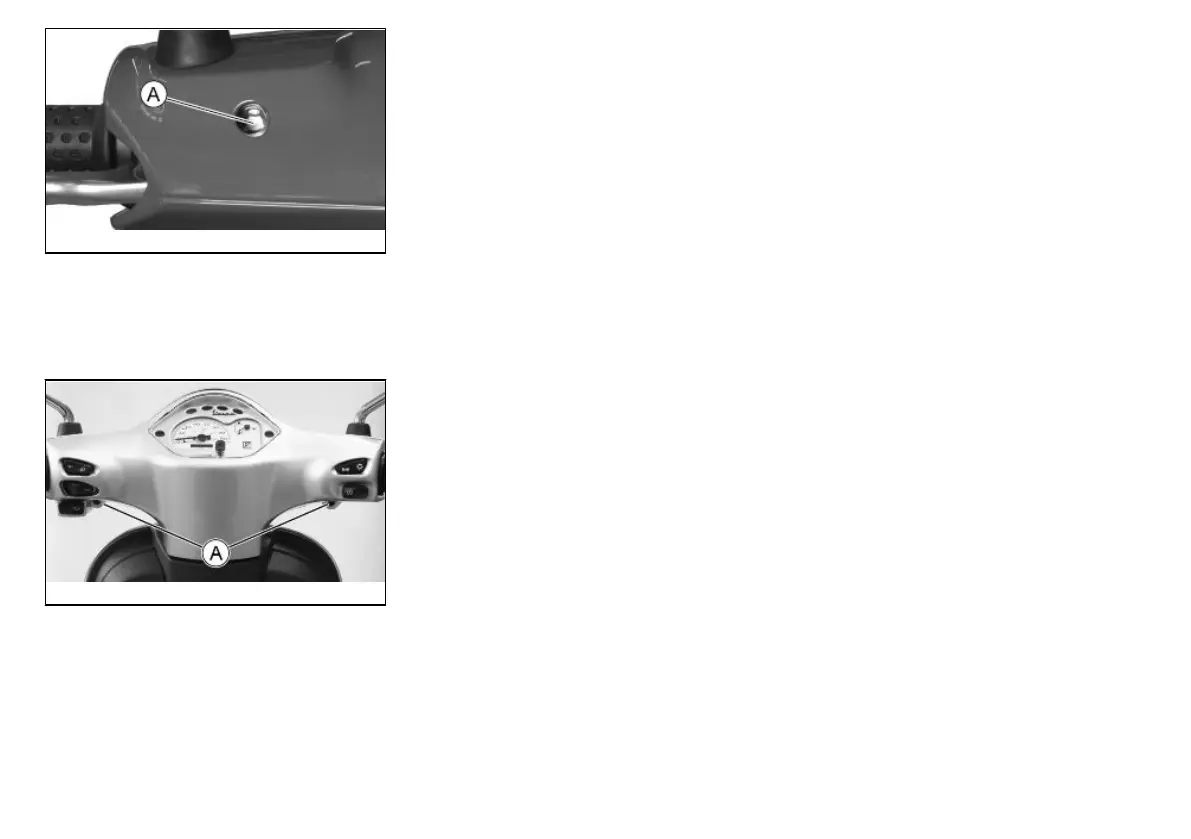

- control the level with the relative inspection sight glass «A», visible on the right front
side of the handlebar cover:
•
if the sight glass is full, the brake fluid level is correct.
•
If the brake fluid level is certified to the reference «MIN», go to an Authorised
Service Centre or carry out the top-up as indicated.
•
If the brake fluid level is lower than the reference «MIN», do not use the
vehicle and contact an Authorised Service Centre.
03_14
Braking system fluid top up (03_14, 03_15, 03_16, 03_17)
Proceed as follows:
- Remove the rear-view mirrors.
- Undo the two screws «A».
- Remove the front cover as described in paragraph "Opening cases".
- Undo the screw «B».
