WARNING
USED BATTERIES ARE HARMFUL FOR THE ENVIRONMENT. COLLECTION
AND DISPOSAL SHOULD BE CARRIED OUT IN COMPLIANCE WITH REGULA-
TIONS IN FORCE.
03_17
03_18

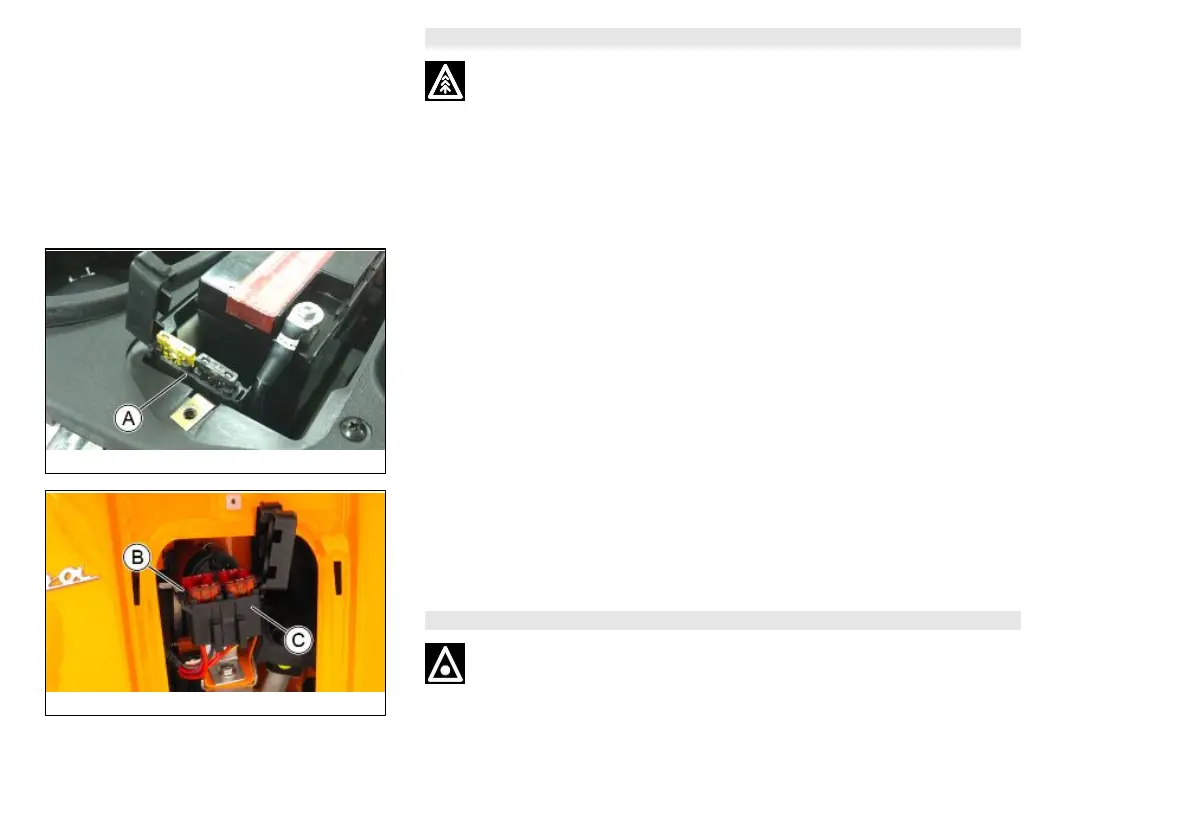

Fuses (03_17, 03_18, 03_19, 03_20, 03_21, 03_22)
The electrical system is protected by:
- a 20A and a 10A fuse in terminal block «A» located in the battery compartment under
the saddle;
- 10A and a 7.5A fuse in terminal block «B», two x 7.5A fuses in terminal block «C»
located inside the front shield under the steering cover;
To reach them:
- Using a screwdriver, remove the clip-on badge «D».
- Unscrew the screw «E».
- Turn the handlebar completely to one side. Push the steering column cover upwards
and pull to release the retaining tongues.
Before replacing a fuse, find and solve the failure that caused it to blow. Do not replace
the fuse with any alternative form of conductor
CAUTION
IN ORDER TO AVOID DAMAGING THE ELECTRICAL SYSTEM, NEVER DISCON-
NECT THE WIRING WHILE THE ENGINE IS RUNNING. DO NOT TIP THE VEHICLE
TOO MUCH IN ORDER TO AVOID DANGEROUS LEAKAGE OF THE BATTERY
ELECTROLYTE.
