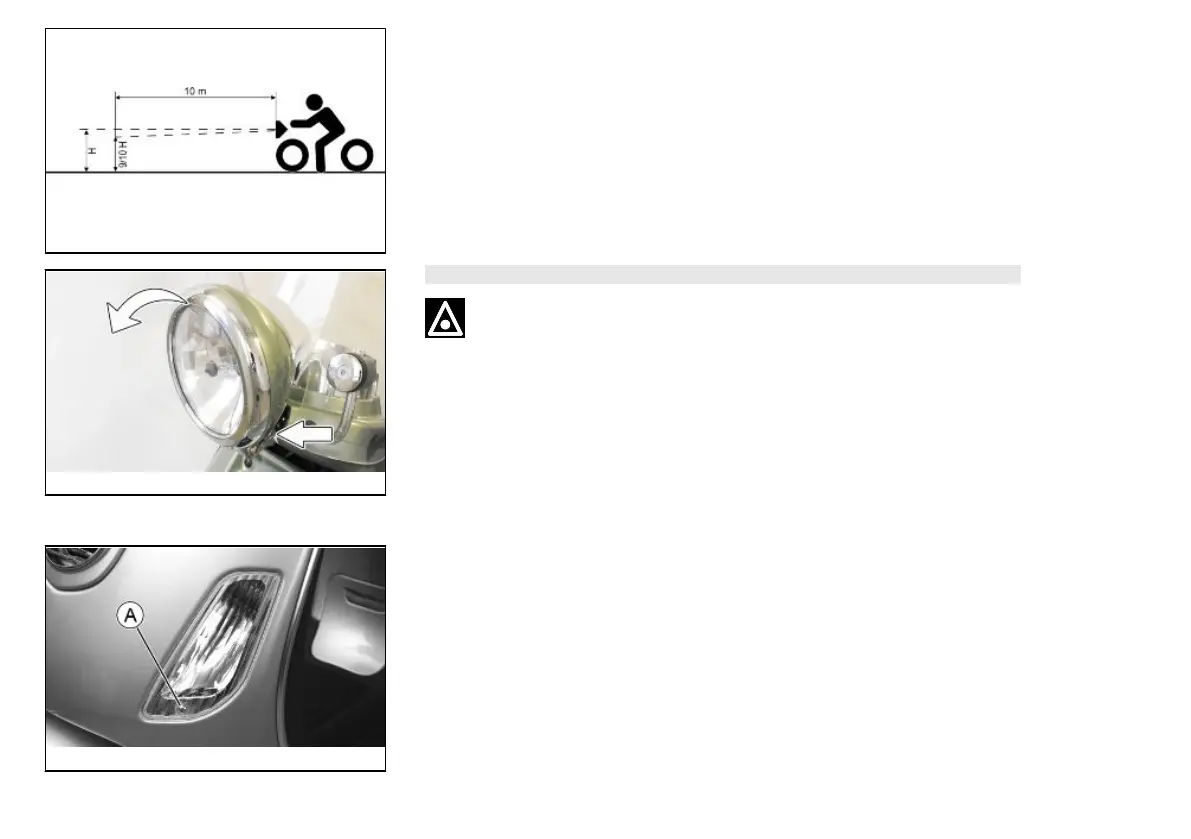

Head light adjustment (03_27, 03_28)
Proceed as follows:
1. Position the vehicle in running order and with the tyres inflated to the prescribed
pressure, onto a flat surface 10 m away from a half-lit white screen; ensure that the
longitudinal axis of the vehicle is perpendicular to the screen;
2. Turn on the headlight and check that the boundary of the light beam projected onto
the screen is not higher than 9/10 or lower than 7/10 of the distance between the centre
of the headlight and the ground;
3. Otherwise, adjust the right headlight with screw «A».
CAUTION
DO NOT CARRY ANY GARMENTS ON THE FRONT HEADLIGHT ASSEMBLY.
THIS MAY CAUSE BULBS TO OVERHEAT AND THEREFORE ABNORMAL
WEAR.
03_29
Front direction indicators (03_29, 03_30)
To replace the bulbs:
1. Remove the turn indicator from its fitting by undoing the screw «A».
2. Take out the bulb holder «B» from its fitting by turning it anticlockwise.
3. Press the bulb, turn it anticlockwise and then take it out.
To refit, proceed in reverse order.
