FUSES

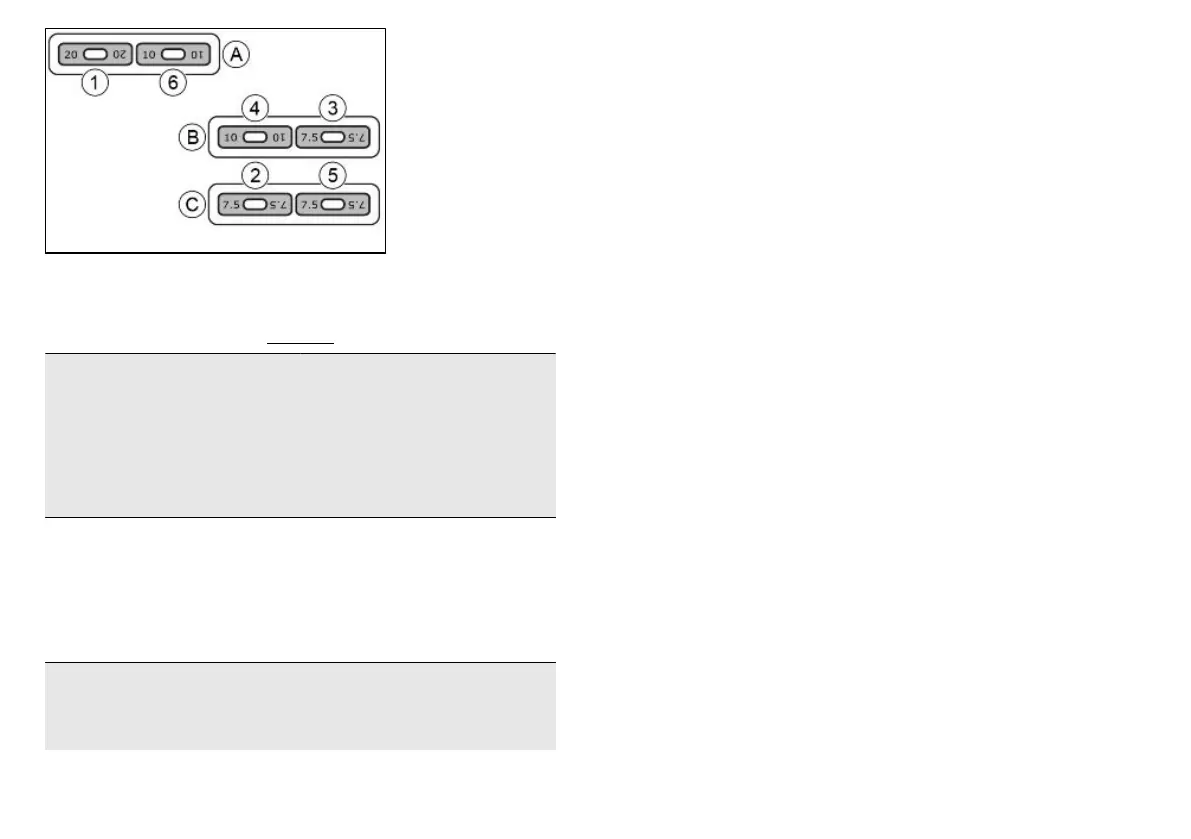

Fuse No. 1 Capacity: 20A
Protected circuits: battery-
powered recharge system and
fuse No. 4. Live power supply to
fuses No. 2, 3 and 5.
Location:battery compartment.
Fuse No. 2 Capacity: 7.5A
Protected circuits: live power
supply to injection load solenoid,
Immobilizer aerial, ECU.
Location:steering cover.
Fuse No. 3 Capacity: 7.5 A
Protected circuits: live power
supply to instrument panel, horn,
55
