VEVOR S1610 - Machine Assembly

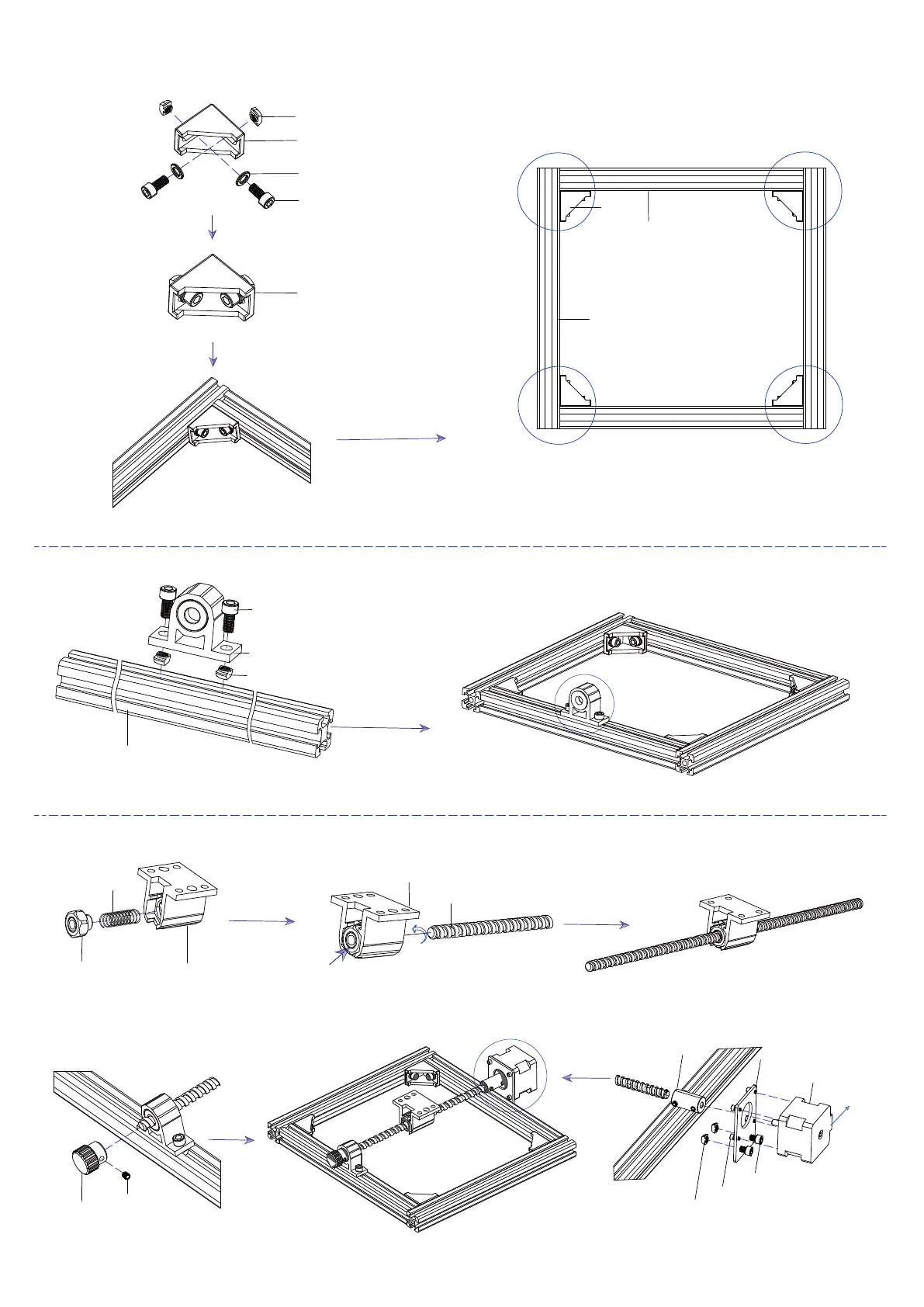

Step ①
Step ②
Step 
11: T8 Nut 1PCS
19: Spring 1PCS
16: Nut support seat 1PCS
04: Right angle connector
2028 1PCS
28: Washer 2PCS
26: Ship nut M5 -10 2PCS
23: M5*10 Screw 2PCS
02Aluminum profile
2020*220 mm 2PCS
03Aluminum profile
2020*235mm 2PCS
4Set
02Aluminum profile
2020*220 mm 1PCS
First assemble 12 sets of
components for reserve
Press T8 nut to the bottom and
turn Y Lead screw at the same time
16: Nut support seat 1PCS
09: Y Lead screw T8*230mm 1PCS
29: M4*5 1PCS
20: Hand knob Φ8mm 1PCS
24: M5*8 2PCS Screw
12: Stepper motor 1PCS
D
i
r
e
c
t
i
o
n
o
f
c
o
n
n
e
c
t
i
n
g
w
i
r
e
13: Mounting for motor 1PCS
25: M3*6 4PCS Screw
26: M5-10 2PCS Ship nut
17: Y-bearing support seat 1PCS
23: M5*10 2PCS Screw
26: Ship nut M5 -10 2PCS
2. Machie Aeb
14: Muff coupling 1PCS
3/14
S1610 Ver 1.2
