12: T8 Nut 1PCS
20: Spring 1PCS
Component A
Component A
33: ER11 1Set
33: ER11 assembly
32: M4*5 1PCS
22: Hand knob Φ5mm 1PCS
09: X Lead screw
T8*403mm 1PCS
Component A
06: 2040 1PCS
28: M5-10 4PCS
Ship nut
24:M5*10 4PCS
Screw
2Set
2Set
2Set
56mm
4Set
07: X Smooth axis
Φ10*400mm 2PCS
Step ⑦
Step ⑧
Step ⑨

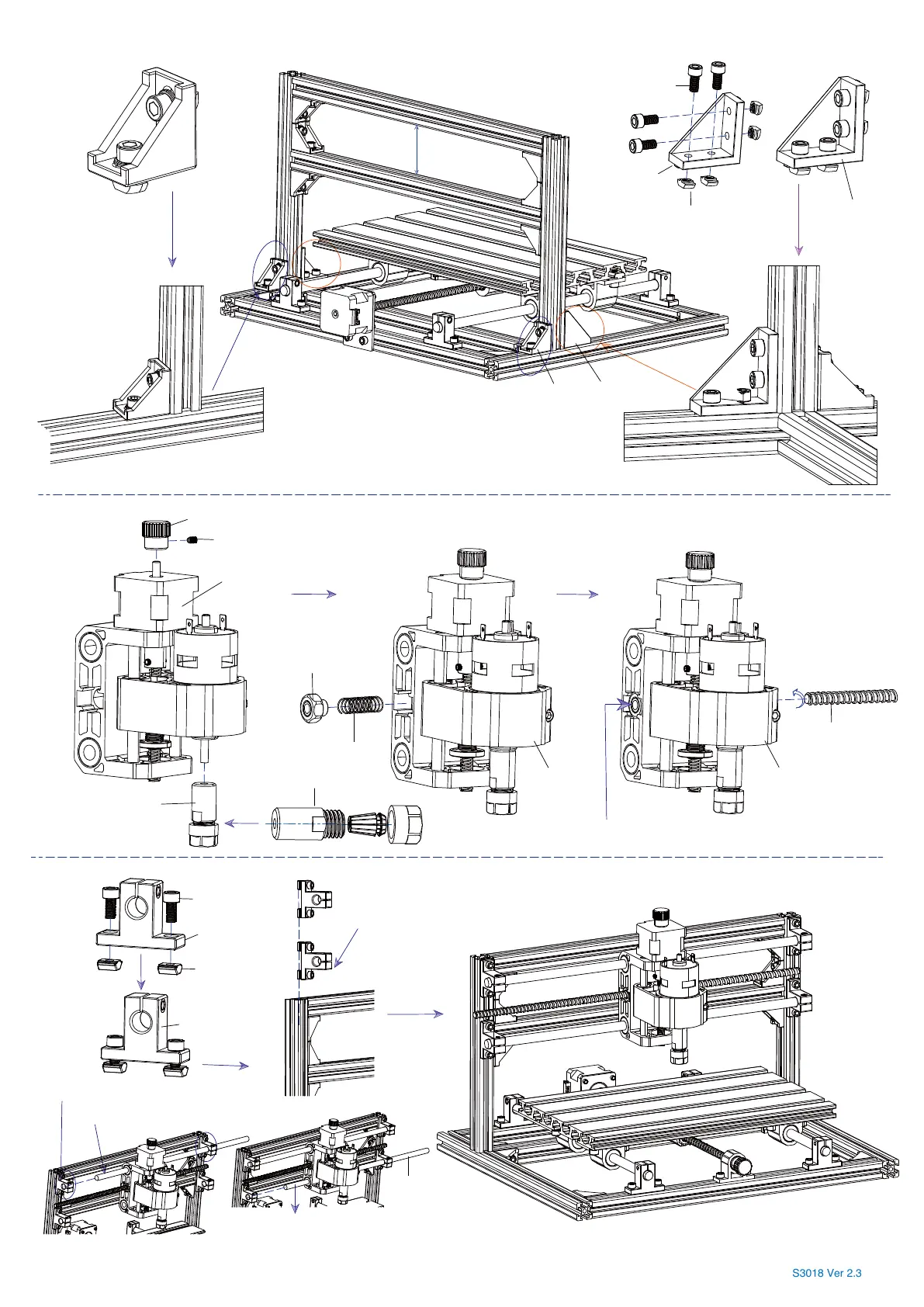

⑨-1.The support for smooth axis slides into
the aluminum profile T-slot from the top
⑨-2. First, fix the above two 11 (Support for
smooth axis) on the aluminum profile.
⑨-3. Then, component A and 07（X Smooth axis）are
assembled on the 11（Support for smooth axis).
⑨-4. Finally, assemble 07（X Smooth axis）,
adjust component A to left-right movement is smooth,
fixt the 11（Support for smooth axis）.
Press T8 nut to the bottom and turn X Lead screw at the same time
5/14
24: M5*10 2PCS
Screw
29: Trapezoidal nut
M5-20 2PCS
11: 1PCS Support for
smooth axis
S3018 Ver 2.3
To Next Page
