2-5-3 PCI Express Slot

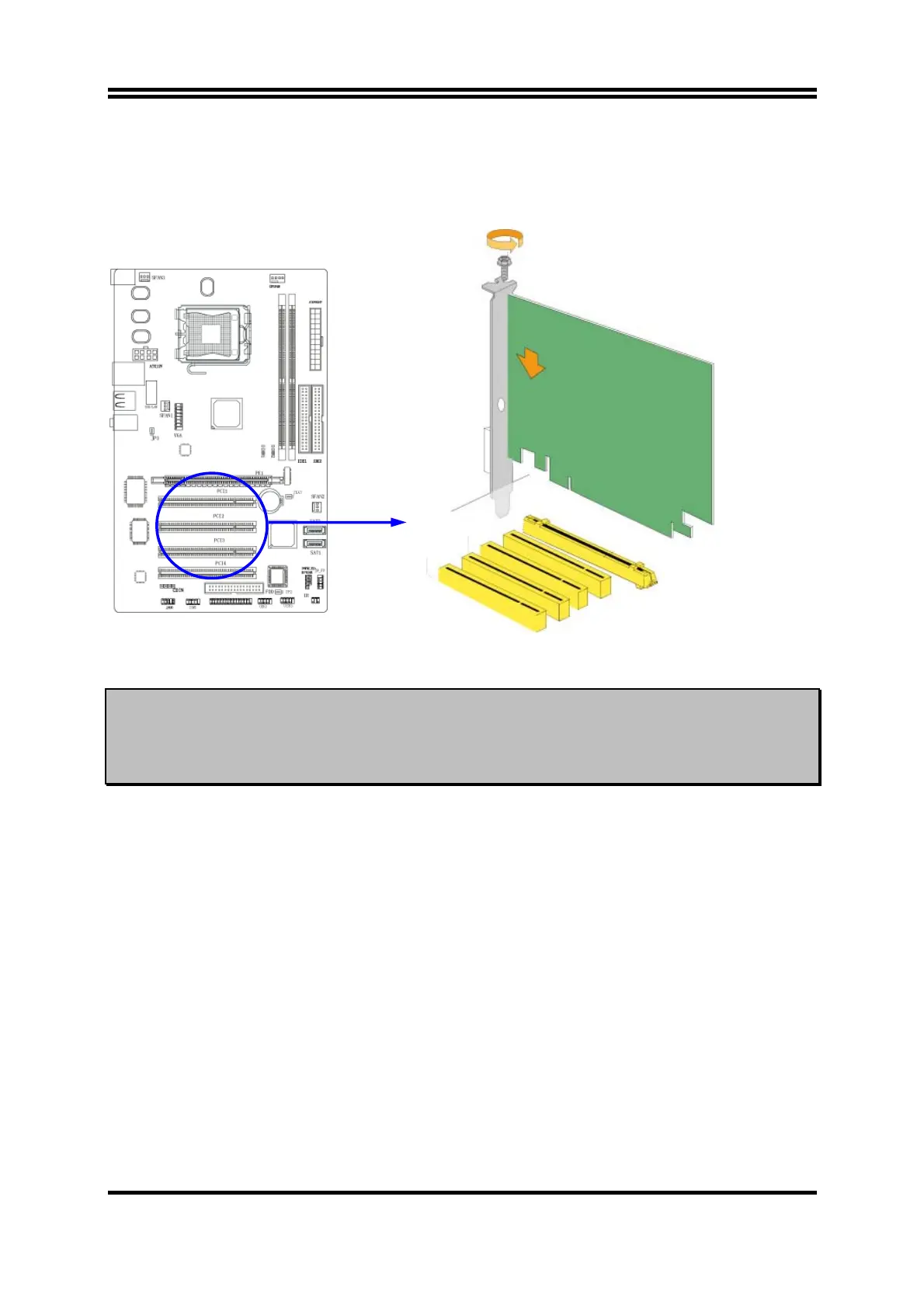

This motherboard provides one 16-lane PCI Express slot which offers 4Gbyte/sec data
transfer rate at each relative direction intended for Video Graphics Array.
IMPORTANT!
To install the single PCI EXPRESS x16 interface supported VGA card to get the full
speed of x16 bandwidth in the PCI EXPRESS x16 slot as being marked above. If you
utilize the EXPRESS x16 slot to support the VGA card as the external display, please
disabled the integrated VGA card in BIOS.
PCI-E x16 of full bandwidth
VGA Signal Output
PCI-E x1 Slot
32-bit PCI slot
