25
2-6-2 Headers

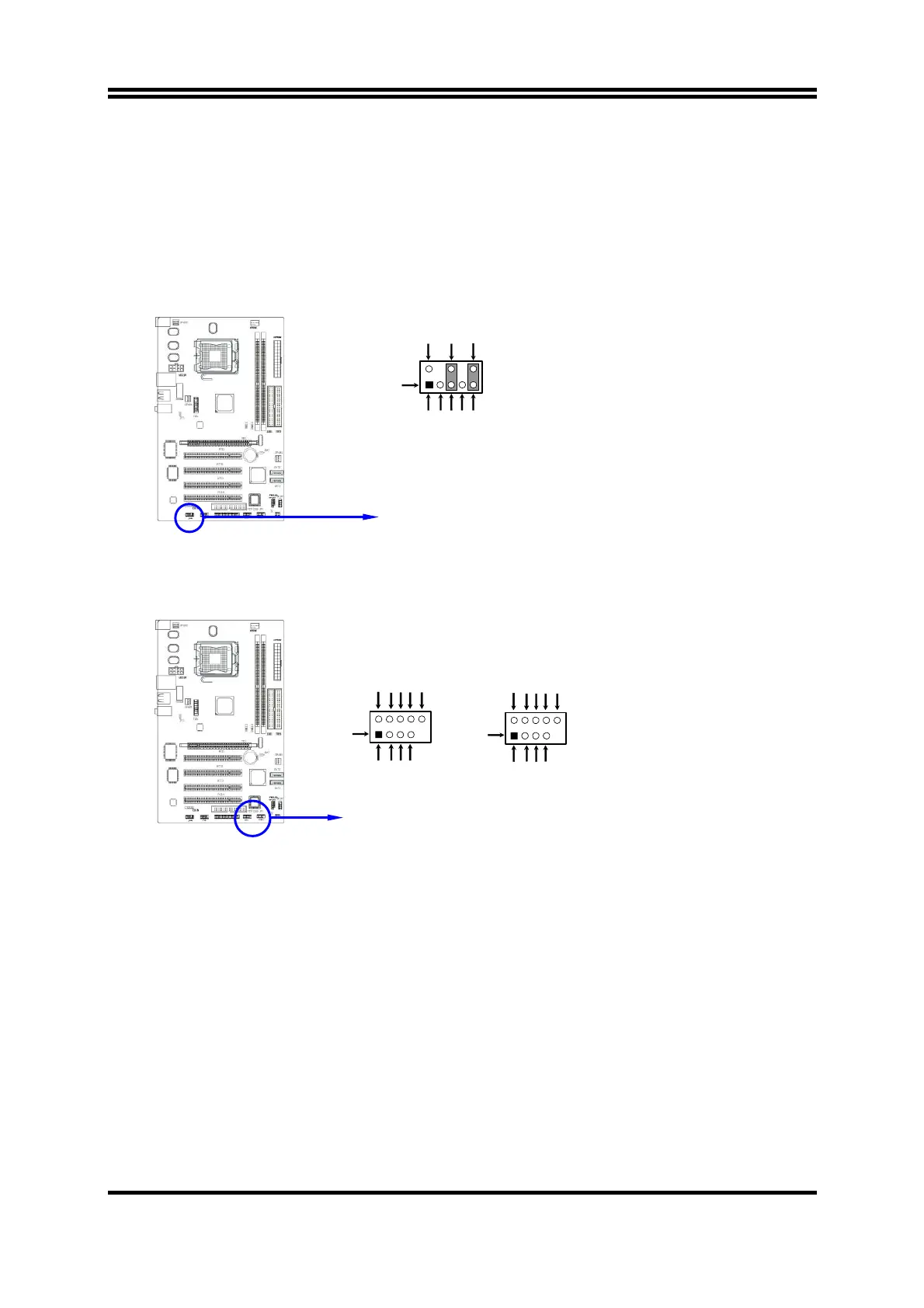

(1) MIC Header for Front Panel (9-pin): JAUDIO
This header connect to Front Panel Line-out, MIC connector with cable.
Without install the cable, this header default setting is 5-6 short, 9-10 short. When you
install the cable you have take off these jumpers.
Line-Out, MIC Headers
AUDIO
Pin 1
AUD
_
MIC
AUD
_
FPOUT
_
L
AUD
_
MIC
_
BIAS
AUD
_
FPOUT
_
R
HP
_
ON
AUD
_
GND
AUD
_
RET
_
L
AUD
_
RET
_
R
2
9
10
(2) USB Port Headers (9-pin) : USB2/USB3
These headers are used for connecting the additional USB port plug. By attaching an
option USB cable, your can be provided with two additional USB plugs affixed to the
back panel.
USB Port Headers
Pin 1
USB2
VCC
-DATA
GND
+DATA
VCC
OC
-DATA
GND
+DATA
Pin 1
USB3
VCC
-DATA
GND
+DATA
VCC
OC
-DATA
GND
+DATA
(3) IDE Activity LED: HD LED
This connector connects to the hard disk activity indicator light on the case.
(4) Reset switch lead: RESET
This 2-pin connector connects to the case-mounted reset switch for rebooting your
computer without having to turn off your power switch. This is a preferred method of
rebooting in order to prolong the lift of the system’s power supply. See the figure
below.
(5) PC Speaker connector: SPEAK
This 4-pin connector connects to the case-mounted speaker. See the figure below.
(6) Power LED: PWR LED
The Power LED is light on while the system power is on. Connect the Power LED
from the system case to this pin.
To Next Page
