24
•
Two hard disks can be connected to each connector. The first HDD is referred to as the
“Master” and the second HDD is referred to as the “Slave”.
•
For performance issues, we strongly suggest you don’t install a CD-ROM or DVD-ROM
drive on the same IDE channel as a hard disk. Otherwise, the system performance on this
channel may drop.

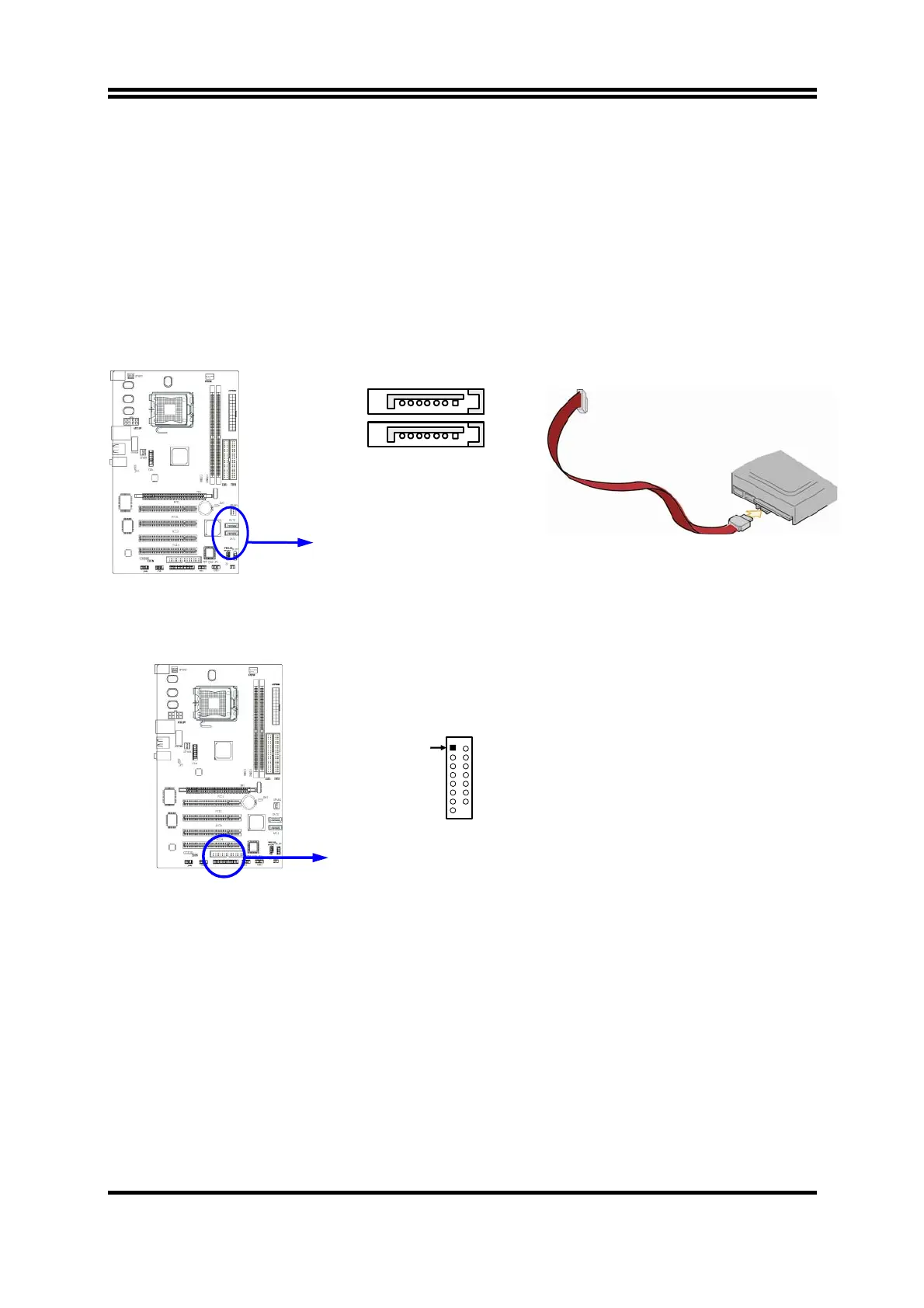

(11) Serial-ATA Port connector: SATA1 / SATA2
The connectors support Serial ATA
hard disk drives with cables for
connecting the motherboard and serial ATA hard disk drives.
Serial-ATA Port Connector
SATA2
SATA1
(12) VGA Connector (15-pin Block): VGA
VGA is the 15-pin block pin-header for monitor displaying.
Pin 1
VGA Pin-header
