22

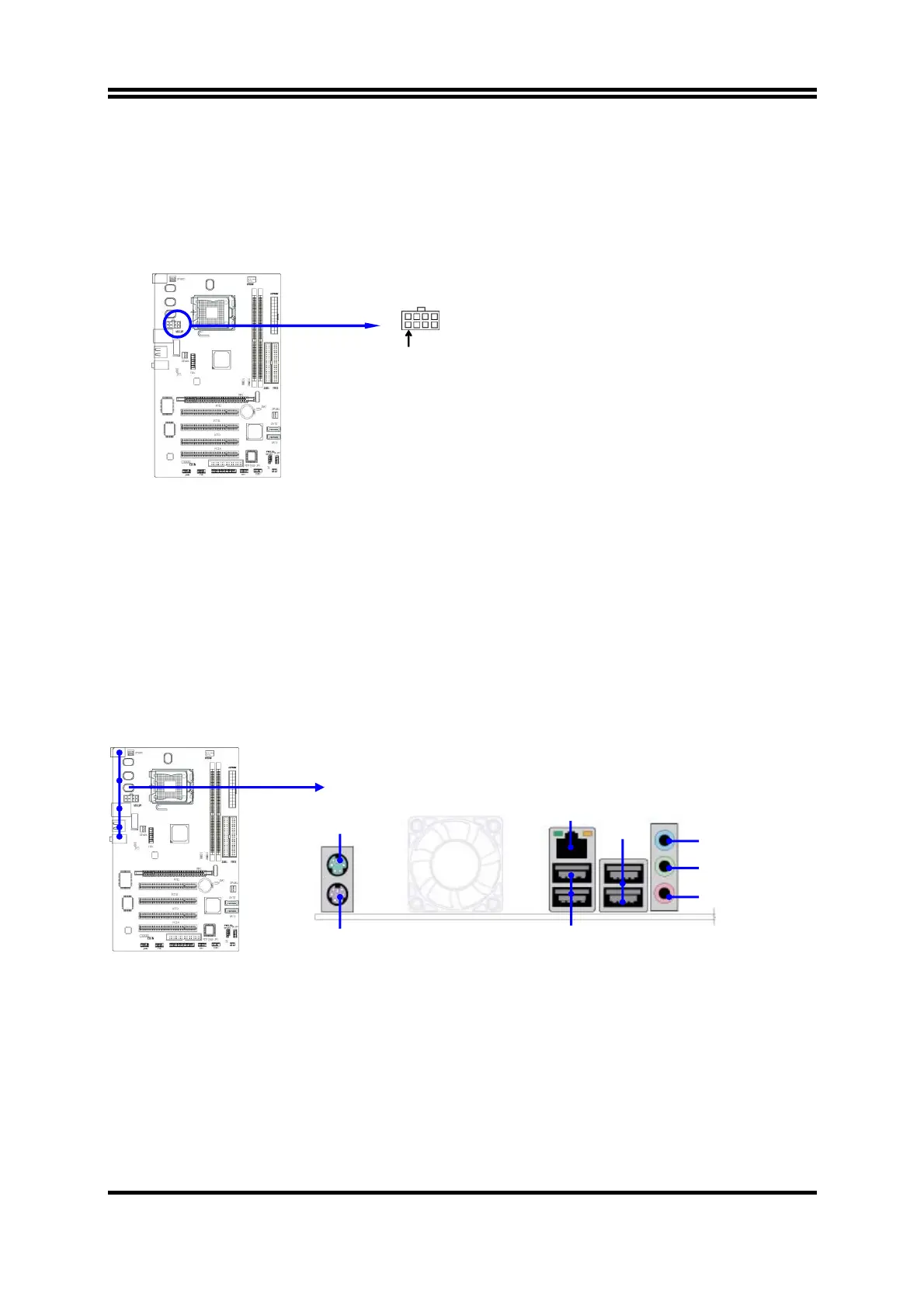

(2) ATX 12V Power Connector (8-pin block) : ATX12V
This is a new defined 8-pins connector that usually comes with ATX Power Supply. The
ATX Power Supply which fully support Intel Core 2 Duo processor must implement
this connector for support extra 12V voltage to maintain system power consumption.
Without this connector might cause system unstable because the power supply can not
provide sufficient current for system.
(3) PS/2 Mouse & PS/2 Keyboard Connector: PS2KBMS
The connectors for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector: UL2
The connectors are 4-pin connector that connect USB devices to the system board.
(5) LAN Port connector: UL1
This connector is optional standard RJ45 connector for Network
(7) Audio Connector : CN3(LINE-OUT/ LINE_IN/MIC)
This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC.
Line-out :
Audio output to speaker
Line-in :
Audio input to sound chip
MIC :
Microphone Connector
LINE-OUT
LINE-IN
MIC
USB
UL2
PS/2 Keyboard
PS/2 Mouse
Optional RJ45 LAN
Pin 1
