IPScan Probe 600 User’s Guide
7
c. IPScan Probe 600 Composition
The package contains the following items.
 IPScan Probe 600 1 each
 IPScan Probe 600 User’s Guide 1 each
 Power cable 1 each
 RS232 serial console cable 1 each
 RJ45 cable for Ethernet connection 2 each
 19 inch rack mount 1 set
d. Panel Description

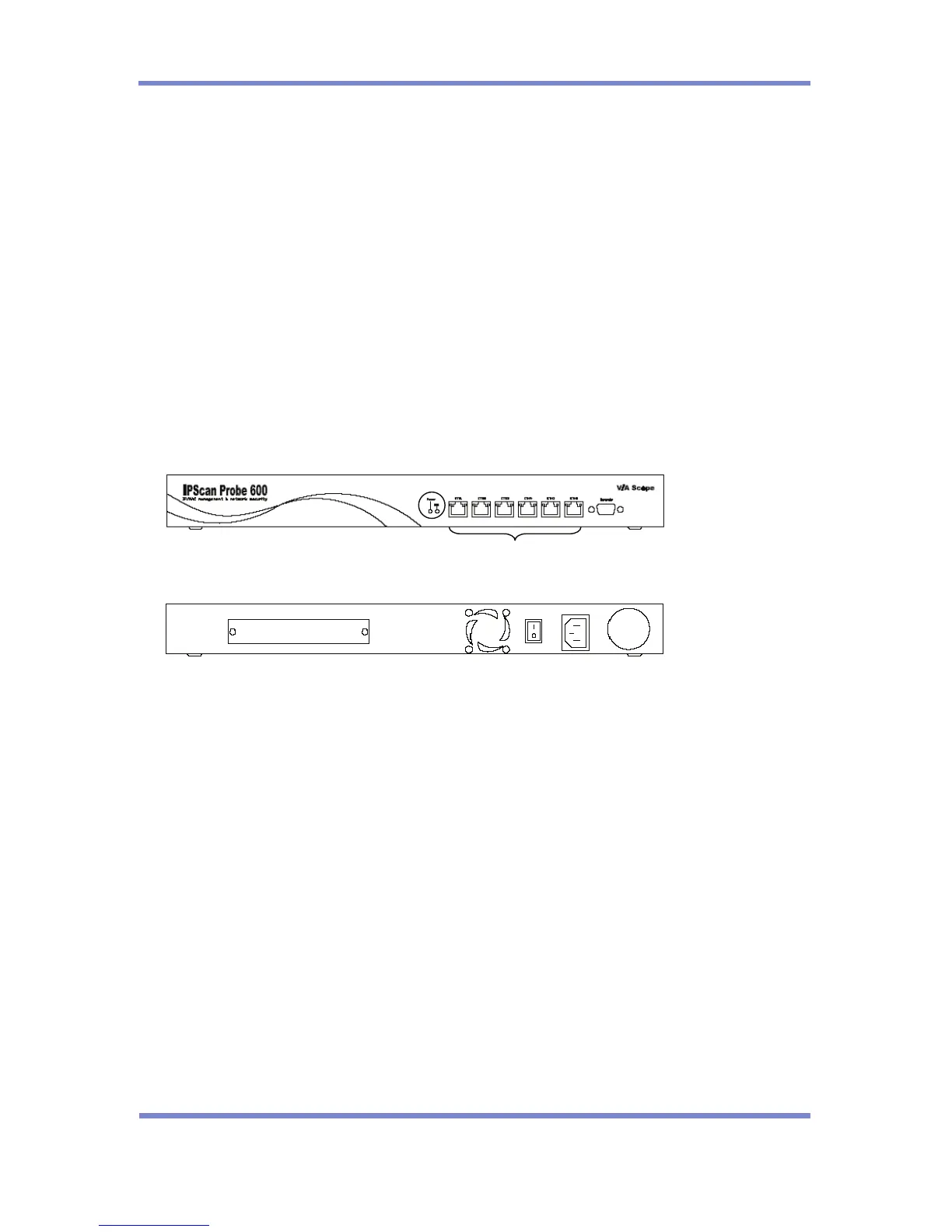

IPScan Probe 600 Front View
IPScan Probe 600 Rear View
 LED : Displays data processing and probe status.
¾ Power : lights green when the power is turned on.
¾ 10/100 : displays orange light when connected 10Mbps and green light when connected to
100Mbps network.
¾ Activity : displays green light when the probe is collecting data within the segment.
¾ Status: displays green light when the probe is successfully connected with the Server, and
blinks when the probe is disconnected.
 Ethernet : use RJ45 Ethernet cable to connect the probe on one end and the other end to the
network.
 Console : connect RS232 cable when configuring and managing the probe using the console.
 Power Switch : switch on to turn on the probe.
 Power : use power cable to input power.
①
②
③
④
⑤
