2

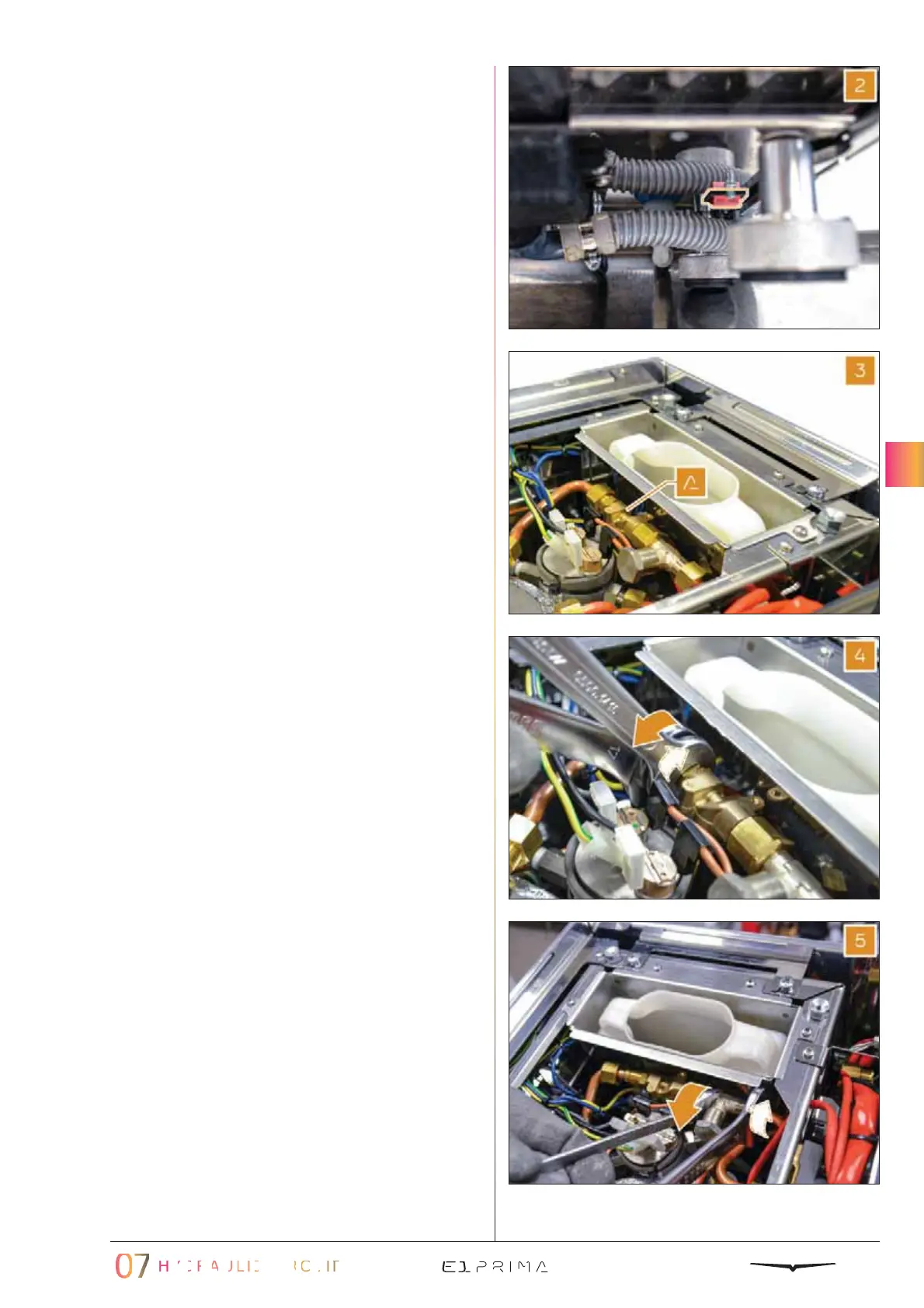

Turn the machine OFF.
3
Remove the cup holder surface. The
steam valve (A) is located on the right
side, between the tank and the coffee
boiler.
4
Utilizing a 14 mm and 17 mm wrenches,
remove the incoming copper pipe from
the boiler.
5
Utilizing a 13 mm and 17 mm wrenches,
keep the T connection and remove the
outgoing copper pipe.
