5.4 HEATING ELEMENT
The 1600 W heating element is removable
and it is accessible from the bottom of the
machine.

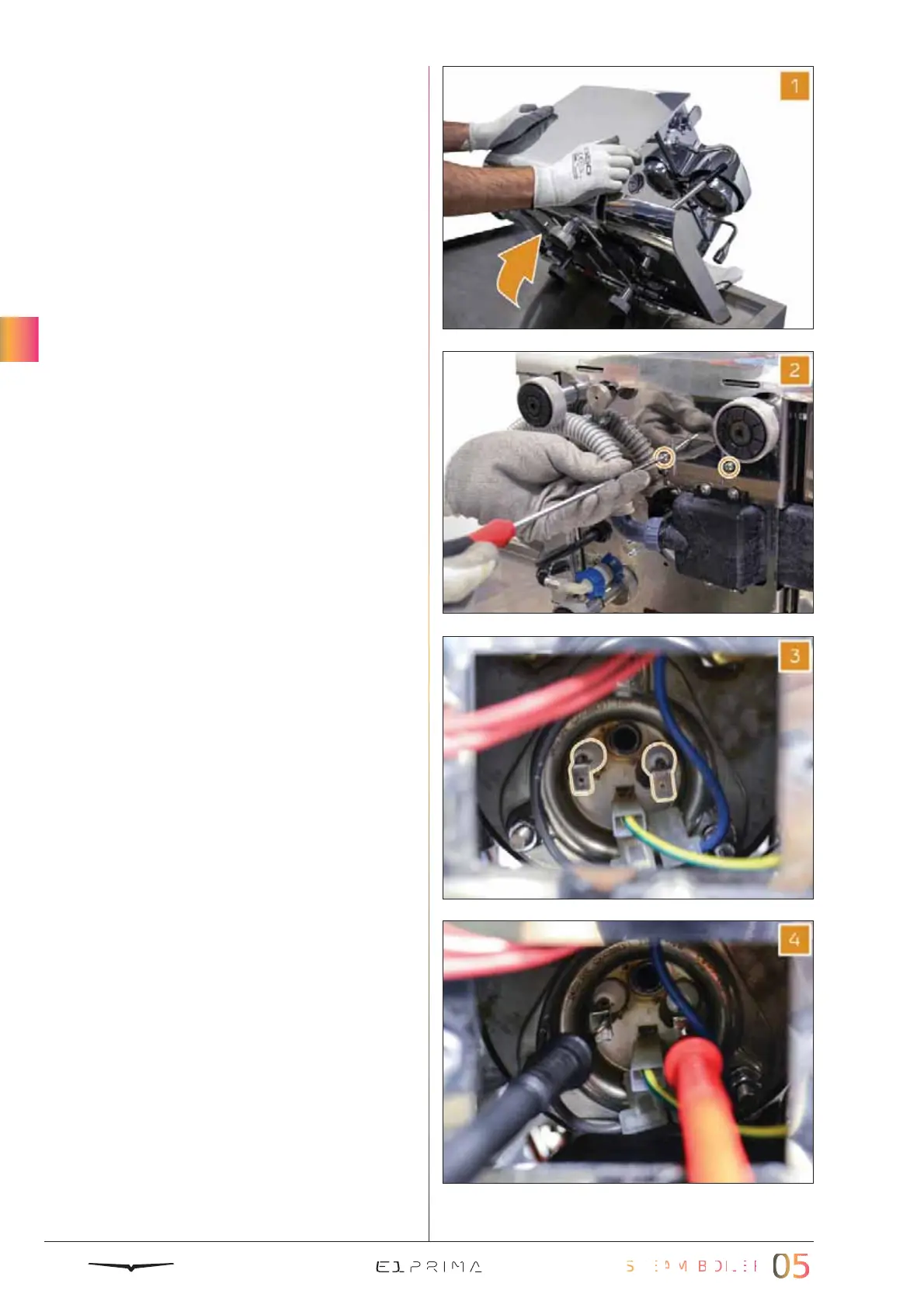

5.4.1 TEST THE HEATING ELEMENT
To test the heating element, proceed as it
follows:
1
Rotate the machine on the right side, be-
ing careful to not damage it.
2
Utilizing a Philips screwdriver, remove the
two screws that keep the base cover.
3
Disconnect the electrical resistance ca-
bles. For easier access, it is useful to re-
move the safety thermo-fuse too.
4
Utilizing a tester, check the heating ele-
ment (value 34 ± 2 Ohm).
