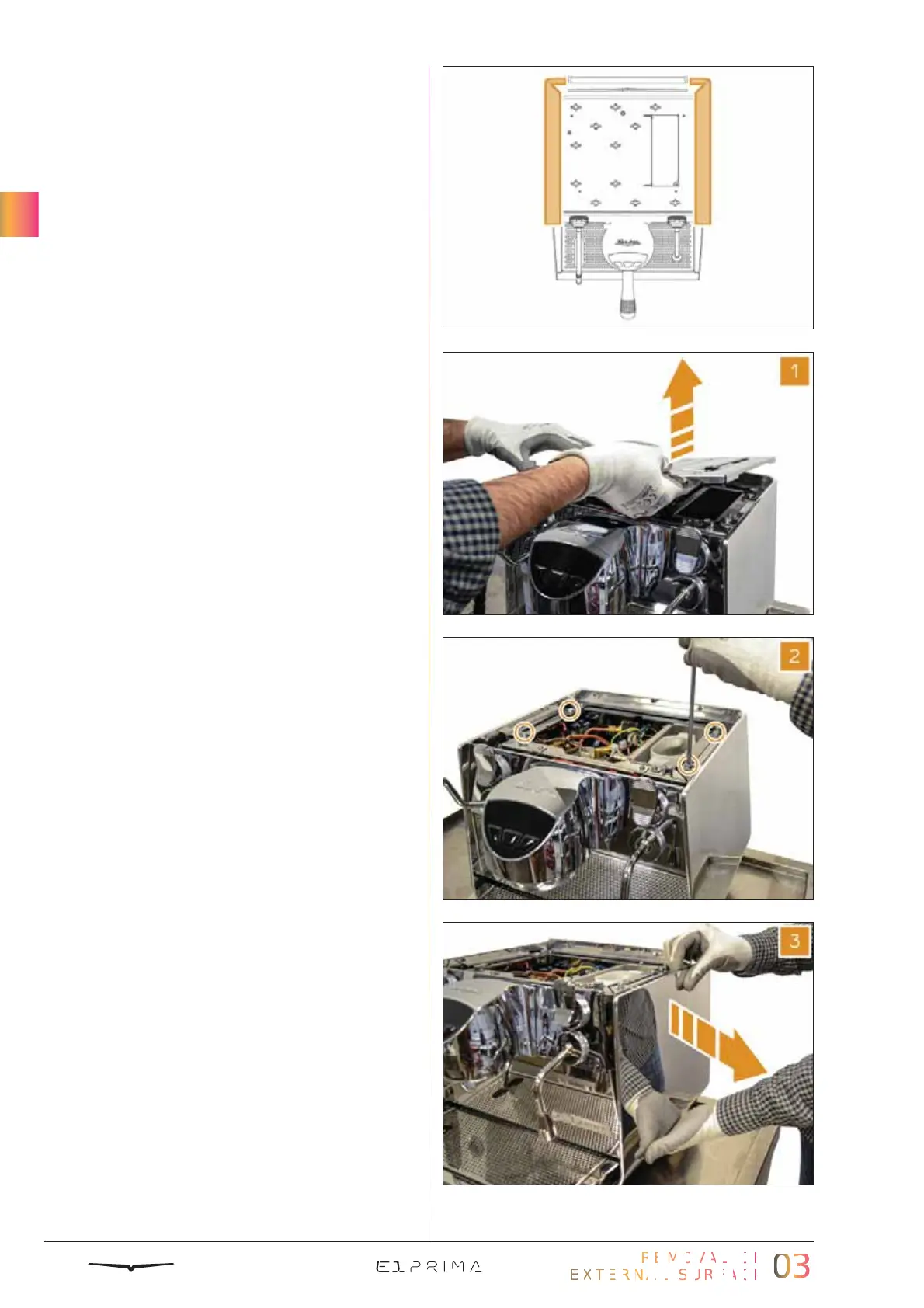

3.2 REMOVAL OF
THE SIDE PANELS
The procedure is identical for each side
panel.
To remove one side panel, it is necessary to:
1
Remove the cup holder surface.
2
Utilising a Philips screwdriver, loosen the
screws on the upper part.
3
Put a hand below the side panel and with
the other hand slide it out.
