8.8 WATER TANK PRESENCE
SENSOR
The water tank presence sensor is a capac-
itive sensor that recognises the presence of
water in the tank.
If it does not work, check its connection and
replace it if needed.
Proceed like it follows:

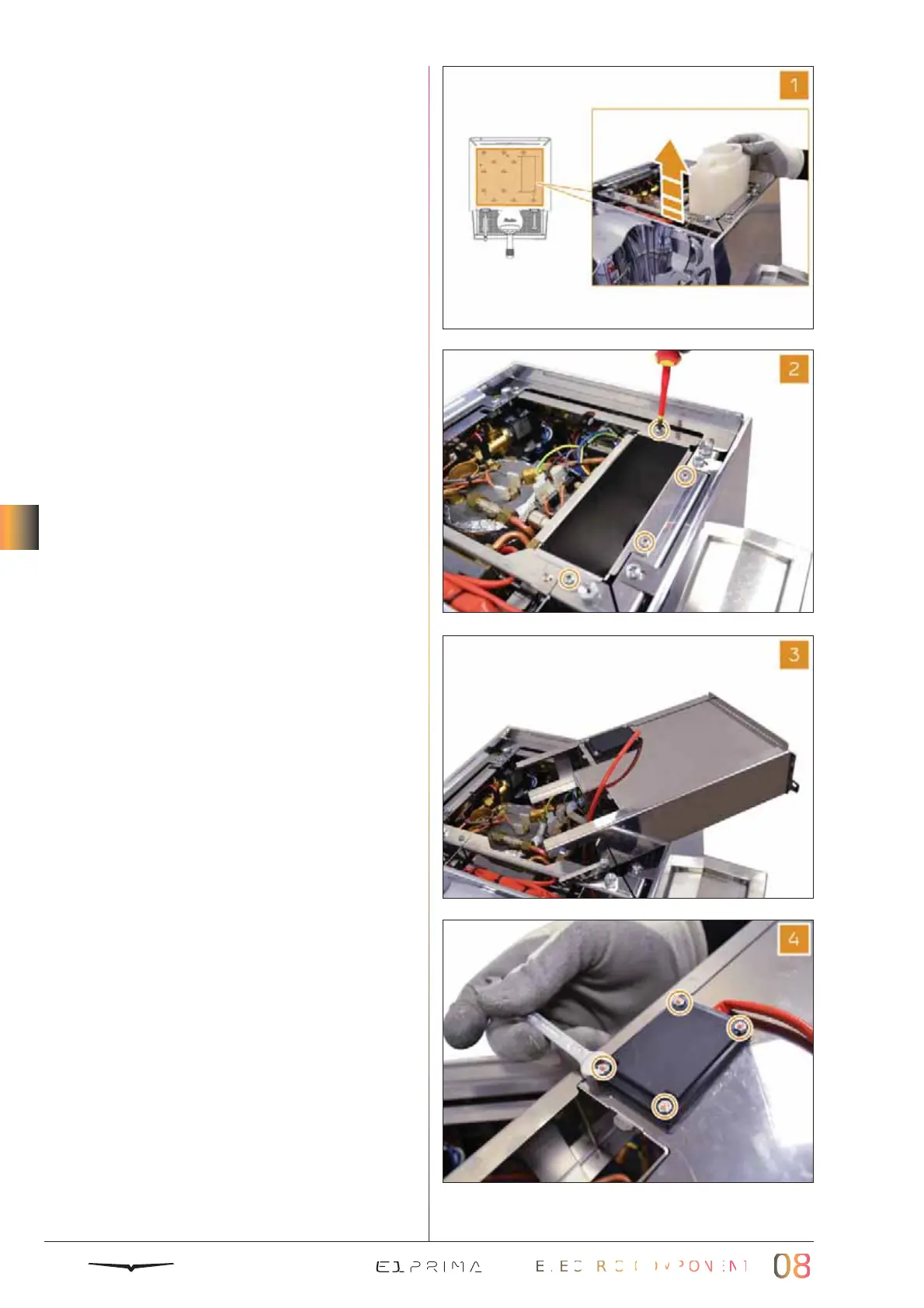

1
Remove the cup holder surface and the
water tank, as described in Chapter 3.
2
Utilizing a Philips screwdriver, remove the
4 screws of the water tank support.
3
Extract the water tank support and place
it on the machine.
4
Utilizing a 5,5 mm wrench, remove the
four nuts fixing the sensor cover and
open it.
