7.9 STEAM, HOT WATER AND
EASYCREAM (OPTIONAL)
WANDS
All wands are composed of a joint, a junc-
tion and a nozzle. These parts are equipped
with o-rings to avoid leaks.
Steam and Easycream (optional) wands
are “cool touch” type. Thanks to the pres-
ence of an internal Teflon pipe, do not heat
up quickly. In this way, the barista has the
chance to work more comfortably even on
an ongoing basis, without the fear that the
steam wand may reach excessive temper-
atures.
WHEN TO INTERVENE
In case of leaks or of low flow it can be nec-
essary to dismantle the wand to replace
o-rings, or the Teflon pipe, or to clean the
water diffuser head.
NOTE
To know standard suggested mainte-
nance on the wands, refer to Chapter 11.

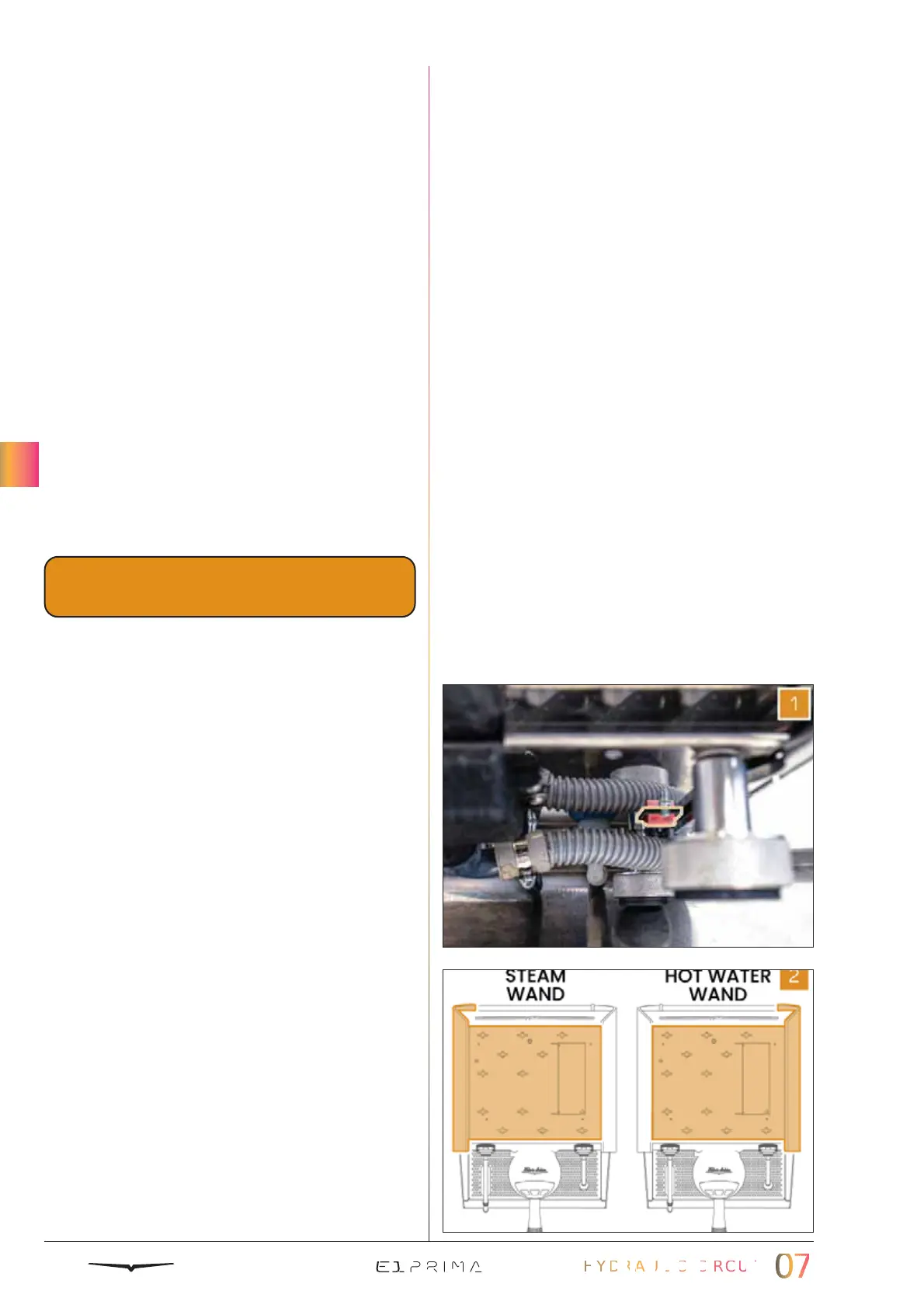

7.9.1 DISMANTLING THE WAND
The procedure to dismantle steam, hot
water and Easycream wands, is basically
the same. Proceed as it follows.
1
Turn the machine OFF.
2
Remove the cup holder surface and the
left side panel, in case of the steam wand,
or remove the cup holder surface and the
right side panel for the hot water wand as
described in Chapter 3.
