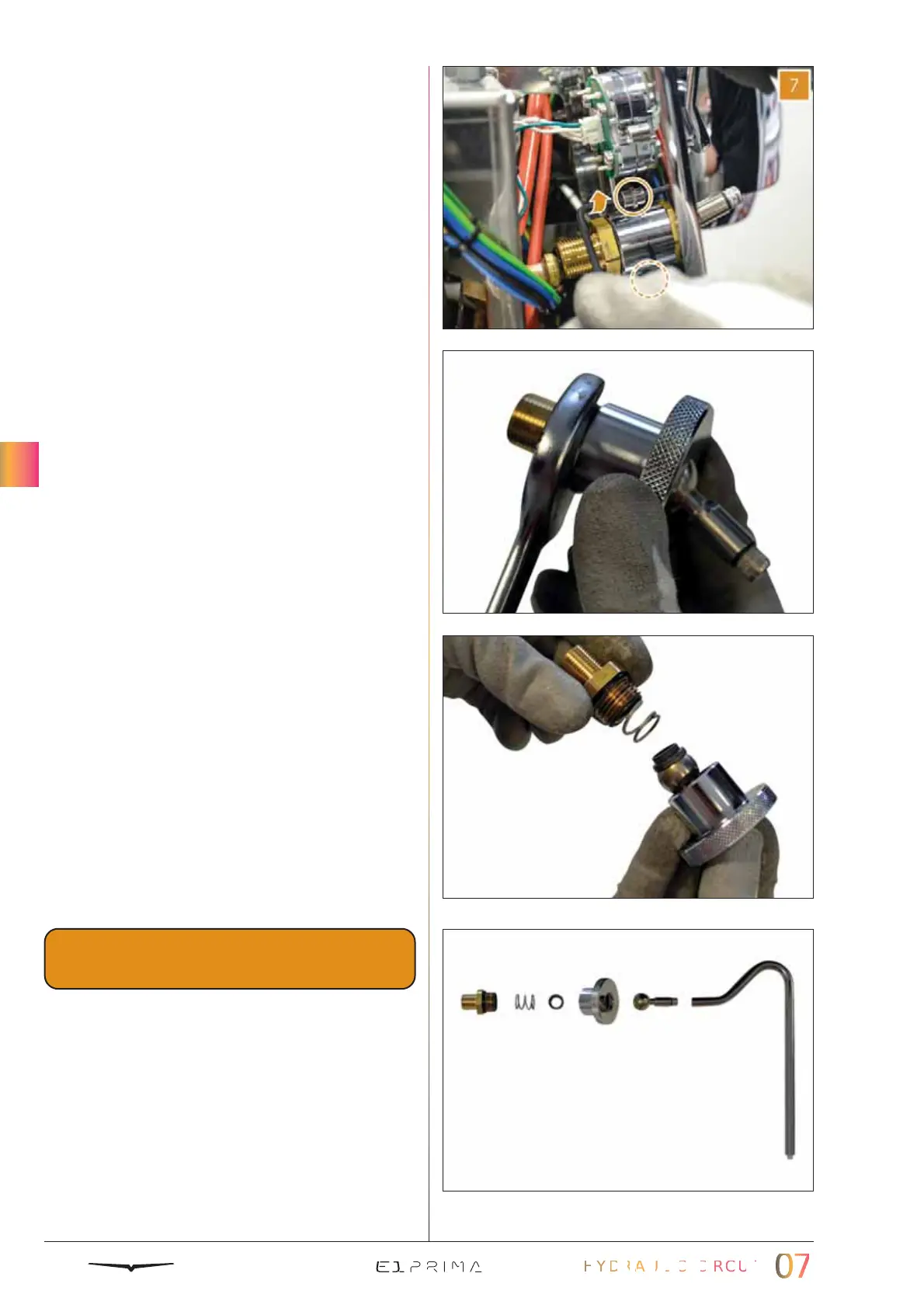

Utilizing a 3 mm Allen key, remove the two
screws keeping the joint of the wand.
8
Utilizing a 24 mm wrench or simply by
hand, remove the fitting.
9
The junction is visible now, with its spring.
Notice that there is a white Teflon o-ring
inside the joint.
NOTE
The steam wand is composed by many
parts equipped with different o-rings
and Teflon pipe. It can be needed to
change o-rings in case of leaks and to
change the Teflon pipe in case of low
steam flow.
