7.11 REMOVAL OF
THE PRESSURE GAUGE
The E1 PRIMA is provided with a pressure
gauge that permits to read the steam boiler
pressure.
To remove it, proceed as it follows:
1
Lower the steam boiler pressure by fol-
lowing the procedure described in para-
graph 5.1.
NOTE
It is not possible to operate with pres-
sure in the steam boiler.
2
Turn the machine OFF.
3

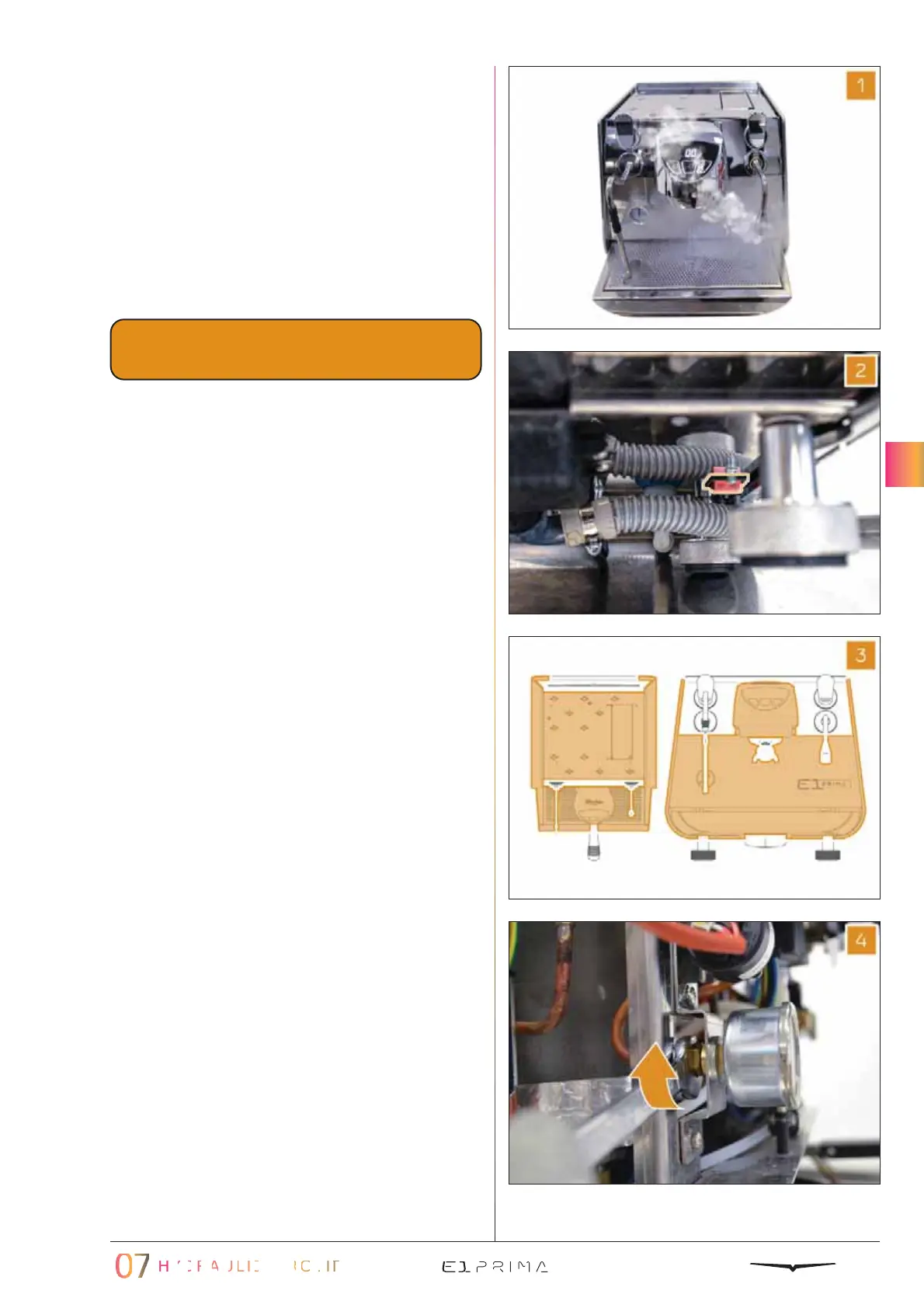

Remove the cup holder surface, the side
panels, the drip tray and the lower front
panel as described in Chapter 3.
4
Utilizing a 13 mm wrench, unscrew the
copper pipe.
