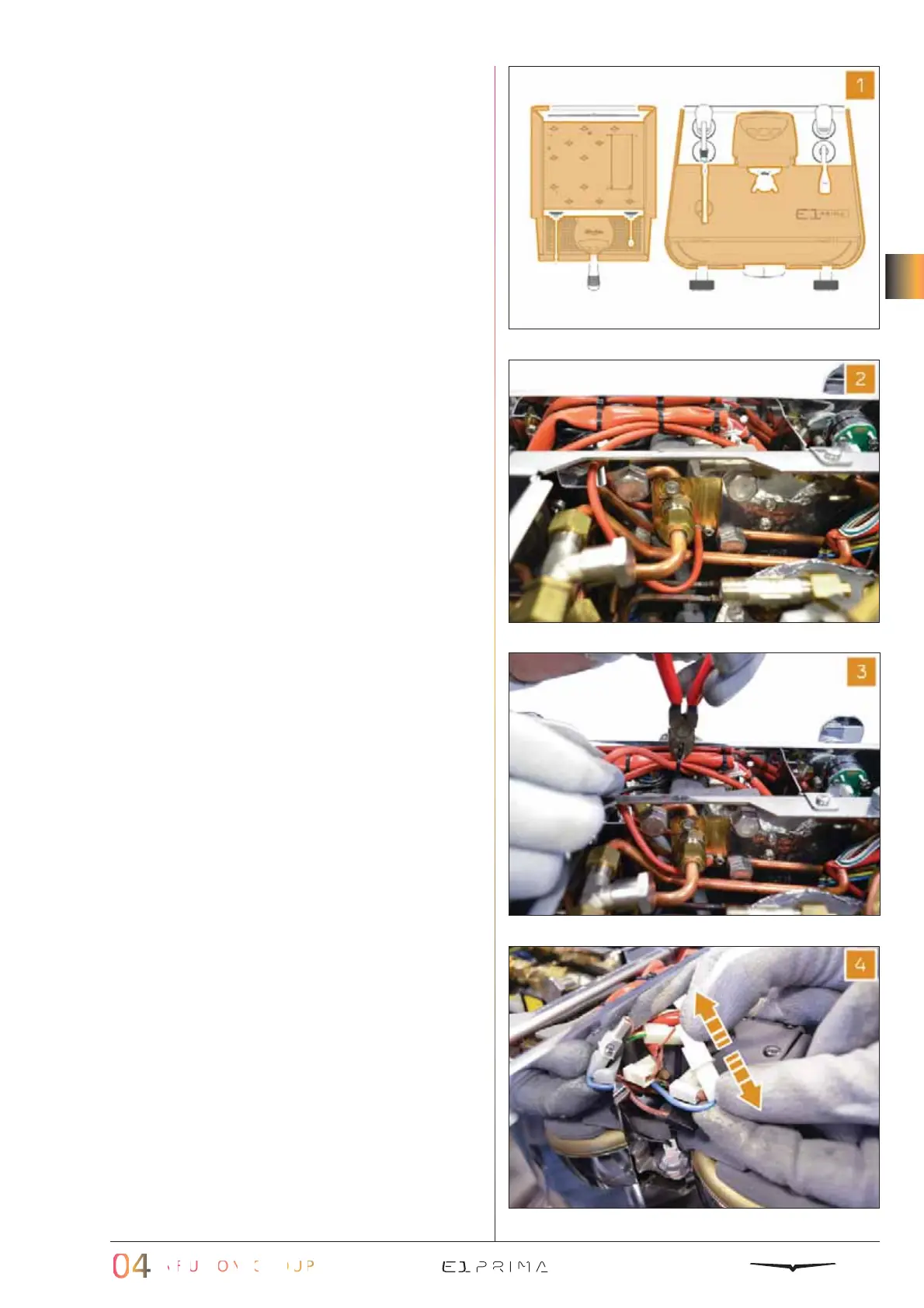

4.4.1 REMOVAL OF
THE HEATING ELEMENT
The heating element cartridge is accessible
from the rear wall that holds the infusion
group.
To remove it, proceed as it follows.
1
Remove the cup holder surface, the side
panels, the drip tray, the lower front pan-
el and the group cover, as explained in
Chapter 3.
2
Remove the coffee boiler as described in
Chapter 6.
3
Following the orange cable, cut the
clamps to release the cable.
4
Following the orange cable, disconnect
the heating element from the neutral and
from the high-limit thermostat.
24
24
25
25
23
23
22
22
