2

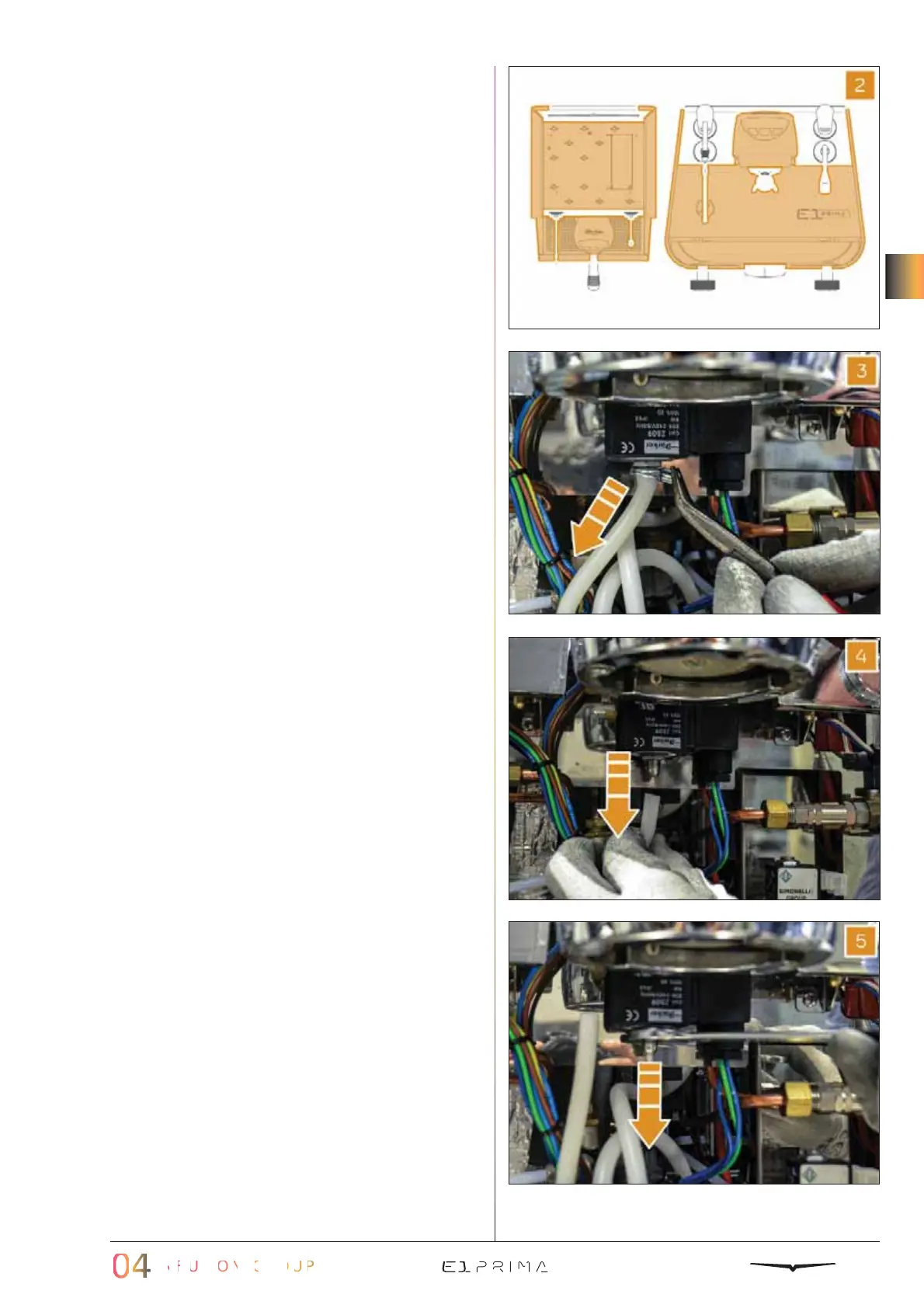

Remove the side panels, the drip tray, the
lower front panel and the group cover, as
explained in Chapter 3.
3
Utilizing plier, remove the clip keeping the
Teflon pipe of the third outlet.
4
Disconnect the Teflon pipe of the third
outlet.
5
Utilizing a 14 mm wrench, unscrew the fix-
ing nut of the coil.
38
38
39
39
37
37
40
40
04
