Victoria Arduino EAGLE ONE PRIMA Service Manual

60
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
S
S
S
S
T
T
T
E
E
EA
A
A
M
M
M
B
B
B
O
O
O
I
IL
L
L
E
E
ER
R
R

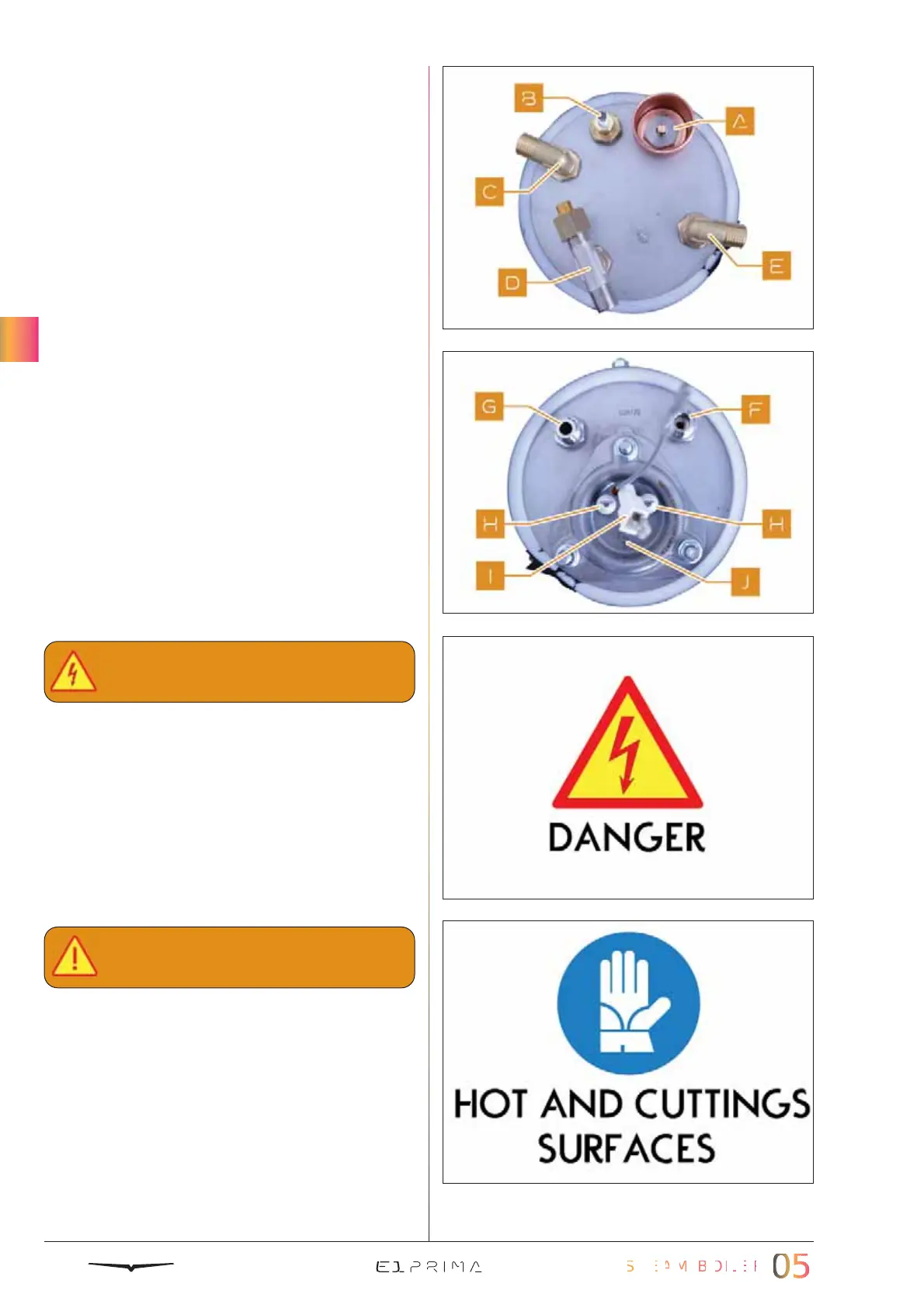

The E1 PRIMA is provided by a Stainless-
Steel boiler of 1,5 l. It is covered by thermal
insulation to prevent heat dispersion and it
is equipped with the following parts.
On the top:
A
An anti-suction valve, to ensure that
air enters the boiler during the ma-
chine cooling phase.
B
A level probe, to maintain a constant
water level inside the boiler.
C
A pressure sensor connection fitting,
to read the boiler pressure.
D
A 3 bar safety valve connection fitting.
E
A steam solenoid valve connection
fitting.
On the bottom:
F
A water inlet connection fitting.
G
A hot water solenoid valve connec-
tion fitting.
H
A 1600 W heating element.
I
A 184°C safety thermo-fuse.
J
A ground connection.
DANGER
Except where specified, before pro-
ceeding with the following operations,
make sure that the machine is turned
OFF and unplugged from the mains.
Discharge any residual pressure pres-
ent in the steam boiler.
WARNING
If the machine was turned OFF recently,
protect yourself with thermal insulation
gloves.
03
03
01
01
02
02
04
04
05

Victoria Arduino EAGLE ONE PRIMA Specifications

General

Model	EAGLE ONE PRIMA
Category	Coffee Maker
Brand	Victoria Arduino
Type	Espresso Machine
Boiler Material	Stainless Steel
Voltage	220-240 V
Frequency	50/60 Hz
Steam Wand	Yes
Hot Water Tap	Yes
Group Heads	1
Material	Stainless Steel
Water Supply	Tank
Color Options	Black, White, Red
