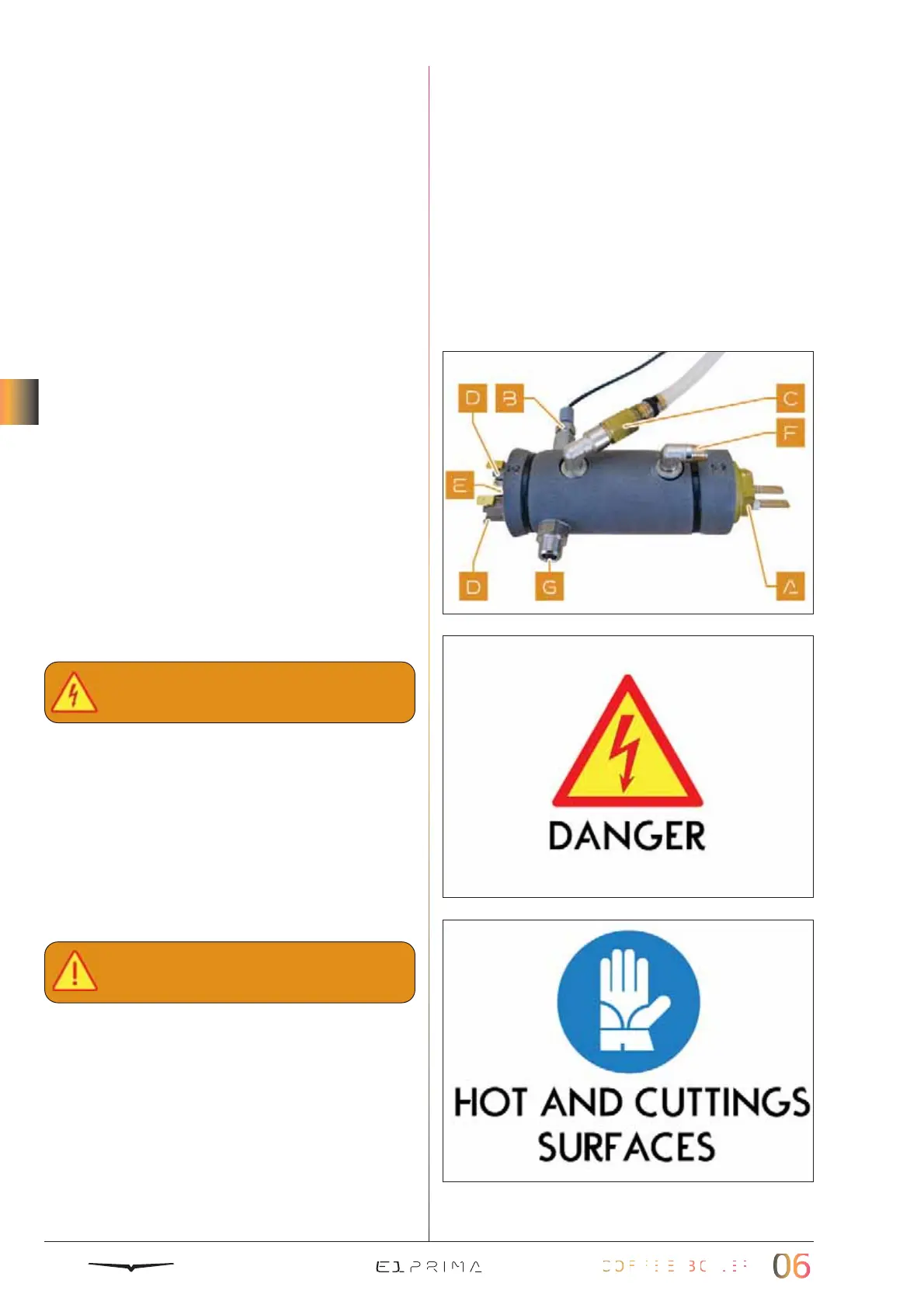

E1 PRIMA provides for the group a Stainless-
Steel coffee boiler of 0.14 litre.
The coffee boiler is part of the NEO (New
Engine Optimization), that guarantees high
performance while reducing the energy
consumption of the machine.
It is covered by thermal insulation to pre-
vent heat dispersion.
Each coffee boiler is equipped with:
A
A heating element of 600 W.
B
A temperature probe.
C
An expansion valve at 16,5 bar.
D
Two 135°C high-limit thermostats
connected in series with the heating
element.
E
A ground connection.
F
A water inlet connection fitting.
G
A water outlet connection fitting.
DANGER
Before proceeding with the operations
described in this chapter make sure
that the machine is turned OFF.
WARNING
If the machine was turned OFF recently,
protect yourself with thermal insulation
gloves.
02
02
01
01
03
03
06

Victoria Arduino EAGLE ONE PRIMA Specifications

General

Model	EAGLE ONE PRIMA
Category	Coffee Maker
Brand	Victoria Arduino
Type	Espresso Machine
Boiler Material	Stainless Steel
Voltage	220-240 V
Frequency	50/60 Hz
Steam Wand	Yes
Hot Water Tap	Yes
Group Heads	1
Material	Stainless Steel
Water Supply	Tank
Color Options	Black, White, Red
