3.9MYTHOS 2
3.6 REMOVAL OF THE
MICROSWITCH
(Timer version only)
The microswitch is placed between the filter holder
fork.

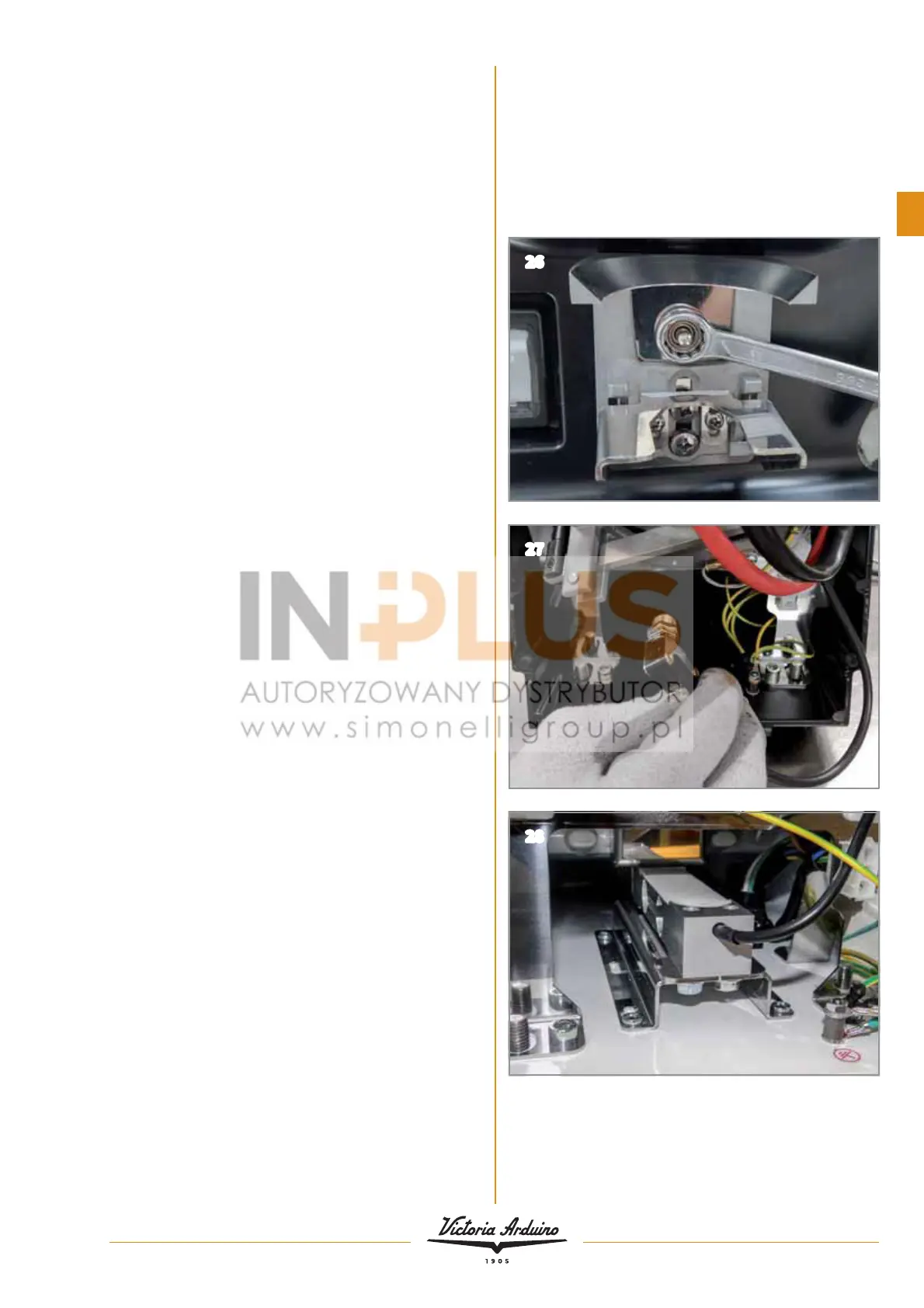

1 Remove the rear panel of the machine as
described in paragraph 3.1.
2 Use a 14 mm K
ey or socket wrench remove the
nut which keeps the microswitch.
3.7 REMOVAL OF THE
GRAVIMETRIC SENSOR
(Gravimetric version only)
To access the gravimetric sensor, is necessary to
remove the rear panel of the machine as described
in paragraph 3.1.
3 From the back of the machine pull the
microswitch by its cable.
26
27
28
