6.6 MYTHOS 2
In case of malfunctioning check:
• Alignment of the sensors (transmitter - receiver).
• Correct connection to the display board (red con-
nector).
6.5.1 REMOV
AL OF THE SENSORS

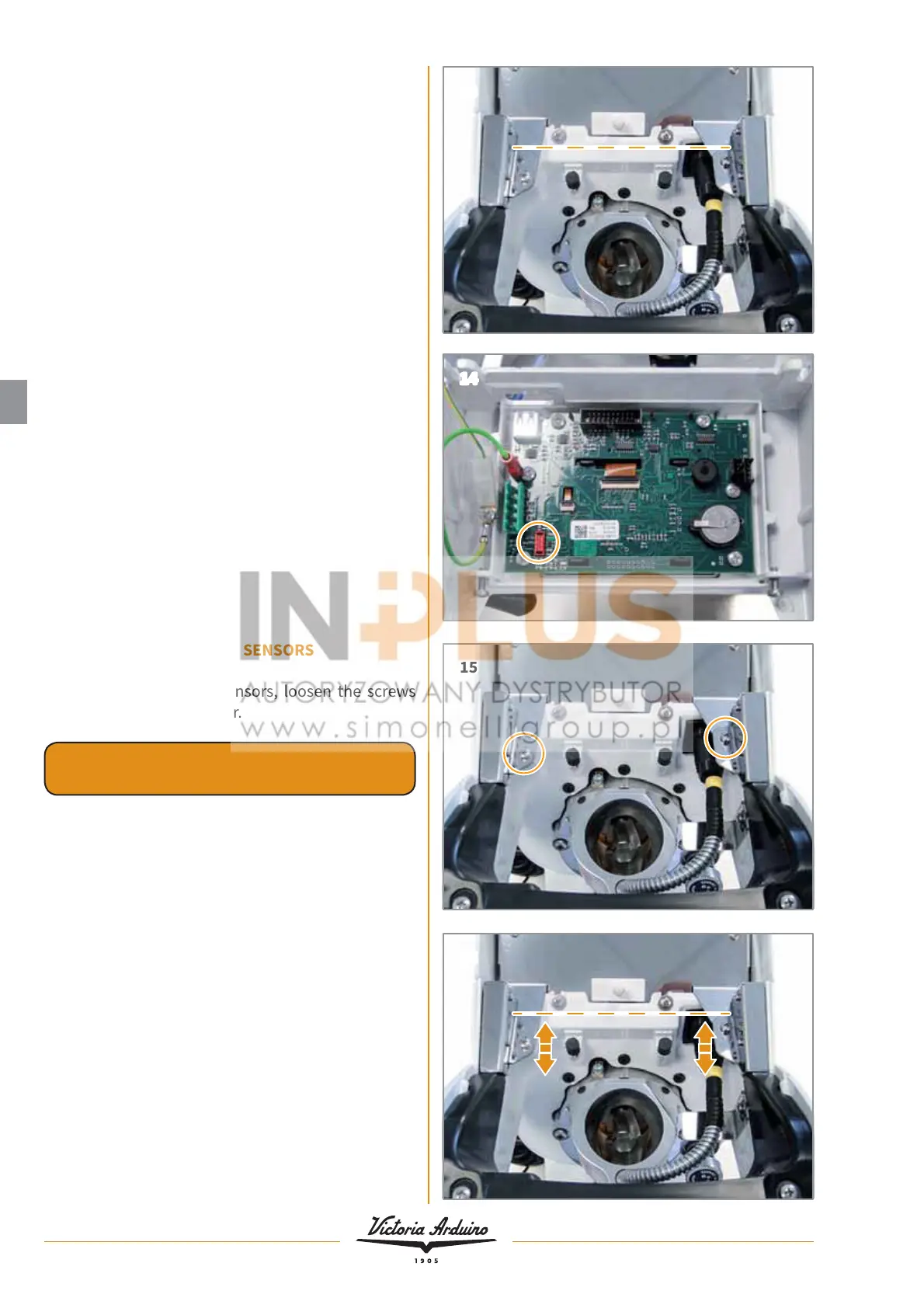

To remove the infrared sensors, loosen the screws
using a Phillips screwdriver.
NOTE
The two sensors are mirrored and must
be aligned with each other, therefore
pay due attention during the assembly
phase.
Use the slots for centering the transmitter and
receiver.
13
14
15
16
