6.3MYTHOS 2

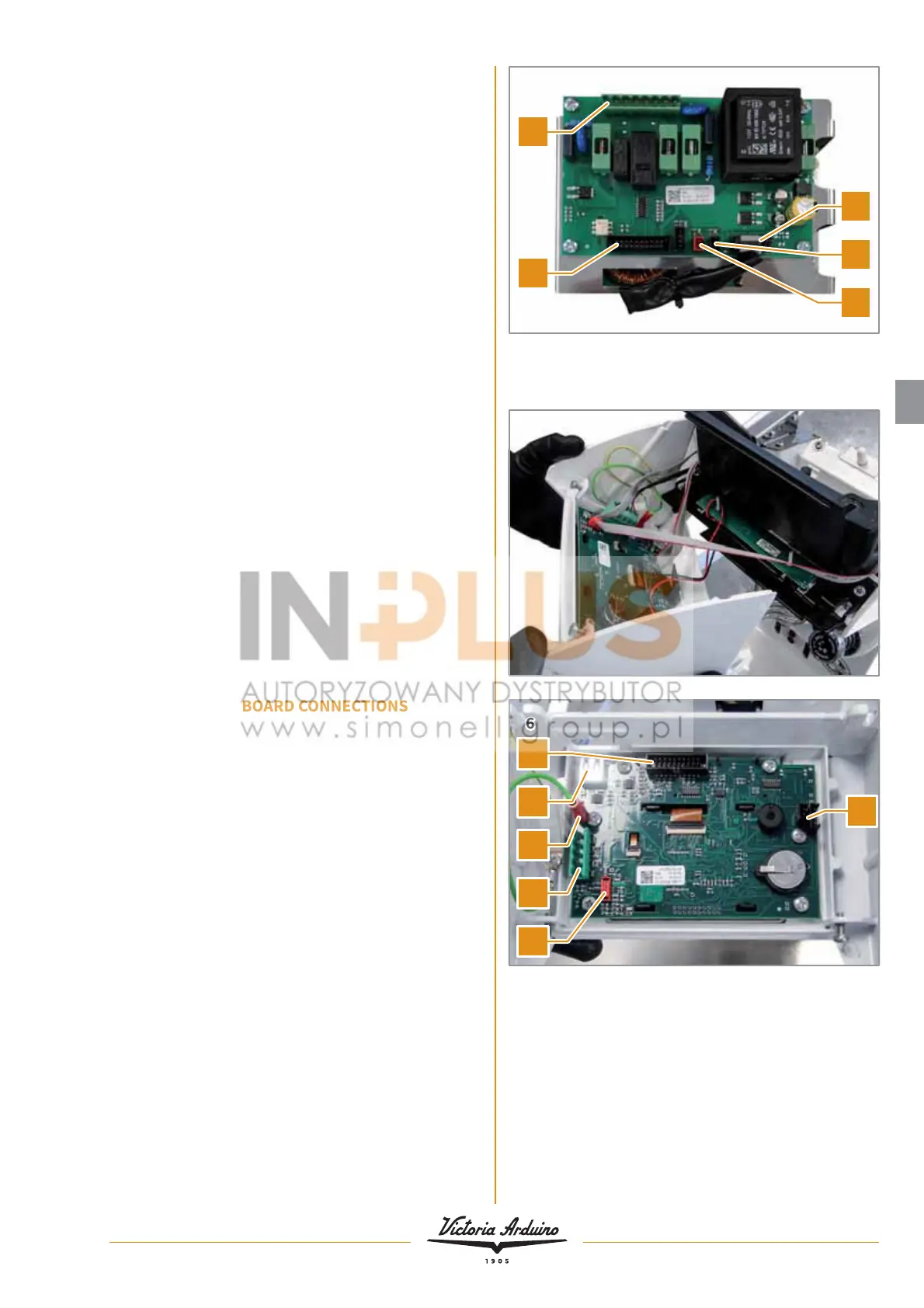

6.1.2 MAIN BOARD CONNECTIONS
1 Power IN plug
2 Main board - Inverter connection
3 Grinder motor temperature probe
4 Grinding chamber temperature probe
5 Main board - Display board connection
6.2.1 DISPLAY BOARD CONNECTIONS
1 USB port
2 Display board - main board connection
3 Optical sensor plug
4 Gravimetric sensor plug
5 Ground connection
6 LEDs connection
6.2 DISPLAY BOARD
The display board allows to manage the display
interface.
To access the display board, it is necessary to remove
its cover in the front part of the machine (paragraph
3.2).
4
3
2
1
5
4
6
2
1
3
4
5
6
5
