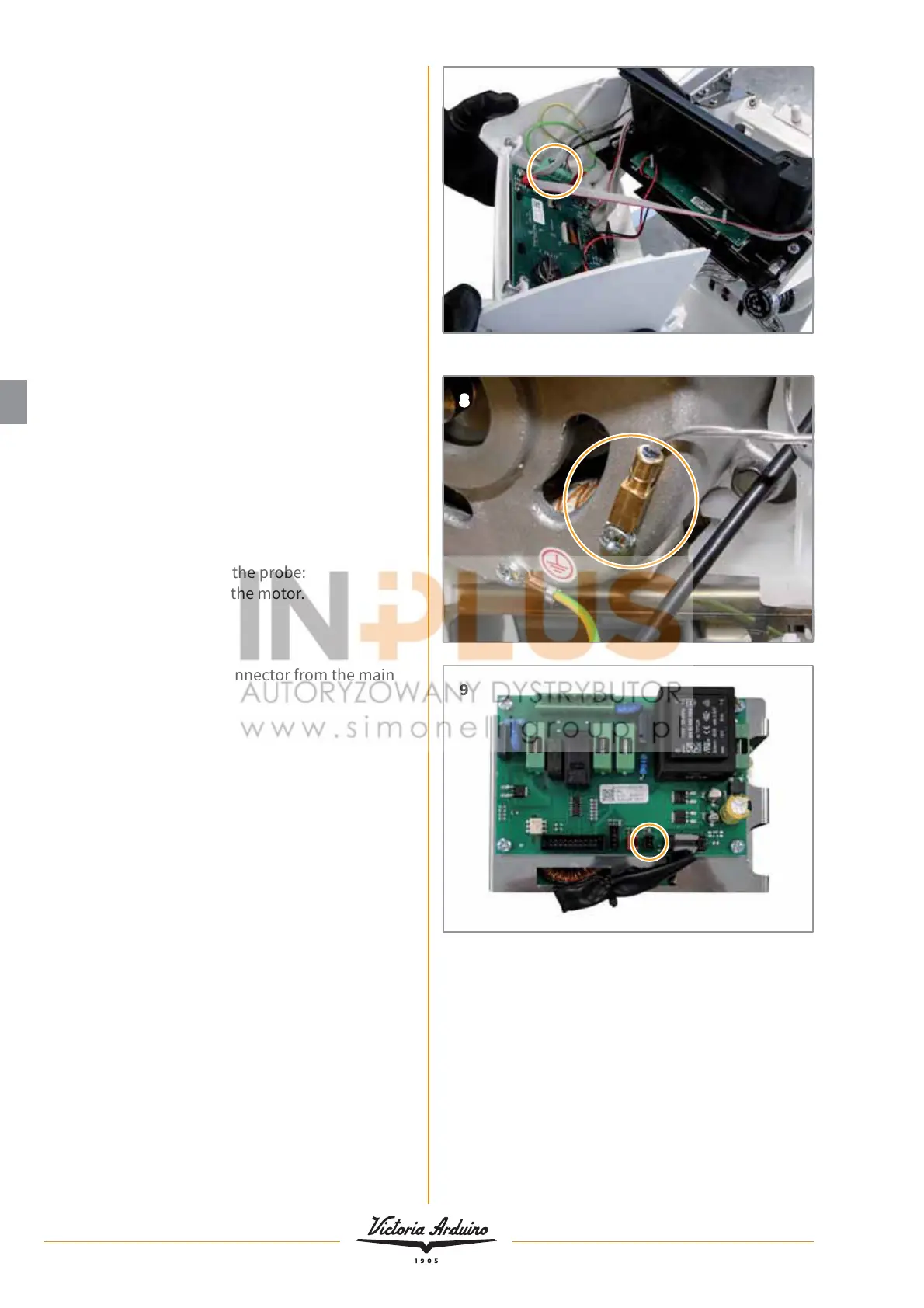

6.4 MYTHOS 2
6.2.2 GRAVIMETRIC SENSOR PLUG
The gravimetric sensor allows the correct function-
ing of the balance for the c
offee delivery.
To ensure the correct functioning, check that the
sensor is connected to the display board as shows
in the picture:
Black
White
Green
Red
6.3 GRINDER MOTOR
TEMPERATURE PROBE
This probe allows to keep the motor's temperature
constant.
In the event of overheating, it automatically switch-
es on the cooling fans.
If it's necessary to replace the probe:
1 Loosen the screw from the motor.
2 Disconnect the black connector from the main
board.
7
9
8
