Victory CLASSIC User Manual

Ce
nt
e
rlin
e

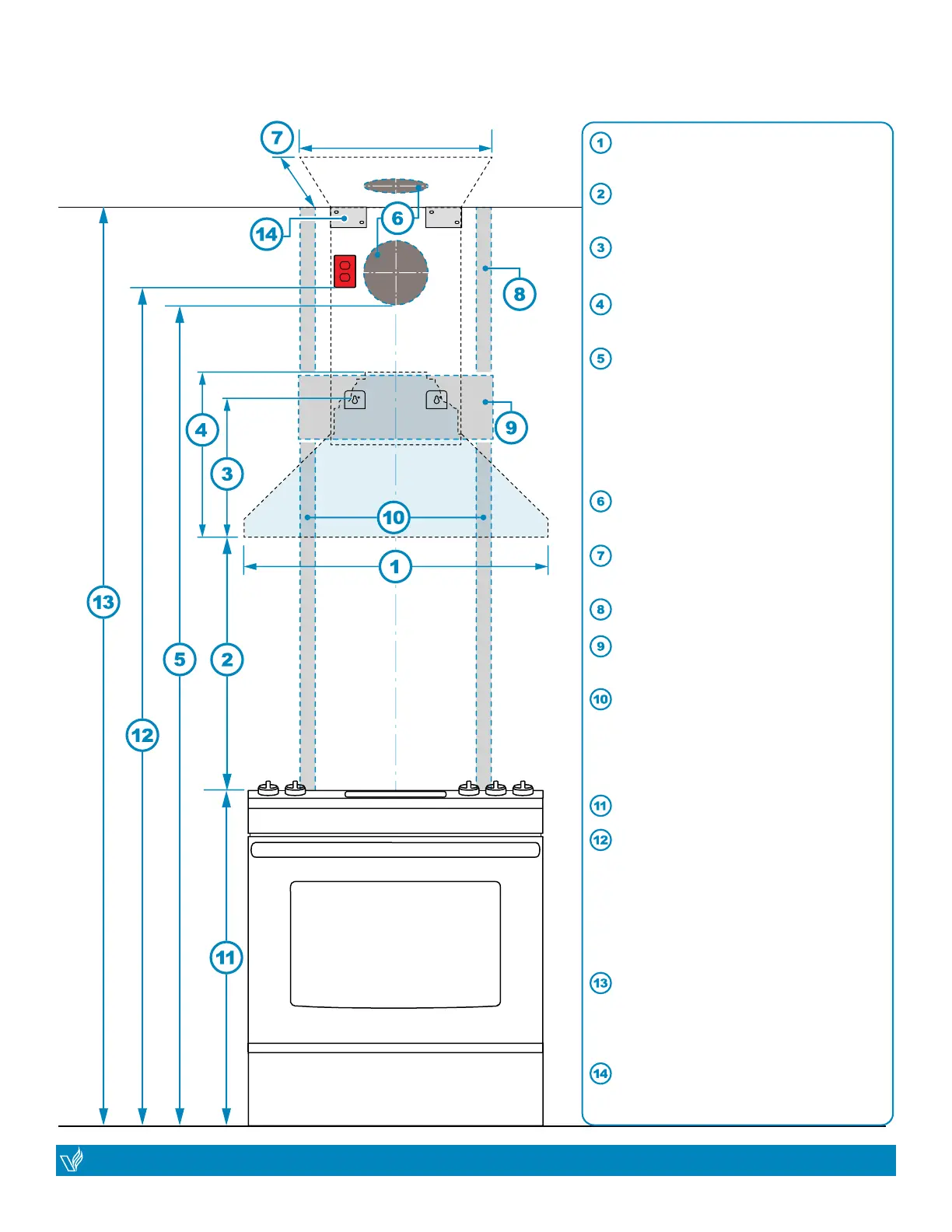

Cooking Surface
Ceiling
Available width sizes:
29 ½”
(PLANE only), 39 ½”, 35½”
Min: 24”, Max: 30”
Optimally 28”
Height from bottom of range
hood to installation holes:13 ¼”
Height of rangehood including
the 6”-Ø transition: 15¼ ”
Wall duct height
Min height: 78 ½””
from bottom of duct to ground
when range height to stove is 24”
Min height: 84 ½””
from bottom of duct to ground
when range height to stove is 30”
Preferred areas to install 6”-Ø
wall or roof vent ducting
Chimney length and width:
10” x 7” (Height will vary)
Typical stud behind wall setup
Cut out drywall for plywood
brace support
If needed, drill holes at the rear
panel of the range hood in order
to mount wood screws (not
included) in to the studs for
additional support.
Typical stove top height: 36”
120v Power Outlet location:
Min height: 78”
from power outlet to floor when
range height to stove is 24”
Min height: 85”
from power outlet to floor when
range height to stove is 30”
Ceiling height: Typical 96”, Max
108”. For higher ceilings, please
contact us to purchase an
extension
Install area for metal bracket
which holds up the chimney
NOTE:NOTE: DO NOT USE threaded DO NOT USE threaded
drywall anchors to support the drywall anchors to support the
hood when mounting the hood hood when mounting the hood
on sheetrock. Mounting the hood on sheetrock. Mounting the hood
on wall studs or lumbars is highly on wall studs or lumbars is highly
recommended.recommended.
*Due to dierent ceiling height congurations, *Due to dierent ceiling height congurations,
recommended height may not be applicable.recommended height may not be applicable.
VICTORY range hoods
| CLASSIC / PLANE
12
VICTORY range hoods
CLASSIC / PLANE |
13
ROUGH
-
IN

Victory CLASSIC Specifications

General

Depth	50 cm
Material	Stainless Steel
Number of Motors	1
Lighting	LED
Filter Type	Aluminum
