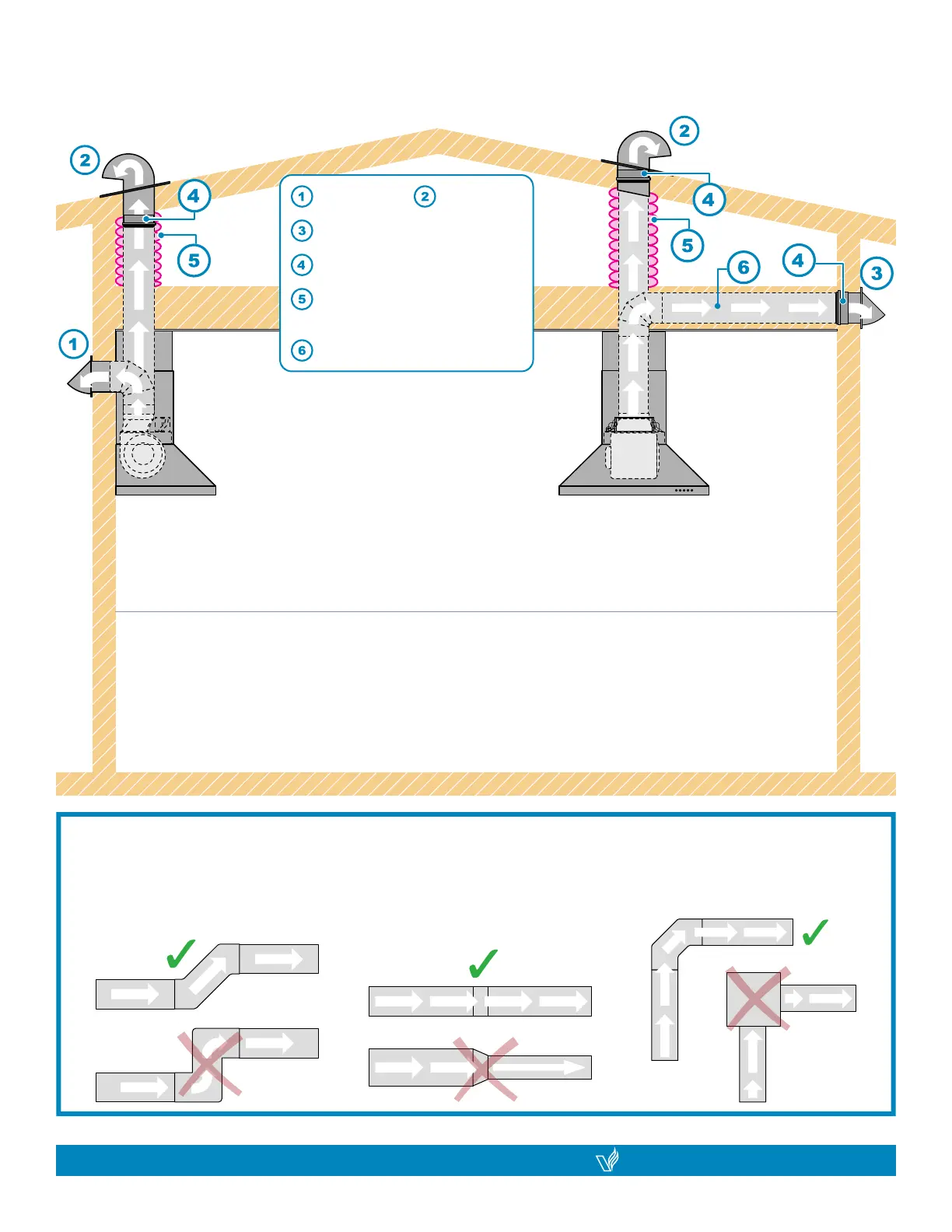

SIDE VIEW FRONT VIEW
Wall vent Roof vent
Wall vent (alongside joist)
Backdraft damper
Wrap insulation required
for cold climates
6”- Ø for all ducting
• This range hood is factory set for
venting through the roof or wall.
• Duct work can terminate either
through the roof or wall. To vent
through a wall, a 90° elbow is
needed.
IMPORTANT:
• NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces,
ceiling, attics or garages. All exhaust must be vented to the outside.
• Use metal/aluminum duct work only.
• Fasten all connections with sheet metal screws and tape all joints with certied Aluminum
Tape.
• Use caulking to seal exterior wall or roof opening around the cap.
• Colder climates require wrapping insulation around the ducts and optional blowers.
• The system must have a Backdraft Damper.
DUCT VENTING
(a) Avoid the use of sharp
elbows. Use 45 degrees
instead, if possible.
(b) DO NOT use REDUCERS.
Keep the size of the duct the
same, as per the manual. A
reducer will reduce the CFM of
the hood and increase the noise.
(c) DO NOT use plenum boxes.
Boxes create turbulence and make
the hood inecient. Use a smooth
elbow to guide the air outdoors.
VICTORY range hoods
| CLASSIC / PLANE
18
VICTORY range hoods
CLASSIC / PLANE |
19
VENTING METHODS
