Replacing the GU10 120V Light Bulb Using the Inner Ring Opener:
a. Should the light bulb burned out due to age and prolonged use, replace with following: USA/Canada: Halogen
35W Type GU10 120V. USA/Canada: LED 3W 120V (both are available at your local hardware store
b. Make sure the range hood is unplugged or turn OFF breaker
c. Make sure the lights are cool to touch, carefully align the arrow on the inner ring with the arrow on the outer
ring where it says OPEN with the Inner Ring Opener as shown in Figure (1)
d. The inner ring will loosen and the light bulb will be available for removal as shown in Figure (2)
e. Install a new light bulb and reverse the steps
f. Turn ON breaker and range hood to test for operation.

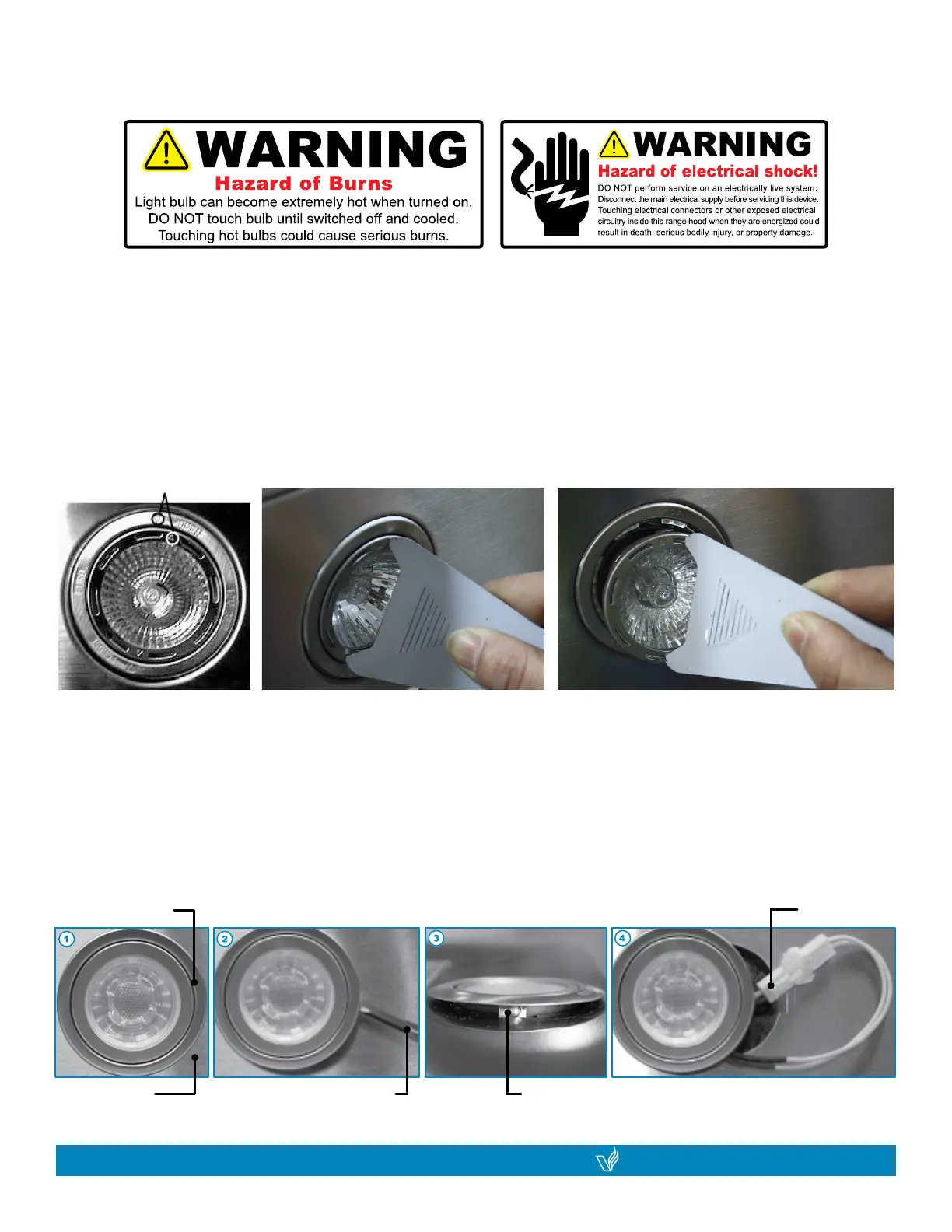

Align arrows on
both rings
Figure (1) Figure (2)
Replacing LED 3W 120V Light Fixture:
1. Make sure the range hood is unplugged or turn OFF breaker and the lights are cool to touch.
2. Place a at-head screwdriver between light housing and hood body
3. Gently pry up the light housing and search for the metal clip
4. Apply force to the metal clip and pull out the light xture
5. Disconnect the power cable and discard the old light xture
6. Reverse the steps to install a new halogen light xture
7. Turn ON breaker and range hood to test for operation.
Light Housing Power Plug
Hood Panel Flat-head Screwdriver Metal Clip
NOTE: For all other inquiries, please contact Victory Range Hoods.
