Victory CLASSIC User Manual

BOTTOM VIEW
SIDE VIEWFRONT VIEW
TOP VIEW
12”
12 ¾”
Chimney
height
adjustable
from 18”
to 30 ½”
1 ¾”
10 ¼”
11 ⅜”
19 ¾”
13”
11 ½”
Ø 6”
Available sizes: 29 ½” and 35 ½”
Height from housing of range
hood to top of transtion: 6”
Height from bottom of range
hood to top of transtion : 16”
Height from bottom of range
hood to installation holes:
13 ¾”
VICTORY range hoods
| CLASSIC / PLANE
10
VICTORY range hoods
CLASSIC / PLANE |
11

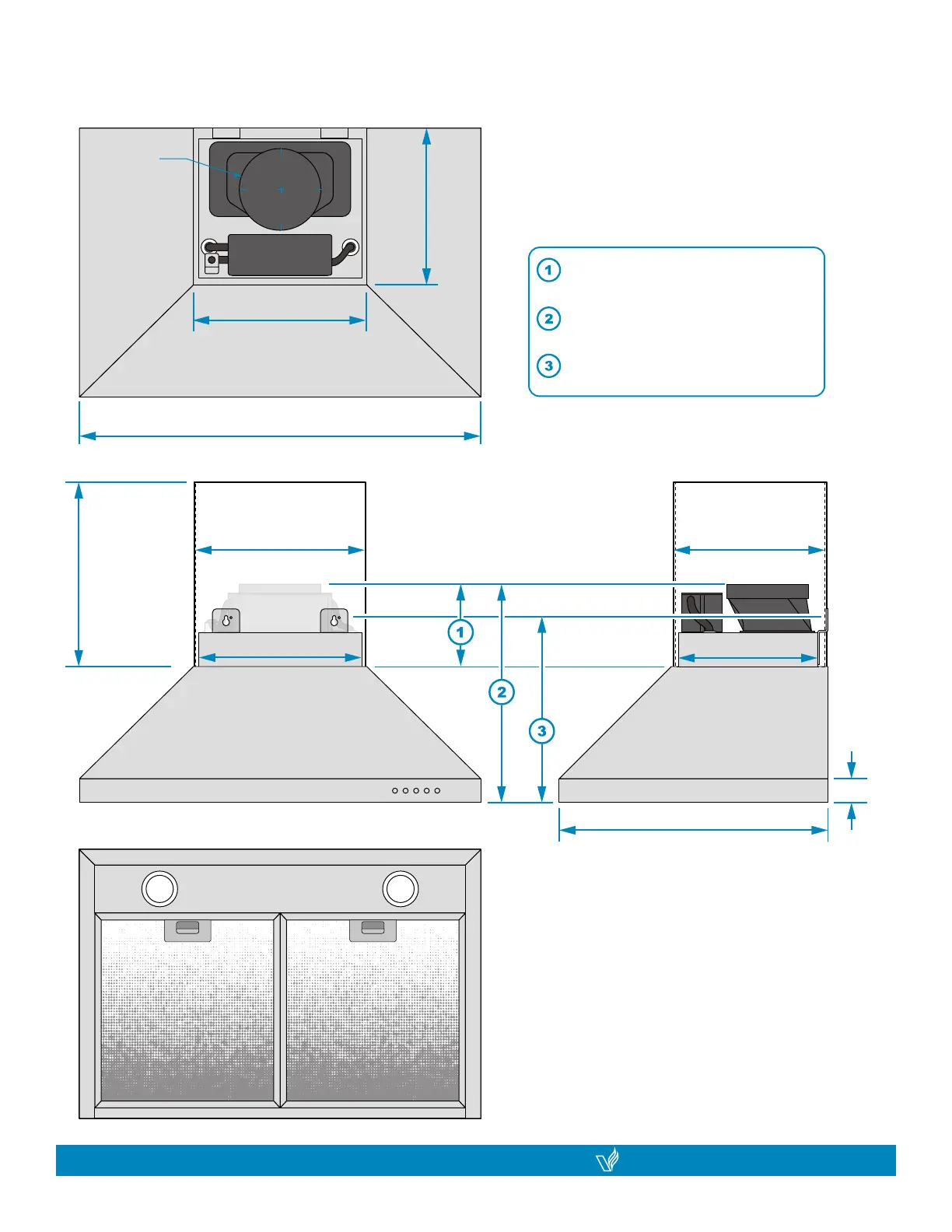

DIMENSIONS
(
CLASSIC
)

Victory CLASSIC Specifications

General

Depth	50 cm
Material	Stainless Steel
Number of Motors	1
Lighting	LED
Filter Type	Aluminum
