Model X Y
STAR-36 33 ⅛” 19 ¾”
STAR-42 39 ⅛” 19 ¾”
STAR-48 45 ⅛” 19 ¾”
Y
X
BACK
VIEW

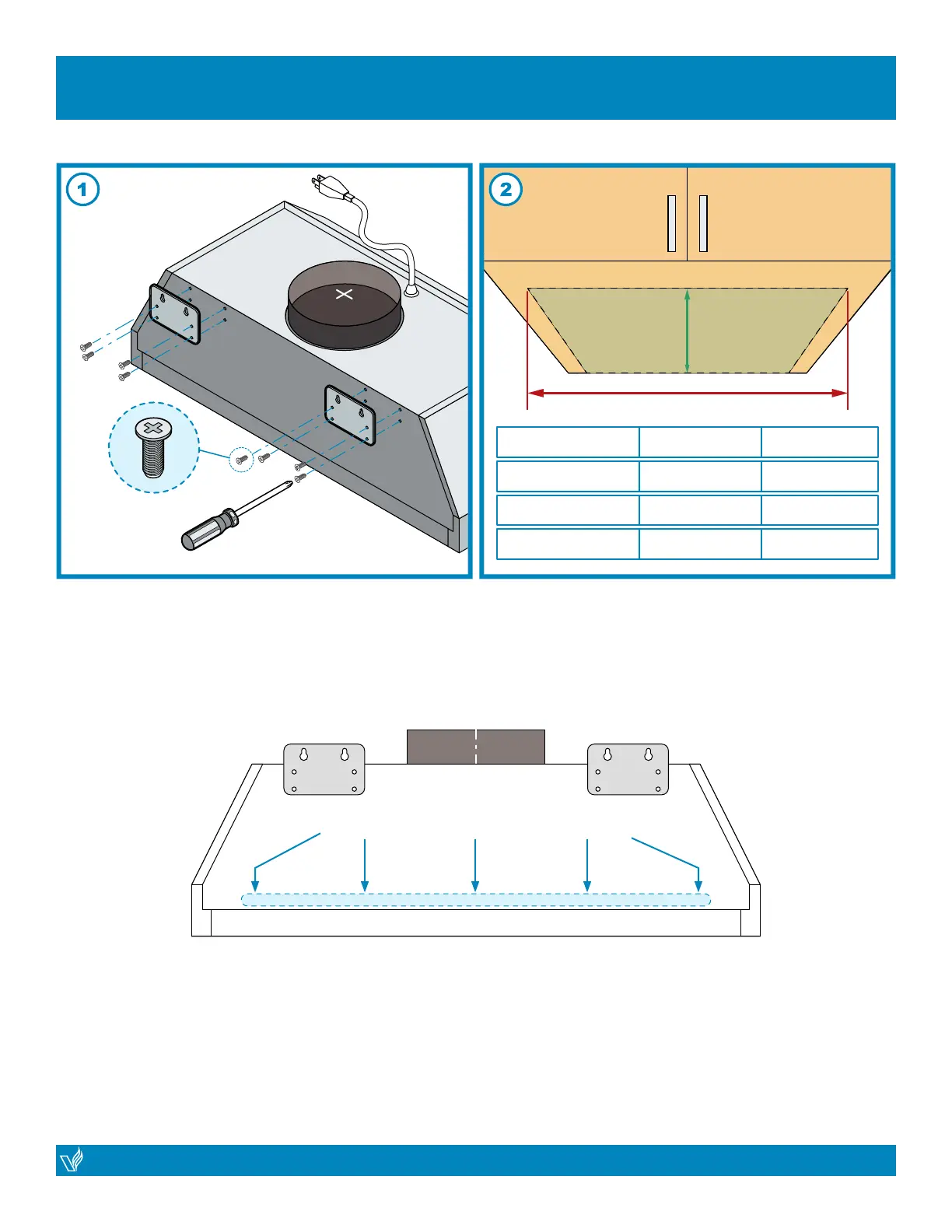

(1) Fasten mounting brackets using M4-4mm screws
on to the back of the range hood. NOTE: Mounting
Brackets not required for Closed Box otpion.
Mounting Brackets not required for Closed Box otpion.
(2) Cut an opening in the bottom of the cabinet, using
the dimensions shown in the table above.
Possible placement of pre-drilled installation holes
NOTE: DO NOT USE threaded drywall anchors to support the hood when mounting the hood on sheet
rock. Mounting the hood on wall studs or lumbars is highly recommended.
For safety purposes of a secure install, pre-drilling mounting holes may be
needed through the back of the hood. You will be able to identify where to
place holes when you nd the studs behind the wall to fasten to.
VICTORY range hoods
| STAR
14
VICTORY range hoods
STAR |
15
PRE
-
INSTALL
(
Continued
)
To Next Page
